Panasonic MN34112 Manual

Waterproof up to, 40m full hd video, 4k 14mp camera, wifi.
Hide thumbs


Waterproof up to
40m Full HD video
4K 14MP camera


   Related Manuals for Panasonic MN34112

   Summary of Contents for Panasonic MN34112

  • Page 1

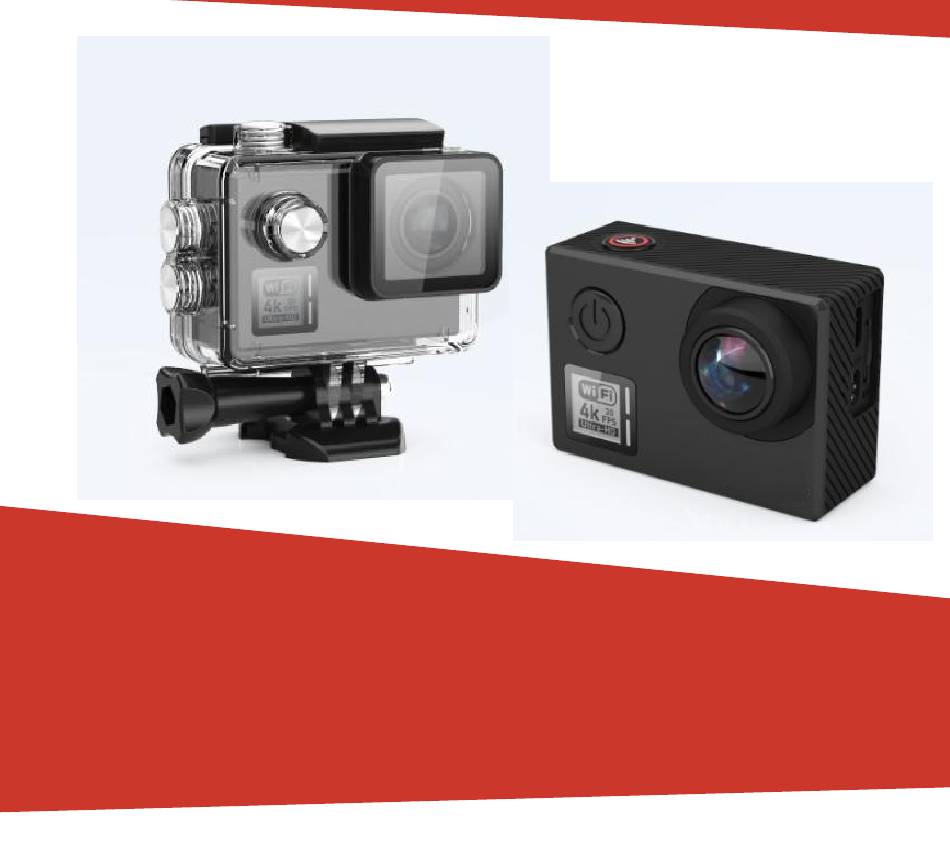

    ActionCamera Waterproof up to 40m Full HD video 4K 14MP camera WiFi...

  • Page 2

    Warning 1.It is a high-precision product, please do not fall orcrash. 2.Please donot expose theunitto strongmagneticobjects,suchasmagnetandeletricalmotor 3.Never leave the products to high temperatures and directsunlight. 4.PleasechoosebrandedMicroSDcard.Neutralcardsarenotquaranteedtoworknormally.5.Pleased onotplaceMicroSDcardnearstrongmagneticobjectstoavoiddataloss. 6.While it is charging,keep the product out of children’sreach. 7.Keep the devices in cool,dry, and insulatedplaces. Preface Thisproductisahigh-definitiondigitalmotionvideorecordingdevicetailoredtomarketdemand.Ithasavarietyofindustry- leadingfeatures,including:digitalvideorecording,photoshooting,audiorecording,andperfectforvehicle...

  • Page 3

    Product Schematic OK /WIFI Microphone Micro Power /Mode USBSlot SD CardSlot WIFIIndicator HDMI Port OperatingIndicator Speaker Lens...

  • Page 4

    Operating Indicator2 ChargingI ndicator Down Operating Indicator3 Screen...

  • Page 5

    Waterproof coverSchematic Waterproof case doorlock OK /WIFI Lens Down Power /Mode...

  • Page 6

    Accessories 配件图 Waterproofcase Bicyclestand mount1 mount2 Fixedmount Switchsupport1 Switchsupport2 Switchsupport3 connector Charger Helmetmount Ribbon 3M adhesivetape Wirerope USBcable Wiper backcover Usermanual...

  • Page 7

    Operation 1.Inserting Micro SD Card Note: Please choose branded Micro SD card and formatiton computer, before use. Neutral cards are not guaranteed to work normally. 2. Installing and removing battery A. The battery door has been locked when the lock catch is in the ”LOCK”, push the lock catch to“ ”, then to “...

  • Page 8: Specifications

    You can also replay by mobile phones via WIFI. Note: When camera crashs formal function, you can detach battery and install again, it will go back to normal Specifications 1/2.3” CMOS 14MP (Panasonic MN34112) Type Image Effective Sensor Approx.

  • Page 9

    Equivalent Modes Auto /Daylight / Shade/Tungsten Light / White Balance Fluorescent/Underwater 4K 3840x2160 P30 Video resolution 4K/30P 2.7K 2704x1520 P30 1080P: 1920x1080 P60/P30 720P: 1280x720 P120/P60/P30 Audio Mic and Speaker (Mono) Equipped Image Stabilization On/Off Remote control Remote control is about 8 meters from the maximum Remote control pairing Select Remote Pair Internal memory: no internal memory...

  • Page 10

    14M(4320x3240) 10M (4320x2430) 8M(3840x2160) Image Size 5M(2592x1944) 14MP 2M(1920x1080) HDMI: Support 1920x1080 P60, output With CEC Video Output Composite: NTSC/PAL OFF /3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Time Lapse Function Seconds Self Timer :OFF / 3 Seconds / 5 Seconds / 10 Seconds / 30 Seconds / 60 Seconds Burst Rate :OFF / 3 P/s / 7 P/s / 15 P/s /30P/s Photo Functions...

  • Page 11

    TV Mode : NTSC / PAL Light Freq. : 50HZ / 60HZ Screen_Off : OFF / 30 Seconds / 1 Min. / 2Min. WiFi LED: ON / OFF Sharpness : Strong / Noraml / Soft Scene Normal / Flashi/Night/Sports/Landscape/Portrait/Sunset Mode : ISO :...

  • Page 12

    Format YES/NO Default YES/NO Setting Version : AC530 V1.0 Language English / Simple Chinese/ Traditional Chinese Interface USB 2.0 : Recharging/File Transfer Power Source Li-ion rechargeable Battery 1050mAH Car power adaptor, Mount, USB Cable, HDMI Cable, AV Accessories Cable Dimensions (W*H*D) L: 61mm, W:42mm, H:23 mm(with lens part will be 33mm) Weight about 78.5g(With battery)

  • Page 13

    FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
