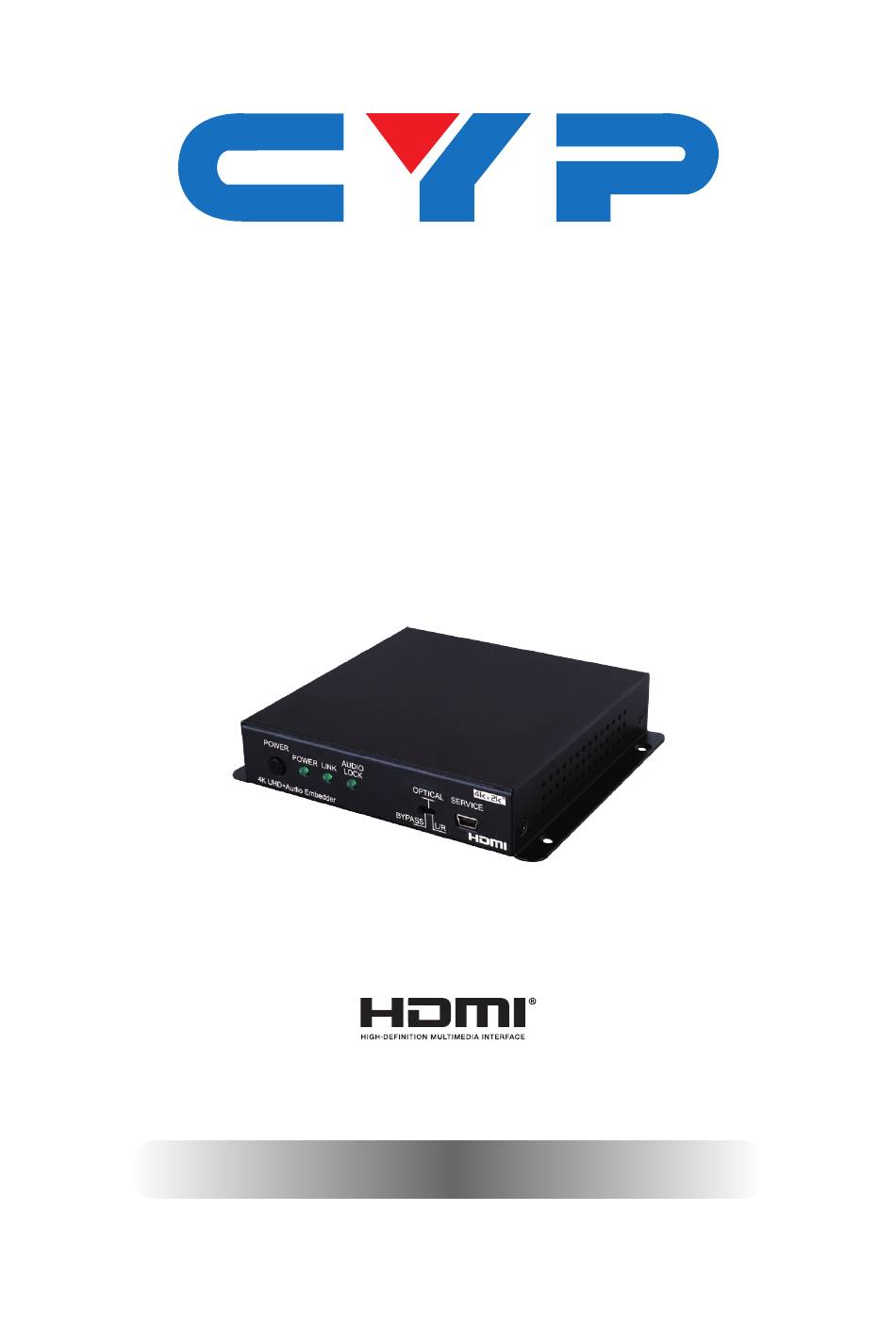

- Page 1 CPLUS-V11PI 4K UHD HDMI Audio Inserter Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Virtual COM Port Control ......4 6.4 EDID Commander ........ -
Page 6: Introduction
1. INTRODUCTION This HDMI Audio Inserter is designed to insert an external audio signal (analog or digital) into any HDMI or DVI source signal to generate an HDMI compliant output with new audio. Both stereo LPCM 2.0 and multi-channel Bitstream audio is supported for insertion and the preferred source can be selected with a simple switch. -
Page 7: Features
5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD support • DVI 1.0 compatible with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant • Supports HD resolutions up to 3840×2160@60 Hz (4:4:4, 8-bit) & 4096×2160@60 Hz (4:4:4, 8-bit) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER AUDIO OPTICAL SERVICE POWER LINK LOCK BYPASS 4K UHD+Audio Embedder POWER: Press this button to power the unit on or off. POWER: This LED will be lit when the unit is receiving power. Note: Press and hold the Power button for 3 seconds (until the LEDs begin flashing) to perform a factory reset. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO IN HDMI IN HDMI OUT DC 5V OPTICAL HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output (LPCM up to 7.1, Bitstream, HD Bitstream). - Page 10 COMMAND DESCRIPTION & PARAMETERS SOURCEDET Show the current input source detection state. SINKINFO Show information about the currently connected display. HDCPIN N1 Set the HDCP handling mode for the HDMI input. Available values for N1: [Follow Input] [Follow Output] [Apple Mode] HDCPIN ? Show the current HDCP handling mode.
-
Page 11: Edid Commander
Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. 6.4 EDID Commander (1) This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. -
Page 12: Edid Controller Tab
6.4.1 EDID Controller Tab • Mode Select: The currently selected EDID is displayed here and can be changed by selecting from any of the available EDID options. - There are six pre-defined “Internal” EDIDs, an “External” EDID which passes the EDID from the connected display, and a “User” EDID which is user-replaceable. -
Page 13: Edid Creator Tab
- Analysis: To analyze any EDID stored within the unit, select the EDID to view from the dropdown and click on the “ Analysis” icon. 6.4.2 EDID Creator Tab • Select: Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “... -
Page 14: System Tab
support options. - Others: This tab contains options for supporting 3D and defining the CEC Address. Once the user is finished editing or creating an EDID it can be saved to a *.bin file locally or uploaded directly to the unit using the “ Save”... -
Page 15: Connection Diagram
7. CONNECTION DIAGRAM Game Console 4K Media Player HDMI Optical Stereo Input Input Input Power Supply AUDIO IN HDMI IN HDMI OUT DC 5V OPTICAL Virtual COM Port Enabled PC HDMI Output UHDTV... -
Page 16: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×Optical (S/PDIF) 2×RCA (Stereo) Output Port 1×HDMI Control Interface 1×USB Mini-B HDMI Cable Length 10m (1080p@60Hz, 12-bit) 3m (4K@60Hz, 4:4:4, 8-bit) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model:... -
Page 17: Video Specifications
8.2 Video Specifications Standard Resolution Support Input Output 640×480 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1280×720 50, 60 1280×768 60, 75, 85 ... -
Page 18: Audio Specifications
8.3 Audio Specifications Input/Output Audio Analysis: Input Connector Measurement HDMI Optical Analog Level 0dBFs 0dBFs 2Vrms Frequency 1kHz 1kHz 1kHz Output Connector Measurement HDMI Output Level 0~−1dB THD+N <0.01% Frequency ±1dBFS Response >80dB Crosstalk <−80dB Audio Sampling Rates: HDMI 32, 44.1, 48, 88.2, 96, 176.4, 192kHz (Passthrough) S/PDIF 32, 44.1, 48, 88.2, 96, 192kHz (Passthrough) -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Three-Dimensional Audio Return Channel Consumer Electronics Control Communication Digital-to-Analog Converter Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Light-Emitting Diode LPCM Linear Pulse-Code Modulation Personal Computer S/PDIF Sony/Philips Digital Interface Format... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
