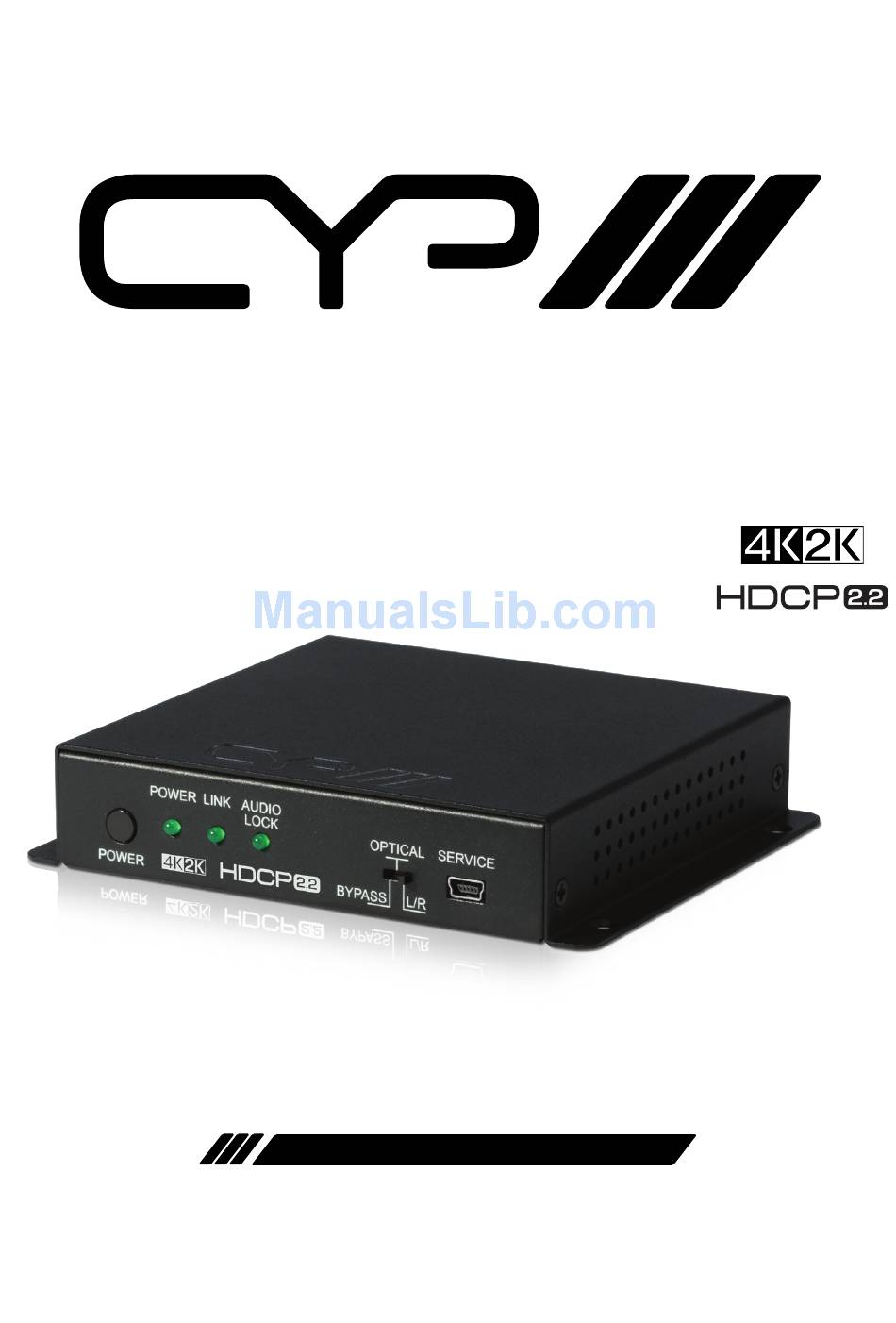

- Page 1 AU-11CA-4K22 HDMI Audio Embedder with built-in Repeater (4K, HDCP2.2, HDMI2.0) OPERATION MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..............1 2. Applications ............... 1 3. Package Contents ............ 1 4. System Requirements ..........1 5. Features ..............2 6. Operation Controls and Functions ......3 6.1 Front Panel ............3 6.2 Rear Panel ............. 4 6.3 Virtual COM Port Settings &... -
Page 5: Introduction
1. INTRODUCTION This 4K UHD+ Audio Embedder is designed to insert an external audio signal (analog or digital) into any HDMI or DVI (with HDMI to DVI adaptor) source signal to generate an HDMI compliant output with new audio. Both stereo LPCM 2.0 and multi-channel bitstream audio is supported for insertion and the preferred source can be selected with a simple switch. -
Page 6: Features
5. FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD+ support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant • Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit) •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LINK AUDIO POWER LINK AUDIO LOCK LOCK OPTICAL SERVICE OPTICAL SERVICE BYPASS POWER BYPASS POWER POWER & POWER LED: Press this button to power the unit on or off. The LED will be lit when the unit is receiving power. Note: Press and hold the Power button for 3 seconds to perform a factory reset. -
Page 8: Rear Panel
6.2 Rear Panel AUDIO IN HDMI IN HDMI OUT DC 5V OPTICAL HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to HDMI TVs, monitors or amplifi ers for digital video and audio output. - Page 9 Commands: Command Name Description Parameters SET UNIT POWER OFF NONE SET UNIT POWER ON NONE GET POWER STATUS NONE SOURCEDET SHOW INPUT NONE INFORMATION SINKINFO SHOW SINK NONE INFORMATION HDCPIN SET/SHOW INPUT HDCPIN N, N=1~3, N=? HDCP STATUS (STATUS) 1:FOLLOW IN 2:FOLLOW OUT 3:APPLE MODE ECHO...
-
Page 10: Edid Manager
6.4 EDID Manager This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID fi le stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. - Page 11 The 6 Internal EDIDs are: 1. FHD (1080p60Hz) with LPCM 2.0 2. FHD (1080p60Hz) with LPCM 7.1 & Bitstream 3. 4K UHD+ (4K@30Hz) with LPCM 2.0 4. 4K UHD+ (4K@30Hz) with LPCM 7.1 & Bitstream 5. 4K+ UHD (4K@60Hz, 4:4:4, 8-bit) with LPCM 2.0 6.
- Page 12 EDID Creator Tab Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a .bin fi le (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyzer’s edit option.
- Page 13 The following tabs provide access to a wide range of EDID information which can be edited: Descriptor: This tab allows for the editing of various description • and information fi elds within the EDID fi le such as Manufacturer Name, Monitor Name, etc. PC Timing and SD/HD/UHD: These tabs allow for the selection •...
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM PC/Notebook Blu-ray Player DVD Player HDMI Digital Optical Analog Stereo Input Audio Input Audio Input Power Supply AUDIO IN HDMI IN HDMI OUT DC 5V OPTICAL HDMI Output AV Receiver HDMI Output UHDTV... -
Page 15: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 18Gbps (600Mhz) Input Ports 1 x HDMI, 1 x Optical S/PDIF (Digital Audio), 2 × RCA (Analog Audio), 1 x Mini-USB (service & control only) Output Port 1×HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical S/PDIF Audio 32KHz, 44.1Khz, 48Khz, 88.2Khz, 96Khz, Sampling Rate... -
Page 16: Acronyms
Relative Humidity 20~90% RH (non-condensing) Power Consumption 3.78w *Note: HDMI cable distance can be impacted by the materials and design of the cable used. The use of “Premium High Speed HDMI” cables is highly recommended. 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control COAX Coaxial... - Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
