Summary of Contents for CYP DCT-37
-

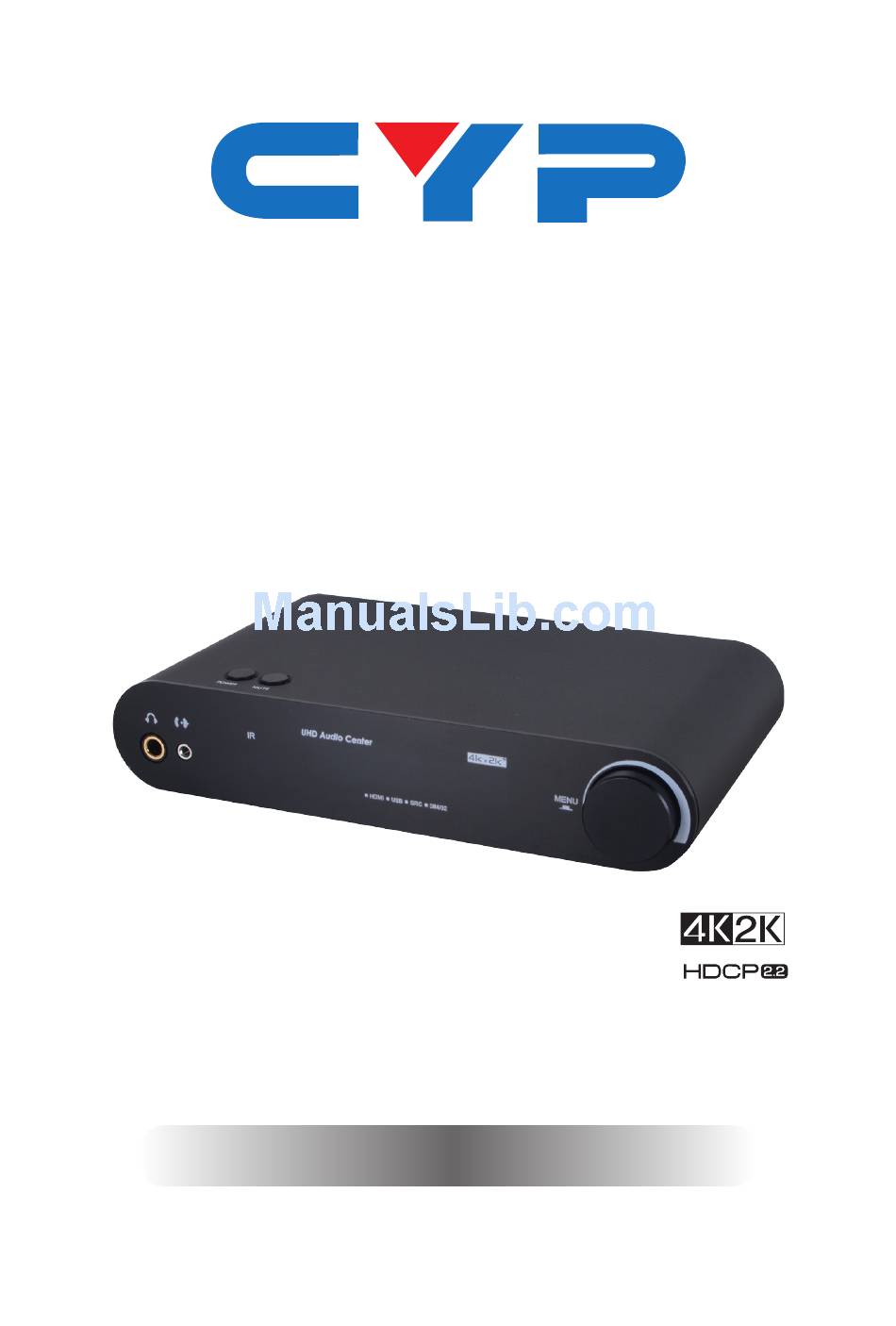

Page 1: Operation Manual
DCT-37 UHD Audio Center Operation Manual Operation Manual... -
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Top Panel ..........5 6.4 Remote Control ........6 6.5 OLED Menu ........7 7. -
Page 6: Introduction
1. INTRODUCTION The UHD Audio Center is designed to allow multiple analog/digital audio sources to be controlled, switched and output to a variety of analog/digital audio equipment. With video supports up to 6G at 4K2K and audio sampling rate converter up to 384KHz this device has an unbeatable feature you can find in the market. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS Input source equipment such as CD /DVD player or computer via USB, optical or analog stereo output to amplifier or speaker with analog stereo output. 5. FEATURES Digital • Supports Coaxial, Optical, USB and 4 HDMI inputs •... -
Page 8: Operation Controls And Functions
• 6.3mm headphone output Misc • Control by remote control and on-panel wheel • Direct power and mute button on unit • High viewing angle OLED display 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel UHD Audio Center Coaxial -20.0 dB MENU MENU 44.1K... -
Page 9: Rear Panel
6.2 Rear Panel HDMI IN HDMI OUT DC 5V COAX. OPT. COAX. OPT. XLR OUT XLR OUT DC 5V: Plug the 5V DC power adaptor included in the package into the unit and connect the adaptor to an AC outlet for power supply. -
Page 10: Top Panel
audio allows for the use of long cables while reducing susceptibility to external noise. 6.3 Top Panel POWER MUTE POWER: Press this button to switch on the device or turn it to standby mode. MUTE: Press this button to mute all volume instantly. -
Page 11: Remote Control
6.4 Remote Control POWER: Press to turn the unit power on or set to standby mode. MENU VOLUME MENU: Press the key to enter OSD menu, use V+/V- to go up RETURN MUTE and down between the menu selections, press again to enter SOURCE HDMI 1 COAX. -
Page 12: Oled Menu
6.5 OLED Menu MAIN MENU SUB MENU DESCRIPTION DEFAULT Source In HDMI 1 In Input selection. HDMI 1 HDMI 2 In HDMI 3 In HDMI 4 In Coaxial In Optical In USB In Line In Return SRC Set Bypass Set output SRC Bypass frequency 384 kHz... - Page 13 MAIN MENU SUB MENU DESCRIPTION DEFAULT Display Set Timeout 5s Set LCM display Timeout 15s time Timeout 10s Timeout 15s Return Headphone Vol Fix Level Set headphone Volume Level volume mode Volume Level Return Firmware Version Show firmware version Update? Update firmware Return...
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Headphones Headphones Output UHD Audio Center Coaxial -20.0 dB MENU MENU 44.1K -> 44.1K 384/32 Line-level Input Smartphone or MP3 Player UHDTV Satellite Receiver Set-top Box Blu-ray Player Games Console HDMI Output HDMI Inputs XLR Balanced Audio Output Power HDMI IN HDMI OUT... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600 MHz/18 Gbps Input Ports 4×HDMI, 1×Coaxial, 1×Optical, 1×USB (Type B), 1×3.5mm Phone Jack (Line-in) Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 2×RCA (Analog Stereo), 1×XLR (Balanced Audio), 1×6.3mm Phone Jack (Headphone) HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV420) Digital Audio I/O Format LPCM 2CH XLR Balanced Audio I/O... -
Page 16: Audio Specifications
8.2 Audio Specification Input Crosstalk Output Frequency Level/Freq. Output Level THD+N Response >90dB <-90dB HDMI HDMI -0.000 0.00001% ±1 dBFS >141dB <-110dB 2Vrms*/1kHz Optical Optical -0.000 0.00001% ±1 dBFS >141dB <-164dB 2Vrms*/1kHz Coaxial Coaxial -0.000 0.00001% ±1 dBFS >141dB <-163dB 2Vrms*/1kHz Analog Line Analog(L/R) - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
