ReelCraft WC7000 Operating Instructions Manual

Operating Instructions

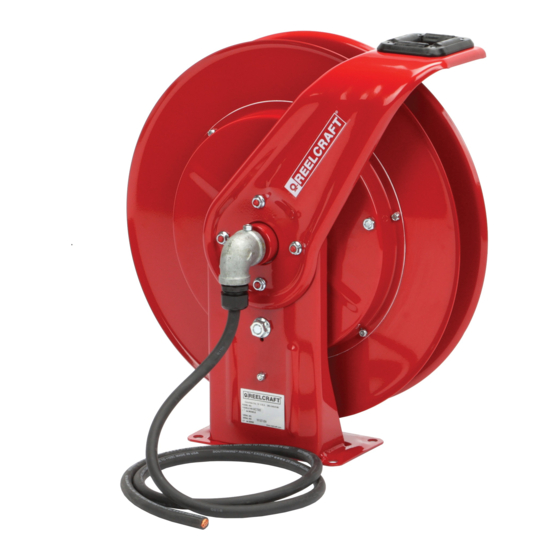

Series WC7000 Welding Cable Reels
Model Numbers:
WC7000 WCH7000
Dimensions
Four 1/2" diameter mounting holes
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that only a qualified electrician installs/services this
equipment.
• Ensure that power supply voltage does not exceed maximum
voltage rating of reel.
• Ensure that reel is properly installed before connecting to power
supply.
• Ensure that all electrical power is removed from reel before ser-
vicing.
• Check for frayed/broken wires before each use.
• Pull electrical cord from reel by grasping the electrical cord
itself, not the work device.
• If an electrical malfunction should occur, remove power from reel
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
WC7000 WCH7000
A 20 1/4" 20 1/4"
B 19 3/4" 19 3/4"
C 7 7/8" 7 7/8"
D 3 7/8" 3 7/8"
E 13 1/4" 14"
IMPORTANT
Read this manual carefully before installing, operating or
servicing this equipment.
• Ensure that reel, electrical cable, and equipment being serviced
are properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove power immediately.
Do not pull or jerk on electrical cable!
• Treat and respect the cable reel as any other piece of machinery,
observing all common safety practices.
WARNING: Even low voltage can cause irreparable damage or
death! Exercise extreme caution while operating or servicing this
equipment.
WARNING: This reel is to be used for cable storage only! The
entire length of cable must be unwound before use. Severe dam-
age to the reel will result if the cable is energized while fully
wound on the reel.
Form# 1154-304 Rev: 10/2018
