- Page 1 TriField EMF Meter Owner’s Manual v1.0.1 March 2018 © 2018 AlphaLab, Inc. All rights reserved.
-
Page 2: Table Of Contents
Overview ..................1 Introduction ................1 Features ..................1 Applications................. 1 Using the TriField EMF Meter ............2 Reading the LCD ................. 3 AC Magnetic Field Detection ............. 3 AC Electric Field Detection ............4 RF and Microwave Field Detection ........... 5 The Standard and Weighted Modes ........ -
Page 3: Overview

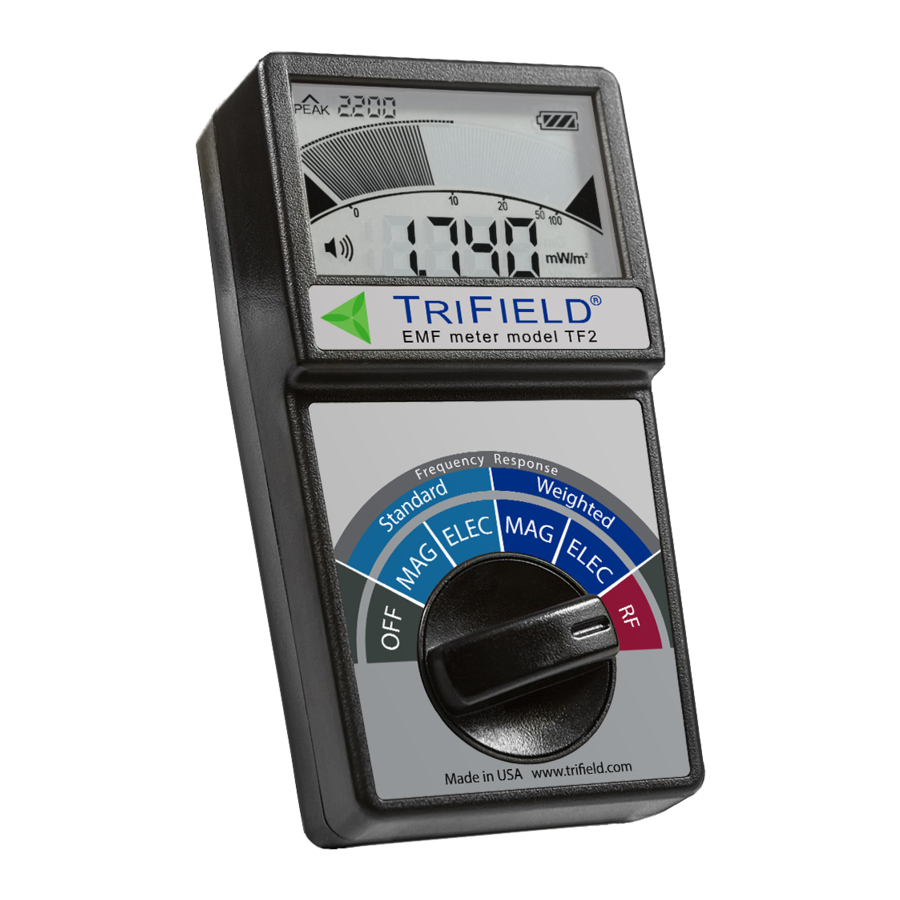

OVERVIEW Introduction The TriField EMF Meter is an AC gaussmeter, AC electric field meter, and radio power density ® meter in a single unit, that combines all the features needed for fast, accurate measurements of electromagnetic fields (EMF). In addition to standard AC measurement modes, a special frequency weighted mode will properly scale the magnetic and electric measurements to indicate the full magnitude of currents produced by each type of field inside the human body. -
Page 4: Using The Trifield Emf Meter
USING THE TRIFIELD EMF METER 1. Hold the meter as shown. Note: Please do not cover the sensors at the top of the meter with your hand or other objects. 2. The knob is used to switch between measurement modes and to turn the meter off when not in use. -
Page 5: Reading The Lcd
Reading the LCD The Field Measurement shows the numerical measurement and units, at the bottom of the LCD. The Field Measurement is averaged to give the most stable, accurate reading possible. The Field Percentage Indicator shows a circular bar graph of the percentage of maximum range that corresponds to the Field Measurement, on a logarithmic scale. -
Page 6: Ac Electric Field Detection
The AC Magnetic Mode uses three ferrite-core coils, pointing in the X, Y, and Z directions, located near the top of the meter. The X, Y and Z signals are combined into a true magnitude of the field strength, independent of which direction the meter is pointed. Maximum range is 100.0 mG, with resolution of 0.1 mG, and accuracy of ±4% of reading at 50 Hz and 60 Hz. -
Page 7: Rf And Microwave Field Detection
RF and Microwave Field Detection To measure an RF field, turn the knob to the RF setting and point the top of the meter at the potential source, or simply hold the meter vertically. Generally, your hand can shield the RF signals, so grip the meter as shown on page 2. The RF Mode uses the same plate sensor as the AC Electric Mode. -
Page 8: Emf Exposure Limits
required to induce that much current. However, biological reactions generally occur at speeds that are slower than 1000 Hz, so on Weighted modes, the meter is designed to become less and less sensitive at frequencies above 1000 Hz. EMF EXPOSURE LIMITS Many different EMF exposure limit standards have been published. -
Page 9: Specifications
SPECIFICATIONS Function TriField EMF Meter ® AC Magnetic 3 - axis Frequency Range 40 Hz - 100 kHz Accuracy ±4% @ 50/60 Hz Maximum Range 100.0 mG Resolution 0.1 mG Frequency Response See plot below AC Electric 1 - axis... -
Page 10: Warranty
Be prepared to describe the problem accurately. Before you return a product to the factory for service, we recommend you refer to this manual. Make sure you have correctly followed the operating procedures. Please refer to the Warranty information, which extends to the first end-user.
