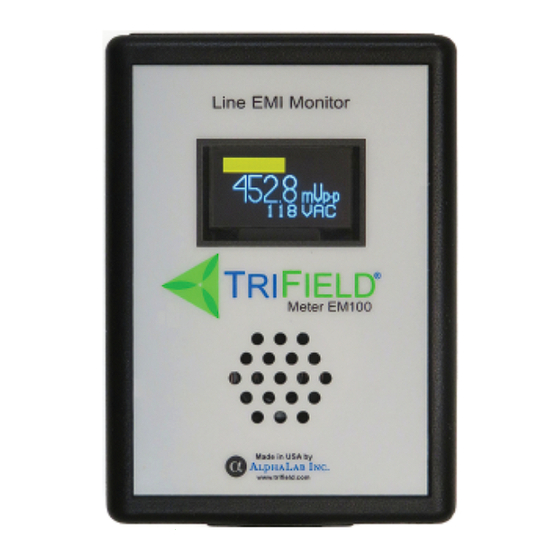

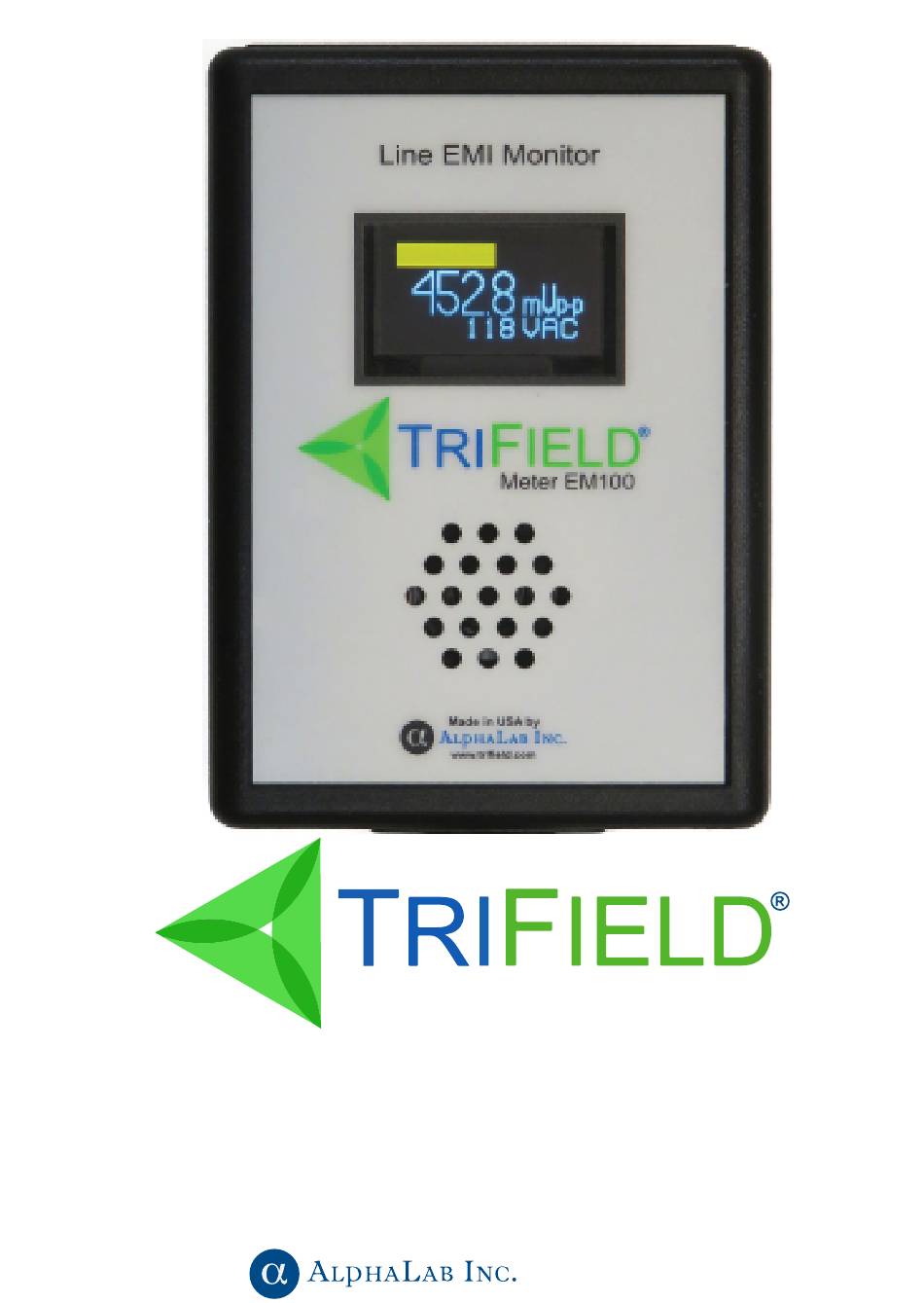

- Page 1 Meter EM100 Line EMI Monitor Quick Start Guide and Information v1.0.3 Jan. 2020 © All rights reserved.
-
Page 2: Safety And Warnings
Safety and Warnings This meter is safe under the following limits: • Indoor use ONLY • Temperatures from 5° to 40° Celcius • Humidity 0-80% up to 31° C decreasing linearly to 50% at 40° C • Main Power Supply (Wall outlet or mains) 110-240VAC, line fluctuations not to exceed ±10% Using this meter in a manner not WARNING -... - Page 3 Description Line EMI Meter by AlphaLab, Inc. measures electromagnetic interference (EMI) in single-phase, 110-240 VAC 50/60Hz power lines. It plugs into a wall outlet or mains socket and requires no battery or additional external power source. This meter measures the total line noise present on the power outlet (differential noise between hot and neutral) into which the unit is plugged.
- Page 4 Setup Continued The supplied power/test cord is reversible and may be plugged into the wall in either direction. Plug the larger, male end (NEMA 1-15P) of this cord into the wall outlet or mains. An adapter plug may be needed outside of the United States.
-
Page 5: Specifications
You may take a reading on other power outlets by simply un-plugging the unit from the wall, moving to another outlet (mains) and plugging into it without removing the opposite end from the meter. Changing and inconsistent readings will be common. You may also see the noise change according to the time of day or throughout the week. -
Page 6: Warranty
We offer a one-year limited warranty from the date of purchase under normal use and service on all AlphaLab meters. If you have questions about the function of your meter, please visit trifield.com/support or email us at support@trifield.com Questions? Call Toll-Free (USA) 1-800-658-7030...
