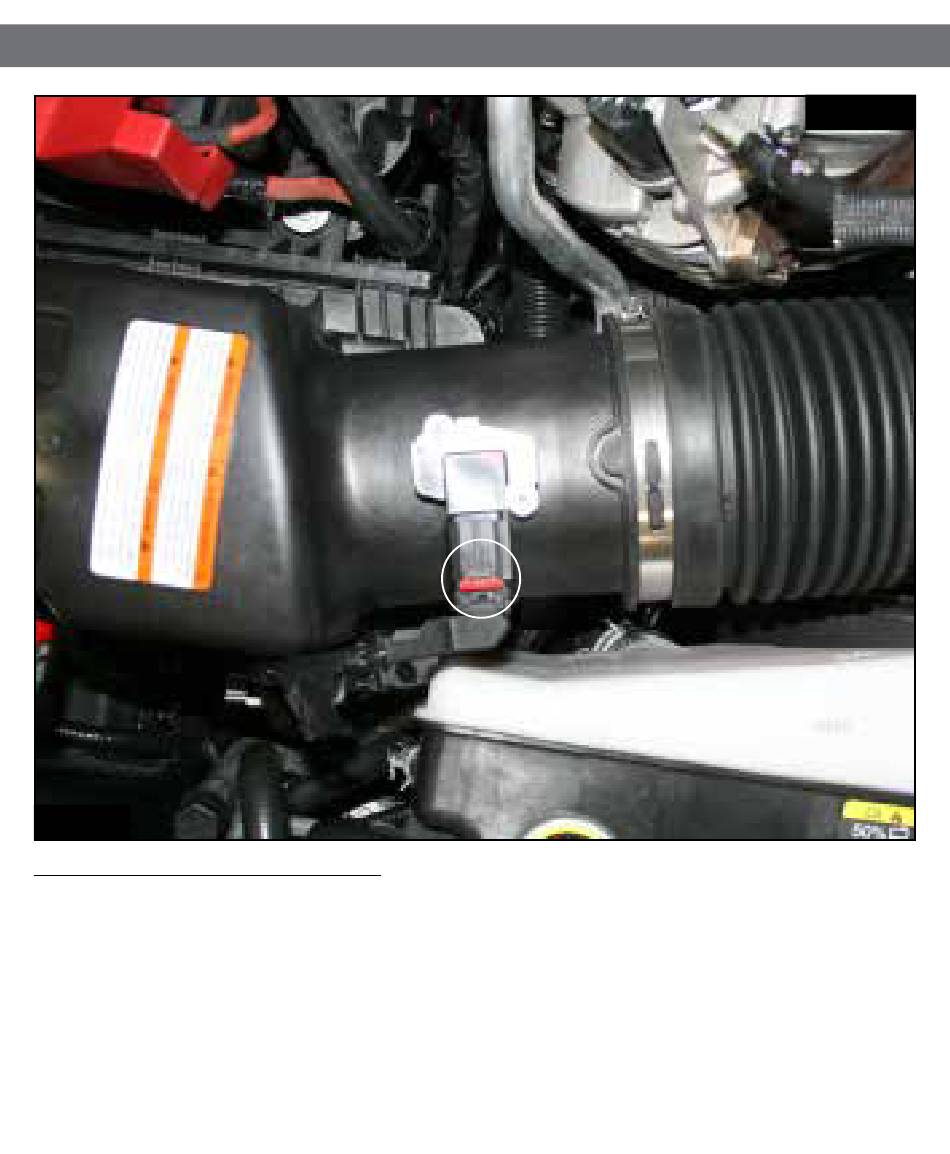

Figure B
Refer to Figure B for steps 2-3
Step 2: Disconnect the wire harness clip from the filter housing and pull the red tab out on the flow
sensor connector, then press the tab and pull off the sensor plug. Remove the MAF sensor from
the tube with the provided T-20 Torx bit.
Step 3: Pull out the air box in an upward motion.
Page 5
REMOVAL
