Summary of Contents for aFe Power Momentum hd

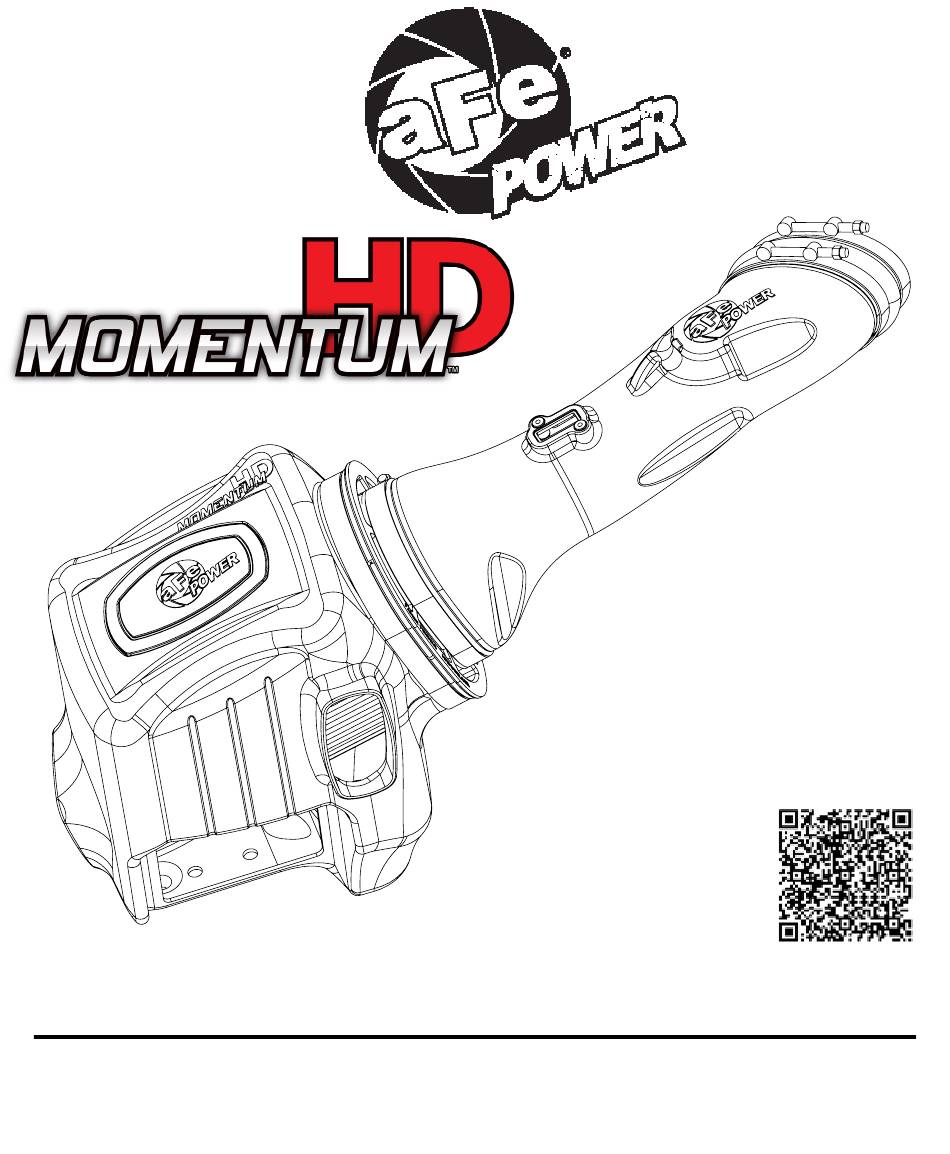

- Page 1 The Next Generation of Intakes advanced FLOW engineering Momentum Air Intake Instruction Manual P/N: 50-73005-1 / 51-73005-1 Make: FORD Model: F-250/350/450/550 Year: 2011-2016 Engine: V8-6.7L (td) POWER STROKE...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call technical support at 951-493-7100 or e-mail tech@afepower.com. • Ensure you have all necessary tools before proceeding. •...
- Page 3 A1/A2 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1 Step 1: Take off the (2) 8mm screws securing the OE intake tube and filter box and loosen the band clamps. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for steps 2-3 Step 2: Disconnect the wire harness clip from the filter housing and pull the red tab out on the flow sensor connector, then press the tab and pull off the sensor plug. Remove the MAF sensor from the tube with the provided T-20 Torx bit.
- Page 6 REMOVAL Figure C Refer to Figure C for step 4 Step 4: Slip all the hoses out of the way on the OE intake tube, loosen the clamps and remove the tube. Page 6...
- Page 7 Refer to Figure D for steps 5-6 Step 5: Take off the factory mounting grommet from the factory airbox and install it on the Momentum HD airbox. Step 6: Slide filter into housing and install furnished T-bolt clamps. Tighten only the larger T-bolt clamp.
- Page 8 INSTALL Figure E Refer to Figure E for step 7 Step 7: Remove rubber inlet gasket from the factory airbox and install it on the Momentum HD airbox. Page 8...
- Page 9 INSTALL Figure F Refer to Figure F for step 8 Step 8: Install the Momentum HD housing assembly into the truck by pushing it into the factory grommet. aFepower.com Page 9...
- Page 10 Step 9: Remove the filter minder and grommet 1 from the factory airbox and install them on the Momentum HD tube. Step 10: Install the Mass Air Flow sensor 2 removed at step 2 on the Momentum HD tube using furnished small hex screws.
- Page 11 INSTALL Figure H Refer to Figure H for steps 12-14 Step 12: Install Momentum HD tube by first sliding the coupling over the turbo inlet. Connect the other end to the air filter. Step 13: Tighten all clamps. Step 14: Snap the AC line into tube and secure factory hose with the fixing clamp I , M6 screw K and washer J .
- Page 12 Refer to Figure I for steps 15-17 Step 15: Re-install factory screw removed in step 1 next to battery 3 to secure Momentum HD airbox. Step 16: Re-connect the MAF sensor 4 . Route the wire harness as shown and secure it to the vehicle Step 17: Tighten all clamps and re-attach both negative battery terminals.
- Page 13 aFepower.com Page 13...
- Page 14 Air Filter Pre-Filter Blue Aerosol Restore Kit Blue Squeeze Restore Kit Pro 10R P/N: 20-91061 P/N: 28-10283 P/N: 90-50001 P/N: 90-50501 Pro DRY S P/N: 21-91061 Pro 5R P/N: 24-91061 Pro-GUARD 7 P/N: 72-91061 Atlas Exhaust Fuel Filter Direct Fit IRF Oil Filter P/N: 49-03039NM P/N: 44-FF014...
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7155 • TECH: 951.493.7100 E-Mail:Tech@aFepower.com P/N: 06-80542...
