Tools Required:
Ratchet
Extension for ratchet
9/16" socket
9/16" wrench
5/8" socket
Pliers
Hammer
7/16 x 1 Bolt
and lock
washers
3/8 x 1
Bolt,
washers,
nylock nuts

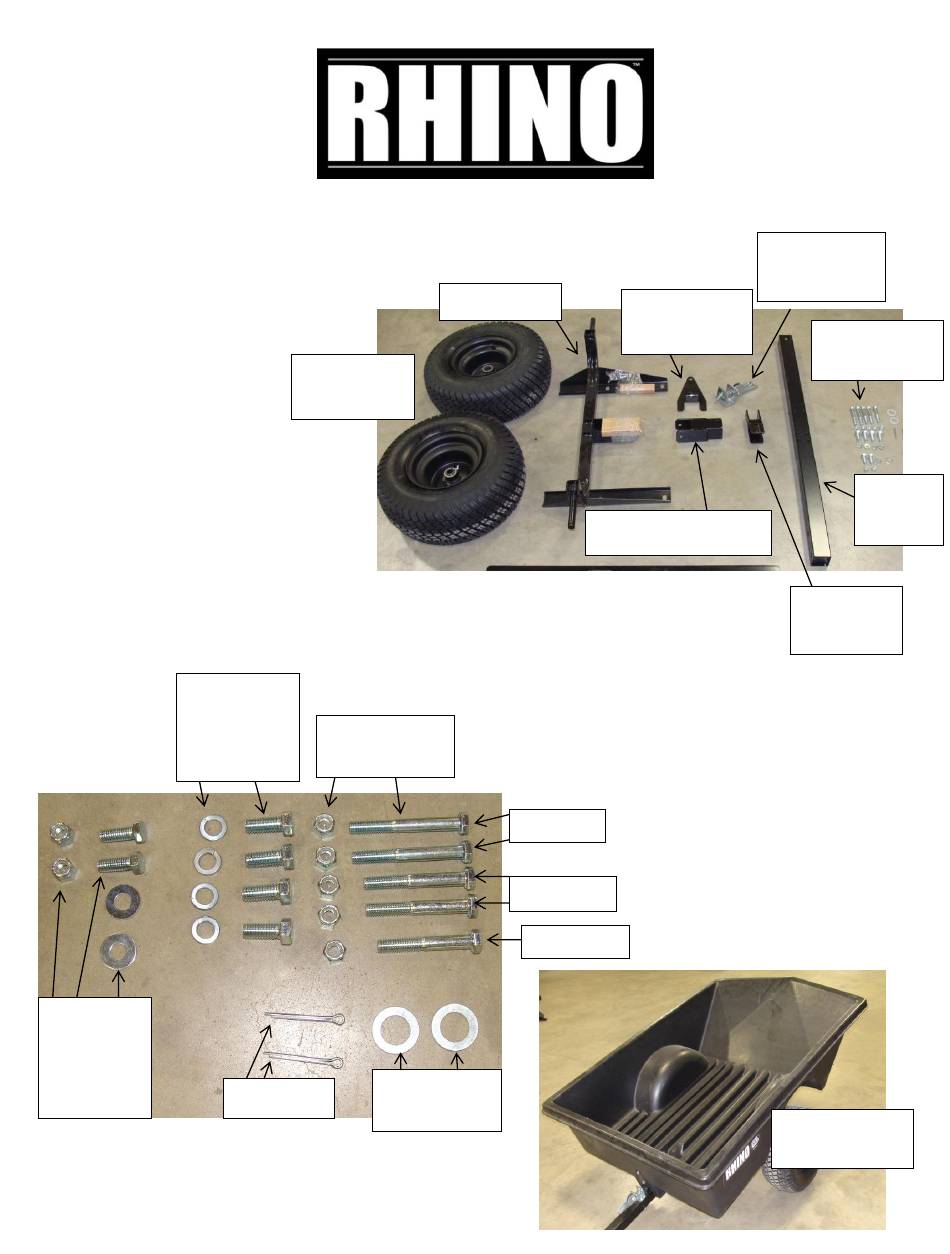

Rhino Xpress 20 Trailer Assembly Instructions
990035 Tires
18 x 8.5-8
3/8 Bolts and
nylock nuts
3/4" machine
Cotter pins
washers
990034 Axle
200666 Tongue pivot
3/8 x 3"
3/8 x 2 ¾"
3/8 x 2 ½"
200659
Tipper latch
200583 Latch
Bracket
990037 Pin
coupler
200791 Plastic
Trailer Body
990038 Hdwe
bag
200661
Tongue
Advertisement
Table of Contents
Related Manuals for RHINO Xpress 20
Summary of Contents for RHINO Xpress 20
- Page 1 Rhino Xpress 20 Trailer Assembly Instructions 200659 Tipper latch 990034 Axle 200583 Latch Tools Required: Bracket 990038 Hdwe Ratchet 990035 Tires 18 x 8.5-8 Extension for ratchet 9/16” socket 9/16” wrench 200661 Tongue 200666 Tongue pivot 5/8” socket Pliers 990037 Pin...
- Page 2 1. Turn trailer body upside down and align the axle with the 7/16” threaded holes in the aluminum power rails which are molded into the trailer body. Tighten securely using the 7/16 x 1” bolts and lock washers. Power rails. Position axle over the smaller threaded holes in...
- Page 3 Both wheels installed. 3. Install tongue pivot onto the axle frame as shown. The hole is off center and should be mounted as shown. Secure with the 3/8 x 3” bolt and 3/8” nylock nut. Tighten the nut enough to hold pivot securely yet allow it to freely move with no excess play. 3/8 x 3”...
- Page 4 5. Attach latch bracket to the front of trailer body using the 3/8 x 1” bolts, washers and nylock nuts. 3/8 x 1” bolt attaches here. 3/8 nylock nut and washer goes here on the inside of trailer body. 6. Attach tipper latch to the trailer tongue using the middle set of holes in the tongue. Secure with 3/8 x 2 3/4”...
