RHINO 1540 Parts Manual

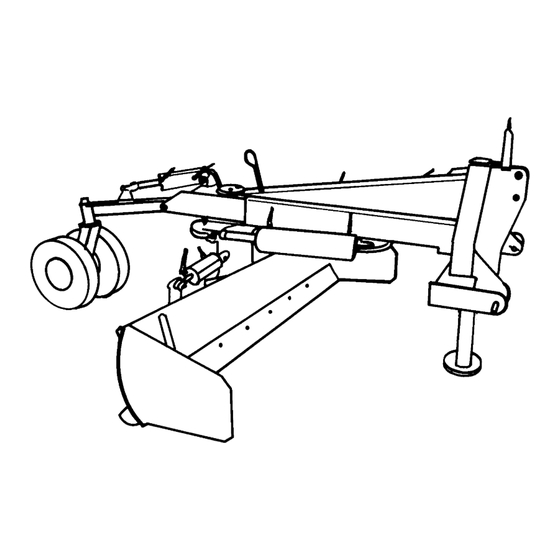

Rear mounted blade
Hide thumbs Also See for 1540:
Table of Contents

Advertisement

Quick Links

Rev 03-07
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: parts@servis-rhino.com
PART'S MANUAL
© 2007 Alamo Group Inc.
1540
Rear Mounted Blade
Part No. 697P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1540 and is the answer not in the manual?

Questions and answers

Jim Maloney
February 26, 2025

What size are the cylinders on a 1540 blade? Where are parts available?

0
1 comments:
Mr. Anderson
May 14, 2025

The size of the cylinders on a RHINO 1540 blade is not specified in the provided information.

This answer is automatically generated

0

Related Manuals for RHINO 1540

Summary of Contents for RHINO 1540

  • Page 1 Servis-Rhino (800-446-5158) to obtain a Free copy before operating the equipment. ® 1020 S. Sangamon Ave. Gibson City, IL 60936 800-446-5158 Email: parts@servis-rhino.com Rear Mounted Blade © 2007 Alamo Group Inc. 1540 Part No. 697P...
  • Page 2 TO THE OWNER/OPERATOR/DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
  • Page 3 PARTS SECTION Parts Section – 1...
  • Page 4 PARTS ORDERING GUIDE The following instructions are offered to help eliminate needless delay and error in processing purchase orders for the equipment in this section. 1. The Parts Section is prepared in logical sequence and grouping of parts that belong to the basic machine featured in this manual.

  • Page 5: Table Of Contents

    SAFETY DECAL SHEETS ... 31 SKID SHOE ASSEMBLY S/N 16152-CURRENT Rev 03-07... 6 VALVE SELECTOR ... 26 WHEEL HUB... 9, 10 WHEEL HUB ASSEMBLY ... 8 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 3...

  • Page 6: General Assembly Rev 03-07

    GENERAL ASSEMBLY Rev 03-07 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 4...
  • Page 7 HYDRAULIC HOSE BRACKET ASSY 02675800 BOLT 00695100 NUT, TOPLOCK 69111 RETAINER 0831010008 BUSHING LOWER MAINFRAME 0691360001 PIN, KLICK 1/4 X 1-3/4 * Add 2 for 10’ Moldboard 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 5...

  • Page 8: Skid Shoe Assembly S/N 16152-Current Rev 03-07

    WASHER 00010300 LOCKWASHER 5/8 00010400 NUT 5/8 NC HEX PL 00768246 WELDMENT, SKID SHOE MOUNT 00768243 WELDMENT, SKID SHOE 00768249 PIN, ADJUSTING 37107B13 CLIP-X HAIR PIN 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 6...

  • Page 9: Gauge Wheel

    COTTER PIN (SINGLE SPINDLE) 301042 THRUST WASHER 54103A11 PIVOT BUSHING 59113 WASHER 5JRA2460 NUT (DOUBLE SPINDLE) 00756489 HUB ASSEMBLY 00025200 PUNCTURE PROOF TIRE & WHEEL 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. GAUGE WHEEL Parts Section – 7...

  • Page 10: Wheel Hub Assembly

    00003500 GREASE FITTING 00756000 WHEEL HUB 0371242102 BEARING CONE(OUTSIDE) 00756001 SPINDLE, SINGLE WHEEL 00756489 HUB(W/CUPS & STUDS) 00756528 WHEEL HUB ACCESSORY KIT 00756002 SPINDLE, DUAL WHEEL 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 8...
  • Page 11 BEARING CUP (OUTER) 371247C BEARING CONE (OUTER) 371247H SPINDLE WASHER 371247J SPINDLE NUT 1621/2010 COTTER PIN 371247G HUB CAP PT115 LUG BOLT PT116 LUGNUT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. WHEEL HUB Parts Section – 9...
  • Page 12 BEARING CUP (OUTER) PT109 BEARING CONE (OUTER) PT113A SPINDLE WASHER PT114 SPINDLE NUT 1621/2010 COTTER PIN PT112 HUB CAP PT115 LUG BOLT PT116 LUGNUT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. WHEEL HUB Parts Section – 10...

  • Page 13: Rear Blade Hydraulics

    REAR BLADE HYDRAULICS ITEM PART NO. QTY 8’ QTY 10’ 0691600000B 00759715A 691302 651132 11565 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. DESCRIPTION HYDRAULIC CYLINDER HYDRAULIC CYLINDER HOSE HOSE ELBOW ADAPTER Parts Section – 11...

  • Page 14: Hydraulic Cylinder Rev 03-05

    PISTON ¤* SEAL HALLITE ¤* SEAL WIPER ROD ¤* SEAL ¤* O-RING ¤* SEAL PSP PISTON RING ¤* WEAR RING 00775908 HYDRAULIC HOSE 02975527 SEAL KIT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 12...

  • Page 15: Cylinder - Hydraulic Rev 03-07

    CYLINDER HYD 16 STX4BOREX2ROD 0781070002 LOCKNUT PISTON 0781070013 PIN, CLEVIS 0781070014 HEAD 0781070015 PISTON 0691600016 ROD,PISTON W/CLEVIS 0691000100 BARREL,HYD.CYLINDER 37107B13 CLIP-X HAIR PIN 0781070200 SEAL KIT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 13...
  • Page 16 02031800 TIE ROD NUT 4675 PISTON NUT 7339 BREATHER PLUG 651132 2 ref HYDRAULIC HOSE (NOT SHOWN) 94514 2 ref SWIVEL FITTING 90 DEGREES (NOT SHOWN) 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 14...
  • Page 17 HOSE (NOT SHOWN) 94514 ELBOW (NOT SHOWN) 0652141311 ADAPTER (NOT SHOWN) 8354 PIN (NOT SHOWN) 00606000 COTTER PIN (NOT SHOWN) 00774760 SEAL KIT FOR 8727A CYL 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 15...

  • Page 18: Hydraulic Cylinder

    ROD CLEVIS 00774740 SET SCREW 33005H5C TIE ROD NUT 5JRC16140 PISTON NUT 1917132 PORT PLUG 11565 ELBOW, FITTING 90DEGREES 651132 HYDRAULIC HOSE 02975527 SEAL KIT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. HYDRAULIC CYLINDER Parts Section – 16...
  • Page 19 BOLT 4675 PISTON NUT 8354 CLEVIS PIN 8784 00759734 TUBE 00759733 PISTON 00759735 PISTON ROD 8786 HEAD 8754 FEMALE CLEVIS 00759736 TIE ROD 00759737 SEAL KIT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 17...
  • Page 20 TUBE 6913011 PISTON 6913012 691353 6913013 HEAD 69130A13 HEAD 691354 CLEVIS, PISTON ROD 6913014 TIE ROD 69130A14 TIE ROD 00749508 PIPE PLUG 691356 CLEVIS BASE PIN 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 18...
  • Page 21 HEX NUT 7E62414 BOLT 691351 PISTON NUT 8354 CLEVIS PIN 0691350014 CLEVIS BASE 0691350006 TUBE 0691350004 PISTON 0691350005 0691350010 HEAD 0651130022 CLEVIS, PISTON ROD 0691350011 TIE ROD 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 19...
  • Page 22 65130A4 HEAD 691354 PISTON ROD CLEVIS 65130A12 PISTON ROD CLEVIS 691317 TIE ROD 00749508 PIPE PLUG 65113A30 SEAL KIT (NOT SHOWN) 691318 SEAL KIT (NOT SHOWN) 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 20...
  • Page 23 CLEVIS PIN 0651130001 BASE CLEVIS 0691310002 TUBE 0651130005 PISTON 0691310001 PISTON ROD 0651130016 HEAD 0651130022 PISTON ROD CLEVIS 691317 TIE ROD 0651130014 SEAL KIT (NOT SHOWN) 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 21...

  • Page 24: Hose Connections - Hydraulic

    HOSE CONNECTIONS - HYDRAULIC ITEM PART NO. QTY. DESCRIPTION 94514 SWIVEL FITTING B65131 QUICK COUPLER ASSEMBLY 02963649 NIPPLE 651311 COUPLER 651312 COUPLER TIP - MALE 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 22...

  • Page 25: Bracket Assy - Control Valve

    BRACKET ASSY - CONTROL VALVE ITEM PART NO. QTY. DESCRIPTION B651401 BRACKET W/FASTENERS 00016200 BOLT 13500 LOCKWASHER 5B5180 HEX NUT 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 23...

  • Page 26: Control Valve Assembly

    CONTROL VALVE ASSEMBLY 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 24...
  • Page 27 PIN KIT 7E4204 BOLT 6514012 RETAINER PLATE 6514013 SPOOL SEAL 6514018 STOP WASHER 6514019 SPRING 6514020 STOP COLLAR 6514021 WASHER 6514022 END CAP 00021400 BOLT 6514014 SPACER 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 25...

  • Page 28: Valve Selector

    ITEM PART NO. QTY. DESCRIPTION 0781300000 VALVE ASSEMBLY (COMPLETE) 0781300005 SEAL 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. VALVE SELECTOR Parts Section – 26...

  • Page 29: Adjust Link Assembly

    WDMT. ADJUSTING LINK HOUSING 00776121 WDMT. ADJUSTING LINK ROD 00775916 PIN, CYLINDER 691154 PIN, CLEVIS 00606000 PIN, COTTER 37107B13 CLIP, HAIR PIN 02969064 BUSHING SPRING (NOT SHOWN) 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 27...

  • Page 30: Adjust Link Assembly

    ADJUST LINK ASSEMBLY ITEM PART NO. QTY. DESCRIPTION B69116B¤ ADJUST LINK ASSEMBLY 69116B1 ADJUSTING LINK HOUSING 69116A2 ADJUSTING LINK ROD 691154 37107B13 CLIP PIN 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 28...

  • Page 31: Adjusting Link - Manual

    PART NO. QTY. DESCRIPTION B69115A MAINFRAME SWING & MOLDBOARD PIVOT 69115A1 ADJUSTING LINK HOUSING WELDMENT 69115A2 ADJUSTING LINK ROD WELDMENT 691154 CLEVIS PIN 00000400 COTTER PIN 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 29...

  • Page 32: Adjusting Link - Manual

    ADJUSTING LINK - MANUAL ITEM PART NO. QTY. DESCRIPTION B69116B MOLDBOARD TILT 69116B1 ADJUSTING LINK HOUSING WELDMENT 69116A2 ADJUSTING LINK ROD WELDMENT 691154 CLEVIS PIN 00000400 COTTER PIN 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 30...

  • Page 33: Safety Decal Sheets

    SAFETY DECAL SHEETS ITEM PART NO. QTY. DESCRIPTION 00776261 SHEET,1540 BLADE DECAL 00776481 SHEET,MANUALCANISTER DECAL 1458392 DECAL,RED REFLECTOR (NOT SHOWN) 1458393 DECAL,YELLOW REFLECTOR (NOT SHOWN) 1540 (Oct-01)S/N 14500 -Current Rev 03-07 ©2007 Alamo Group Inc. Parts Section – 31...
  • Page 35 1. LIMITED WARRANTIES 1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”) that the goods purchased are free from defects in material or workmanship. 1.02.Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be defective under normal use and service due to defects in material or workmanship.
  • Page 36 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety requirements of tractor operators: REQUIRED OF THE OWNER:...
  • Page 37 1540 Rear Blades PL 06/01 P/N 697P Printed U.S.A.
