SM-RBX-EXT-14-WH

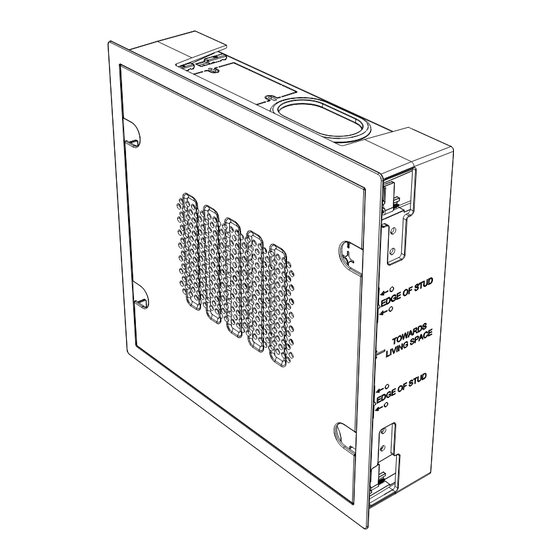

Overview
Thank you for purchasing a great product from Strong™. We appreciate your purchase and
are committed to providing the highest quality products possible. The Strong In-Wall VersaBox
is designed to provide the best in-wall box solution for installers adding equipment behind low-
profile displays and other wall-mounted equipment. It can easily be installed in existing ceilings
and walls, or in new jobs using the optional SM-RBX-14-BKT Pre-Construction Bracket.
Inside the enclosure, up to two layers of components may be mounted using the built-in
attachment points and the pivoting center mounting plate. Easy-to-remove cutouts allow outlet
boxes and low-voltage rings to be installed in the sides of the box to save space for more
equipment. The center support plate is perforated to aid in wire management and device
mounting and can be set to different depths to allow for more varied installations. The plate
can also be modified as needed so that larger components fit into the box.
Package Contents
(1) SM-RBX-EXT-14
(1) Center Support Plate
Recommended for Installation
Tools
•
#2 Phillips Screwdriver
•
Drywall Saw
•
Tape Measure
•
Level
•
¼" Flat Head Screwdriver (optional)
•
Electric Drill and ¼" bit (optional)
•
Tin Snips (optional)
Important Instructions and Considerations for Installation
•
Read and follow all instructions.
•
Before beginning installation, carefully plan locations, accounting for potential electrical, ductwork, plumbing or other
obstacles that may interfere with installation of the box, equipment, or wiring.
•
Contact a suitable contractor if you are unsure of how to best install.

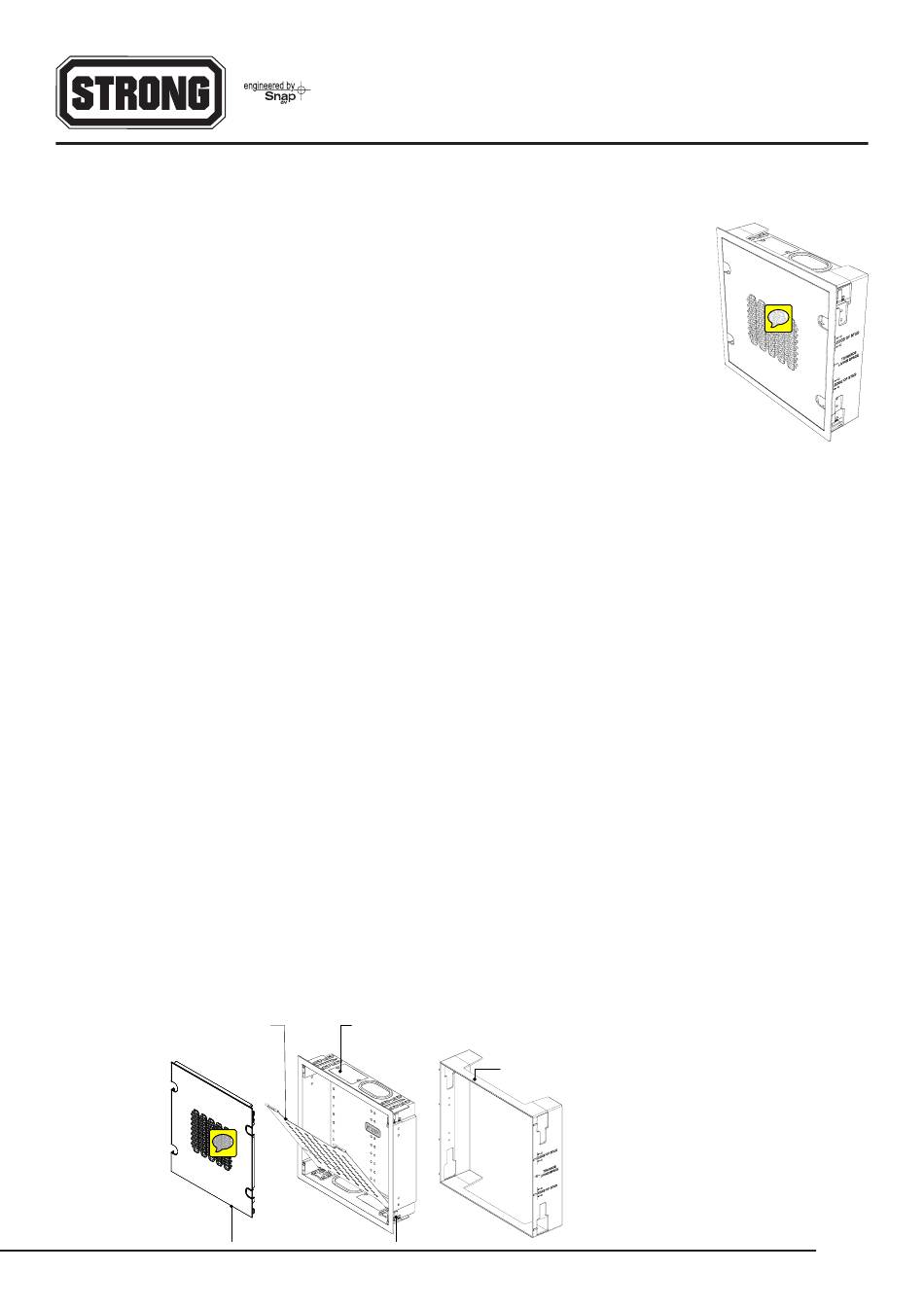

Assembly Diagram
Note: To remove the cover with ease, pull the top two tabs loose first and then the bottom. Do not bend the tabs.
Adjustable Position
Center Support Plate
www.snapav.com Support: 866.838.5052
(1) Cover Plate
Optional Accessories and Hardware
•
SM-RBX-14-BKT (pre-construction bracket for new work)
•
Drywall screws (needed for use with SM-RBX-14-BKT)
•
Electrical box and low voltage ring for adding terminations to cutouts
Use only standard size cover plates on boxes and rings installed
in the VersaBox. Midi and jumbo size plates will not fit.
Single Gang Enclosure
Mounting on Top & Bottom
Optional New Work Pre-Construction Ring
(
SM-RBX-14-BKT, sold separately
SM-RBX-EXT-14 Installation Manual
Installation Manual
In-Wall VersaBox
)
Pg. 1
Advertisement
Summary of Contents for Strong SM-RBX-EXT-14-WH
-
Page 1: Installation Manual
In-Wall VersaBox Overview Thank you for purchasing a great product from Strong™. We appreciate your purchase and are committed to providing the highest quality products possible. The Strong In-Wall VersaBox is designed to provide the best in-wall box solution for installers adding equipment behind low- profile displays and other wall-mounted equipment. - Page 2 SM-RBX-EXT-14 Installation Manual Old Work Installation Instructions 1. Mark the desired height of the top of the SM-RBX- EXT-14 on the wall between two stud centers. Use a Cutout Dimensions stud finder to locate the stud locations. 14" (W) x 13.25" (H) 2.
- Page 3 SM-RBX-EXT-14 Installation Manual Using the Center Support Plate 6.48 in. The center support allows for almost any mounting configuration possible. If a network music player or other Removable section larger equipment is being installed, the pre-stamped for adding Sonos player square can be removed to make the full mounting depth available.
- Page 4 (Factory Position) Warranty Limited Lifetime Warranty All Strong back-boxes and brackets have a Lifetime Limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship Lifetime under normal conditions of use. This warranty shall not apply to products which have been abused, modified or disassembled.
