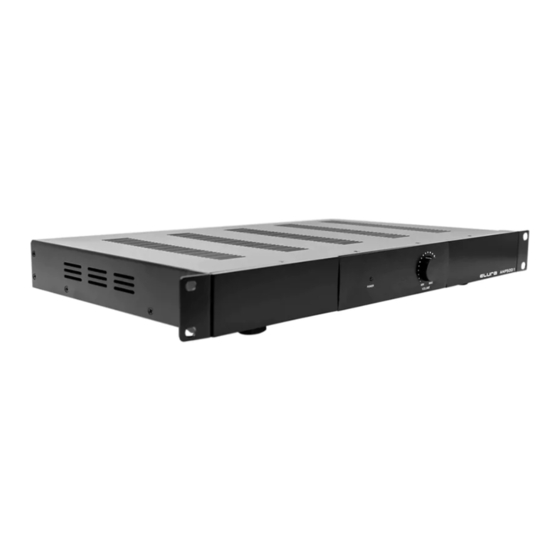

Elura AMP 500/1 Manual

model AMP 500/1
subwoofer amplifier
Specifications.
Output Power: Line & LFE 500W @ 4Ω
Line & LFE 330W @ 6Ω
Line & LFE 250W @ 8Ω
THD+N: Line & LFE @4Ω=0.04%
Input Sensitivity: Line 124mV / LFE 162mV
Frequency Response: Line 15Hz - 260Hz / LFE 15Hz - 550Hz
Low Pass Crossover: 1W/4Ω 90Hz = 0-3dB, 90Hz - 260Hz
Low Pass Filter: 1W/4Ω, 260Hz=0dB, test point @ 525Hz, 13dB/Octave
Signal to Noise Ratio: 500W @4Ω / 90Hz, 90dB, 1W @4Ω / 90Hz, 65dB
Auto Turn Off Time: 16 min
Supply Voltage: AC230V / 50Hz, AC115V / 60Hz
www.elura.audio
POWER
IN
L
TRIGGER
DC 12V ON EQ 1 EQ 3 CROSSOVER PHASE
R
50 200 0° 180°
OUT AUTO EQ 2
LFE IN LINE IN S/N:
POWER MODE SETTINGS
Overview.
Thank you for purchasing Elura
Amplifier products. Elura is a high
performance custom installed
Warning.
product engineered for movie and
music enthusiasts. Each Elura
To reduce the risk of electric shock,
product is manufactured to the
do not expose this product to rain or
highest quality standard using state
moisture. This product should not
of the art components and built for
be exposed to dripping or splashing
years of enjoyment.
and avoid placing near any object
filled with water, such as a vase or
Features.
an aquarium.
• Digital high power amplification
Important Symbols.
• 4 Ohm Impedance Capable
• Thermal & Short Circuit
The lighting flash arrowhead
Protection
triangular symbol is to alert the user
• Low Noise
to the presence of uninsulated
• Small chassis
'dangerous voltage' within the
• Less Heat
product sufficient enough to
• Efficient Class D design
constitute a risk of electric shock.
• Rack mountable
• Automation circuit
The arrowhead symbol with an
• Detachable Power Cord
exclamation point is to alert the user
Contents.
to the presence of an important
operational or maintenance
• Amplifier
instruction.
• Rack Mounting Hardware
• Power cord
• Manual
model AMP 500/1
subwoofer amplifier
VOLUME
SPEAKER OUTPUT
+ - + -
Total Impedance
SUB 1 SUB 2
(Sub 1+Sub 2) minimum 4Ω
Safety Instructions.
1. Read the instructions.
2. Keep the instructions.
3. Heed all warnings.
4. Follow the instructions.
5. Do not use near water.
6. Clean with a dry cloth.
7. Do not block ventilation slots.
8. Install in accordance to the
instructions.
9. Do not install near a heat source
or combustible source.
10. Do not defeat the polarized or
grounding plug.
11. Protect the power cord from
being crimped, cut or pinched.
12. Only attached accessories
specified within the instructions.
13. Use only on lower shelves with
a stand, cart or rack product
capable of holding the weight to
avoid injury from furniture tipping
over.
