Summary of Contents for Elura GREEN LABEL Series
-
Page 3: Basic Connections

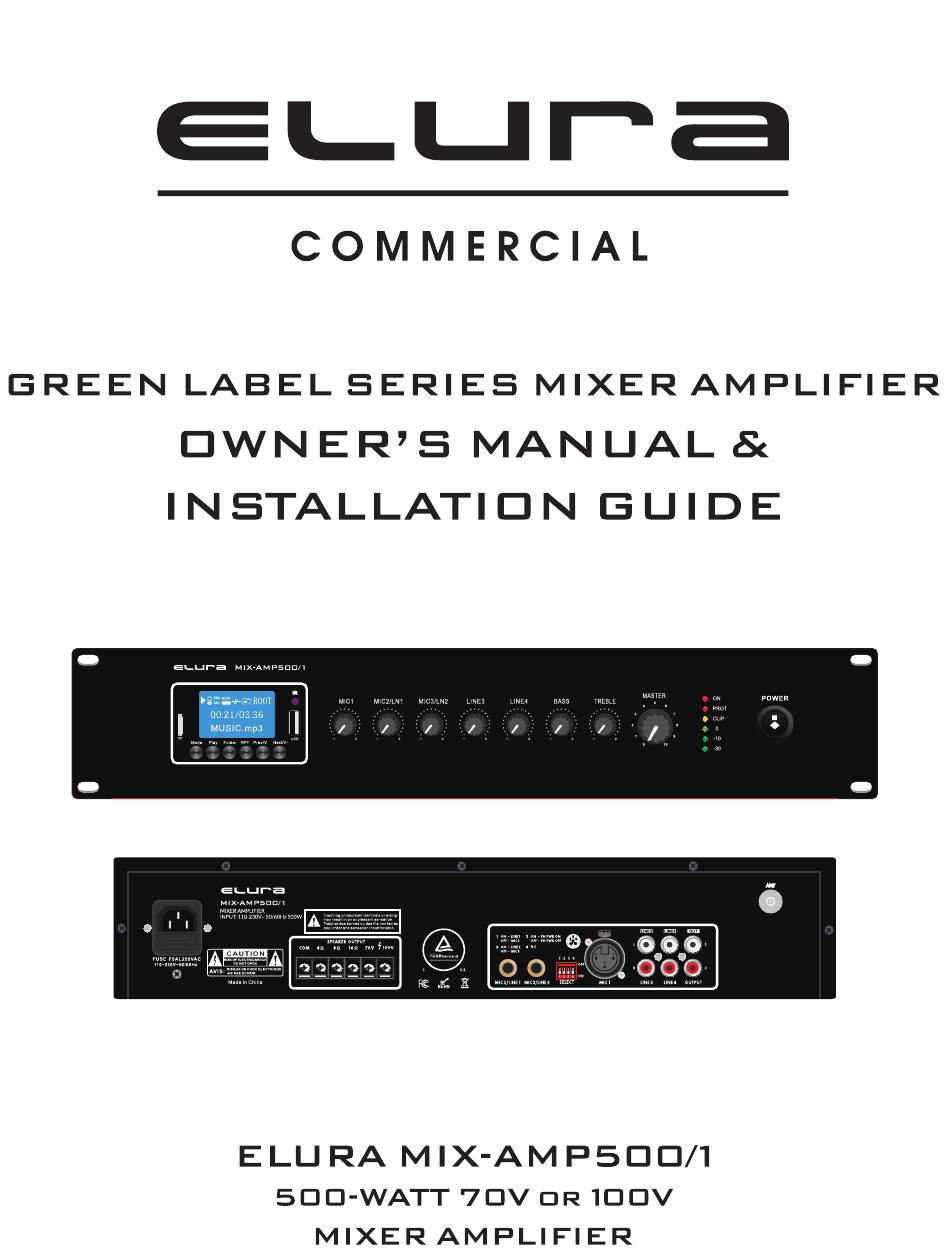

Overview Front Panel Thank you for purchasing Elura 10 11 13 14 Amplifier products. Elura is a high performance custom installed MIX-AMP500/1 product engineered for commercial sound installations. Each Elura product is manufactured to the highest quality standard using state... -
Page 4: Output Connections
Output Connections 70V/100V Line System Connections Speaker Connection Examples For 70V/100V line systems, connect the amplifier to the first speaker in the system using double-insulated speaker wire which is rated to handle the total output of the amplifier. Connect the “70V” or “100V”... -
Page 5: Remote Control
• Prev – Restarts the current track. New Device” or similar to search for Pressing this repeatedly will cycle available devices. Elura through previously played tracks MIX-AMP500/1 uses the default BT • Next – Skips to the next track. name of MIX-AMP500/1. Select this from... - Page 6 Front Panel Controls for the FM Front Panel Controls for the USB & • Numeric Buttons – Entering a number Tuner TF/MicroSD Player will directly select a track by number. No enter key is necessary. To select • Play – Toggles between volume mute •...
-
Page 7: Specifications
Specifications Description Mixer Amplifier with USB/TF/MicroSD/FM/Bluetooth Rated Power Output 500 W Speaker Outputs 100V or 70V & 4 Ohm-8 Ohm-16 Ohm Connector Mic 1 input by balanced XLR with phantom power with ch 2-4 ducking Mic/line switchable input 2-3 unbalanced 6.3mm jack Line 3-4 inputs by RCA;... -
Page 8: Product Warranty
This warranty does not apply to products that have been abused, incorrectly installed, modified, disassembled and/or repaired by anyone other than Elura or our appointed repair facility. A unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair.
