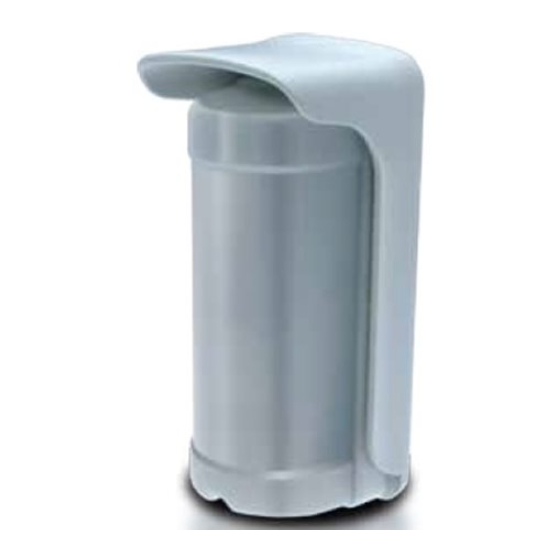

DIRRVE - DIRFE
O U T D O O R
D U A L - I R
S E N S O R
USER MANUAL
(VERSION 2.4)
We thank you very much for choosing our product.
Now we would like to invite you to read carefully the following
instructions before installing the product in order to use all its capacities.
This electronic device is compliant to the essential requirements of the
European Union (EU) norms, concerning the electromagnetic compatibility and
the electric safety.
Advertisement
Table of Contents
Related Manuals for Duevi DIRRVE
Summary of Contents for Duevi DIRRVE
-
Page 1: User Manual
DIRRVE - DIRFE O U T D O O R D U A L - I R S E N S O R USER MANUAL (VERSION 2.4) We thank you very much for choosing our product. Now we would like to invite you to read carefully the following instructions before installing the product in order to use all its capacities. - Page 2 DIRRVE – DIRFE Outdoor DUAL-IR sensor DIRRVE / DIRFE is an innovative passive infrared sensor for outdoor use. It has two PIR detection heads that are completely independent and can be separately adjusted. This allow to obtain a great functioning versatility and contemporary, if correctly installed, an excellent reduction of unwanted alarm.
- Page 3 UNWANTED ALARMS AND TO SET BOTH ELEMENTS IN THE SAME DIRECTION. INCORRECT INSTALLATION COULD REDUCE SECURITY LEVEL. THE SENSOR DIRRVE HAS AN IP54 PROTECTION LEVEL AGAINST DUST WATER. POSSIBLE, ANYWAY RECOMMENDED TO AVOID INSTALLING THE SENSOR IN AREAS DIRECTLY EXPOSED TO RAIN OR SNOW. DO NOT SPRAY ANY HIGH PRESSURE WATER ON THE SENSOR.
- Page 4 PROPER USE OF THE SENSOR DIRRVE/DIRFE sensor can be fixed at height between 50 and 250 cm from the ground level, on vertical surfaces, walls or posts using the fixing and protecting provided visor. Each detection unit is equipped with a Fresnel lens that builds 5 double sectors beams horizontally oriented with a radial aperture of 100°...
-
Page 5: Outdoor Use
DIRRVE-DIRFE V2.4 This manual can be modified without any warning... - Page 6 The amount of reflection of these surfaces is not of course 100 %, however, if the heat source is very strong, reflection may be sufficient to trigger an alarm (see Fig. 4). DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
- Page 7 NO!! Fig. 3 - Avoid to have beams parallel to the ground level. NO!! Fig. 4 - Avoid to have beams toward reflecting surfaces. DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
-
Page 8: Indoor Use
The movement inside the lower one. only one area do not trigger an alarm. DIP1=OFF DIP1=OFF DIP1=ON DIP3=ON DIP3=OFF DIRRVE-DIRFE V2.4 This manual can be modified without any warning... -
Page 9: Installation Of The Sensor
CLOSED WILL DISABLE THE SUPERVISION CODE TRANSMISSION. THIS IS SIGNALED BY THE BLINKING OF THE BLUE LED (10 TIMES). THE SENSOR WILL BE ACTIVE AND STABLE ONLY ABOUT 20 S AFTER THE RED LEDS START BLINKING. DIRRVE-DIRFE V2.4 This manual can be modified without any warning... - Page 10 HEAD WITH CURTAIN EFFECT LENS COVER VERIFY THAT THE HOOKS ARE WELL HEAD WITH FIXED IN THEIR JOINT STANDARD LENS DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
-
Page 11: Wall Mounting
TAMPER screw so that fixing the detector, the tamper switch is well pressed without break circuit: About 9 ÷ 10 mm TAMPER protection headset Wall TAMPER Visor Detector adjustment DIRRVE-DIRFE V2.4 This manual can be modified without any warning... - Page 12 Fix (F) the cover by appropriate screw taking care to insert the BLACK o-ring: Pass cables through holes (C and D) and proceed with installation as follows. Cables path DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
- Page 13 Trimmer to adjust the detection depth of the upper head. Turn clockwise to increase the detection range. Lower head Trimmer to adjust the detection depth of the lower head. Turn clockwise to increase the detection range. DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
- Page 14 DIP6 is in the OFF position. DIRRVE-DIRFE V2.4 This manual can be modified without any warning...
-
Page 15: Technical Features
TECHNICAL FEATURES (DIRRVE – wireless) POWER SUPPLY Battery 9 V CONSUMPTION Stand-by < 15 uA – ALARM < 10 mA 1 Led for upper head, 1 Led for lower head, 1 Led for alarm LOCAL SIGNALLING transmission ALARM INPUTS 2 IR sensible elements, programmable with OR / AND logic...
