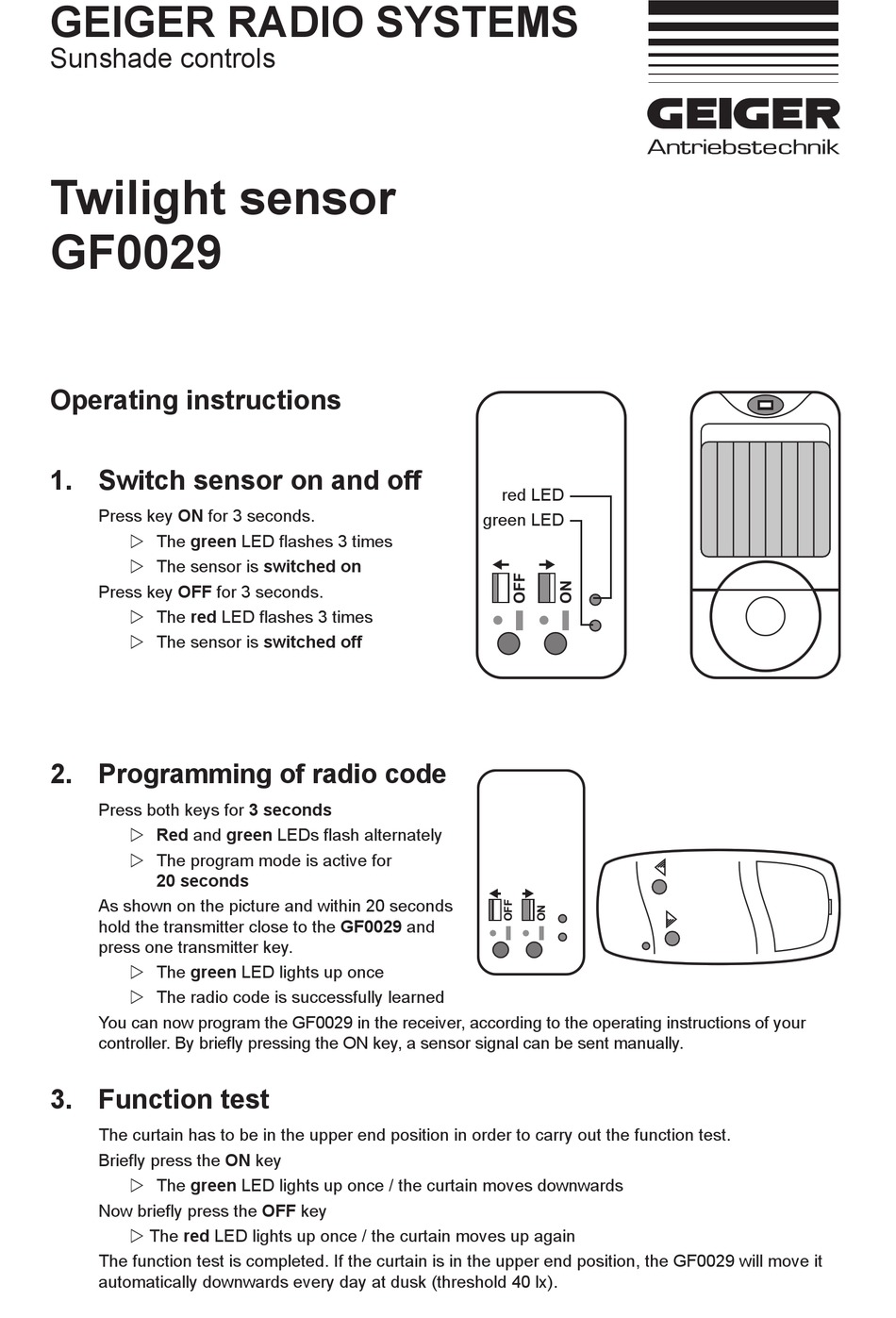

GEIGER RADIO SYSTEMS
Sunshade controls
Twilight sensor
GF0029
Operating instructions

1. Switch sensor on and off

Press key ON for 3 seconds.
w The green LED flashes 3 times
w The sensor is switched on
Press key OFF for 3 seconds.
w The red LED flashes 3 times
w The sensor is switched off

2. Programming of radio code

Press both keys for 3 seconds
w Red and green LEDs flash alternately
w The program mode is active for
20 seconds
As shown on the picture and within 20 seconds
hold the transmitter close to the GF0029 and
press one transmitter key.
w The green LED lights up once
w The radio code is successfully learned
You can now program the GF0029 in the receiver, according to the operating instructions of your
controller. By briefly pressing the ON key, a sensor signal can be sent manually.

3. Function test

The curtain has to be in the upper end position in order to carry out the function test.
Briefly press the ON key
w The green LED lights up once / the curtain moves downwards
Now briefly press the OFF key
w The red LED lights up once / the curtain moves up again
The function test is completed. If the curtain is in the upper end position, the GF0029 will move it
automatically downwards every day at dusk (threshold 40 lx).
red LED
green LED
