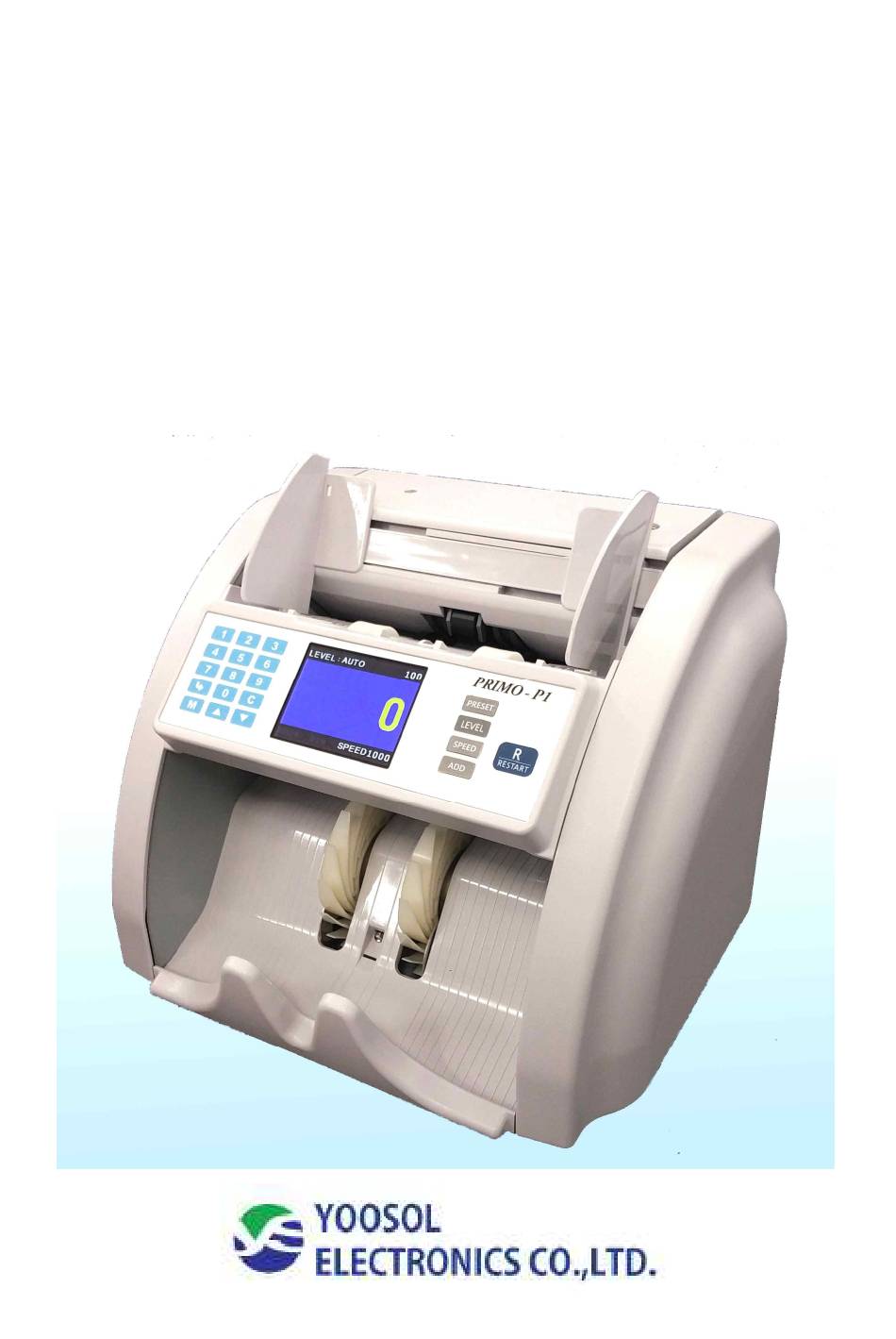

- Page 1 PRIMO- P1/p1u Operation Manual Rev 2.5...
-
Page 2: Table Of Contents
CONTENTS Specifications Appearance Display / Operation 3-1. Operation/ Preset (Batch) mode 3-2. Operation/ Density Setting (Adjustable 5 levels) 3-3. Operation/ Change Speed 3-4. Operation/ Add mode/ Height detection mode 3-5. Operation/ UV Setting (P1U only) 3-6. Operation/ Alarm message Error code / Trouble shooting Configuration (User mode) Accessories / Safety - 2 -... -
Page 3: Specifications
1. Specifications P1/ P1U (Common) Speed 1,000 notes/min (Standard) (4 Selectable speeds) (800 / 1,000 / 1,250 / 1,500 notes/min) Display 2. 8 inch Color LCD (320 x 240 Pixels) Dimension(mm) 292(W) x 251(D) x 244(H) Weight Approx. 5.5Kg Hopper/ Stacker capacity Max. -
Page 4: Appearance
2. Appearance Name Name Hopper Guide Kicker roller Side Cover Gate adjustment screw Display Power connector Hopper Power Switch Stacker RS232 – Connect External Display(Option) - 4 -... -
Page 5: Operation/ Preset (Batch) Mode
3. Display Func tion Func tion Enter P RE S E T Preset count Set notes density LE V E L Up/Down S P E E D Set count speed Mode Add total count A DD Clear(Reset ) Restart / Back 3-1. -
Page 6: Operation/ Density Setting (Adjustable 5 Levels)
Select Batch number 10, 50, 100, 150, 200, 250 ~ unlimited) By PRISET Key. Also select certain count number by Up/Down key. Default set: 200/notes 3-2. Operation/ Density Setting (Adjustable 5 levels) Press LEVEL Key Default set: AUTO - If machine count notes & show “Double error”... -
Page 7: Operation/ Change Speed
3-3. Operation/ Change Speed Adjust Speed - Default speed : 1,000 / min - Change speed 800/1000/1250/1500 notes / min 3-4. Operation/ Add mode Add mode: Accumulative total of all counted bills Height detection (S/M): Press to activate Height detection S (single) Mode: Detect different height notes M (Mix) Mode: Ignore different height notes - 7 -... -
Page 8: Operation/ Alarm Message
3-5. Operation/ UV mode – (available for P1U only) UV detection On/ Off - Press “CF” key to activate the UV detection (On/ Off) 3-6. Operation/ Alarm message Alarm message - When sound Alarm, there is Error message show up in red, - 8 -... -
Page 9: Error Code / Trouble Shooting
then machine stop the counting until clear Alarm message. Please press “C” key to clear and counting again. * If machine in add mode, added count value also will be clear when you press “C” key. Error code / Trouble shooting Error code Symptoms Trouble shooting... -
Page 10: Configuration (User Mode
Configuration (User mode) - Press “M” key for 2~3 sec, Select 1. User mode and Press Enter 1. LANGUAGE: Change the Country Language. 2. BUZZER: On/ Off 3. CURRENCY: Select country currency * Programed density & depth (width) value by each country currency 4. - Page 11 5. LCD COLOR: Switch Display Background color BLUE / WHITE 6. DEFAULT SET: Restore to the factory setting condition “Yes/No” (IR count/ UV Sensor value, Preset, etc) 7. STACK LIMIT (Stacker pocket full) Stacker will auto stop after count Max 200 notes (ON/ OFF) 8.
-
Page 12: Accessories / Safety
Accessories / Safety NAME Power cord External Customer Display (Remote display) Operation Manual - 12 -... - Page 13 - Safety Instructions - WARNING Do not touch the machine and power cable with moist hands If you smell anything burning, immediately disconnect power. And contact to your local agency for a checkup. Never disassemble the machine without trained personnel. Keep your work area dry.
- Page 14 Yoosol Electronics Co., Ltd. #1004, ACE High End Tower 6, Gasan-dong 234, Beotkkot-ro, Geumcheon-gu, Seoul Korea Tel: 82-70-7425-1057 Fax: 82-2-2617-9622 Website: http://www.i-primo.co.kr/ E-mail: yoosol@i-primo.co.kr - 14 -...
