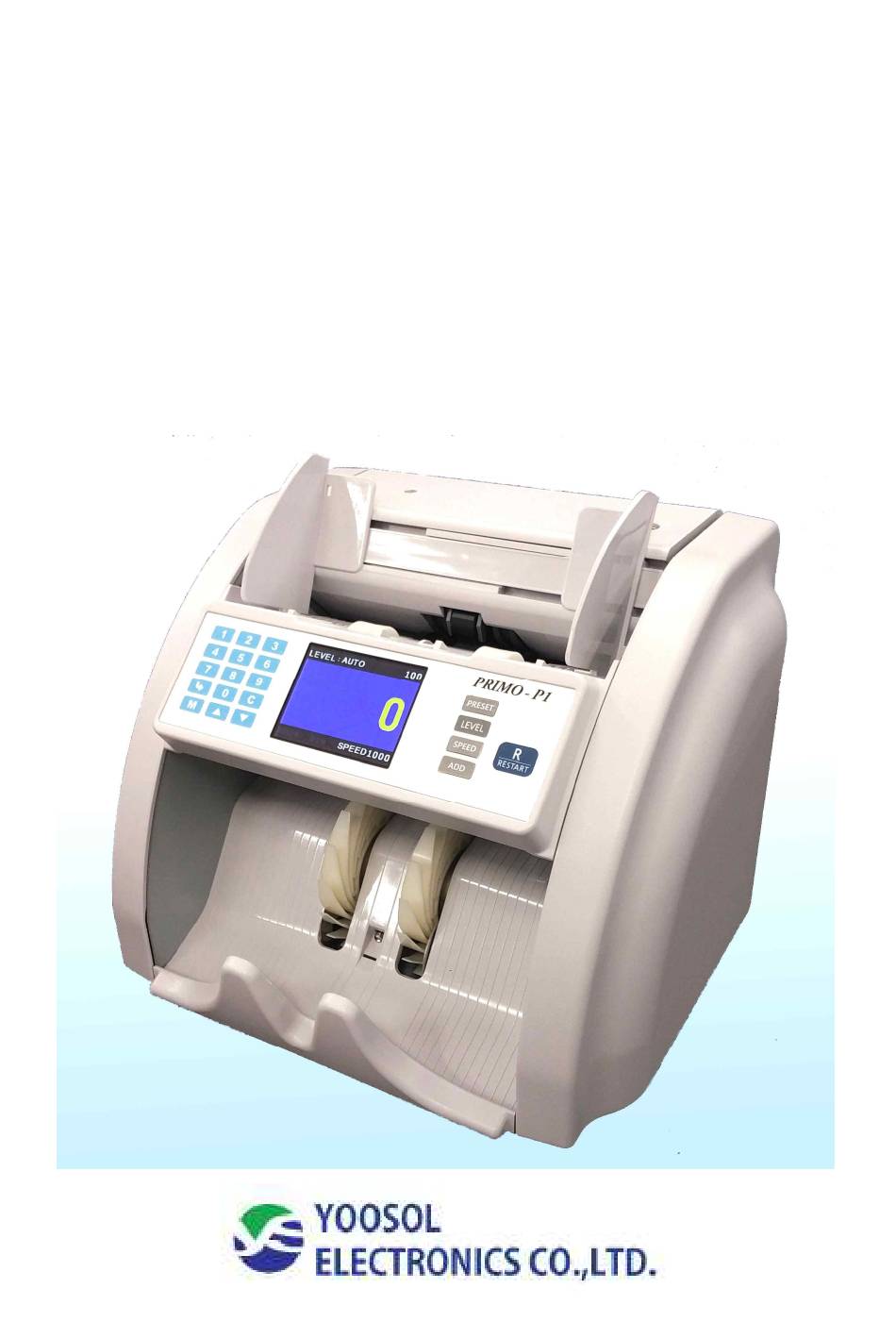

- Page 1 PRIMO- P1/p1u USER MANUAL Rev 1.2...
-
Page 2: Table Of Contents
CONTENTS Specifications Appearance Display / Operation 3-1. Operation/ Preset (Batch) mode 3-2. Operation/ Adjust LEVEL value 3-3. Operation/ Change Speed 3-4. Operation/ Add mode 3-5. Operation/ UV Setting 3-6. Operation/ Alarm Error code / Trouble shooting Accessories / Safety - 2 -... - Page 3 1. Specifications P1/ P1U (Common) Speed 1,000 notes/min (Standard) (4 Selectable speeds) (800 / 1000 / 1250 / 1500 notes/min) Display 2. 8 inch Color LCD (320 x 240 Pixels) Dimension(mm) 292(W) x 251(D) x 244(H) Weight Approx. 5.5Kg Hopper capacity Max.
-
Page 4: Appearance
2. Appearance Name Name Hopper Guide Kicker roller Side Cover Gate adjustment screw Display Power connector Hopper Power Switch Stacker RS232 – Connect External Display(Option) - 4 -... -
Page 5: Operation/ Preset (Batch) Mode
3. Display Func tion Func tion Enter P RE S E T Preset count Set notes density LE V E L Up/Down S P E E D Set count speed Mode Add total count A DD Clear(Reset ) Restart / Back 3-1. -
Page 6: Operation/ Adjust Level Value
Press “PRESET” Key Select Batch number 10, 50, 100, 150, 200, 250 ~ unlimited) By PRISET Key. Also select certain count number by Up/Down key. Default set: 200/notes 3-2. Operation/ Adjust LEVEL value Press LEVEL Key Default set: AUTO - If machine count notes & show “Double error”... -
Page 7: Operation/ Change Speed
3-3. Operation/ Change Speed Adjust Speed - Default speed : 1,000 / min - Change speed 800/1000/1250/1500 notes / min 3-4. Operation/ Add mode Add mode: Accumulative total of all counted bills - 7 -... -
Page 8: Operation/ Alarm
3-5. Operation/ UV mode Set UV – [Option] - Press “M” key to turn on the UV detection (On/ Off) 3-6. Operation/ Alarm Alarm - When sound Alarm, there is Error message show up in red, then machine stop the counting until clear Alarm. - 8 -... -
Page 9: Error Code / Trouble Shooting
Please press “C” key to clear and counting again. * If machine in add mode, added count value also will be clear when you press “C” key. Error code / Trouble shooting Error code Symptoms Trouble shooting Over count Over counting Remove notes from Stacker and count again Double Double... - Page 10 Accessories / Safety NAME Power code External Customer Display User Manual Safety Do not touch the machine & power cable with wet hands Do not operate the machine, if smoke or strange smell is detected from the machine. In this case, please contact your local distributor Never disassemble the machine except the trained person.
- Page 11 - Memo - - 11 -...
- Page 12 Yoosol Electronics Co., Ltd. #1004, ACE High End Tower 6, Gasan-dong 234, Beotkkot-ro, Geumcheon-gu, Seoul Korea Tel: 82-70-7425-1057 Fax: 82-2-2617-9622 Website: http://www.i-primo.co.kr/ E-mail: yoosol@i-primo.co.kr - 12 -...
