PRIMO- P2
1 Pocket Multi value note counter
Operation Manual
Rev 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIMO-P2 and is the answer not in the manual?

Questions and answers

Related Manuals for Yoosol Electronics PRIMO-P2

Summary of Contents for Yoosol Electronics PRIMO-P2

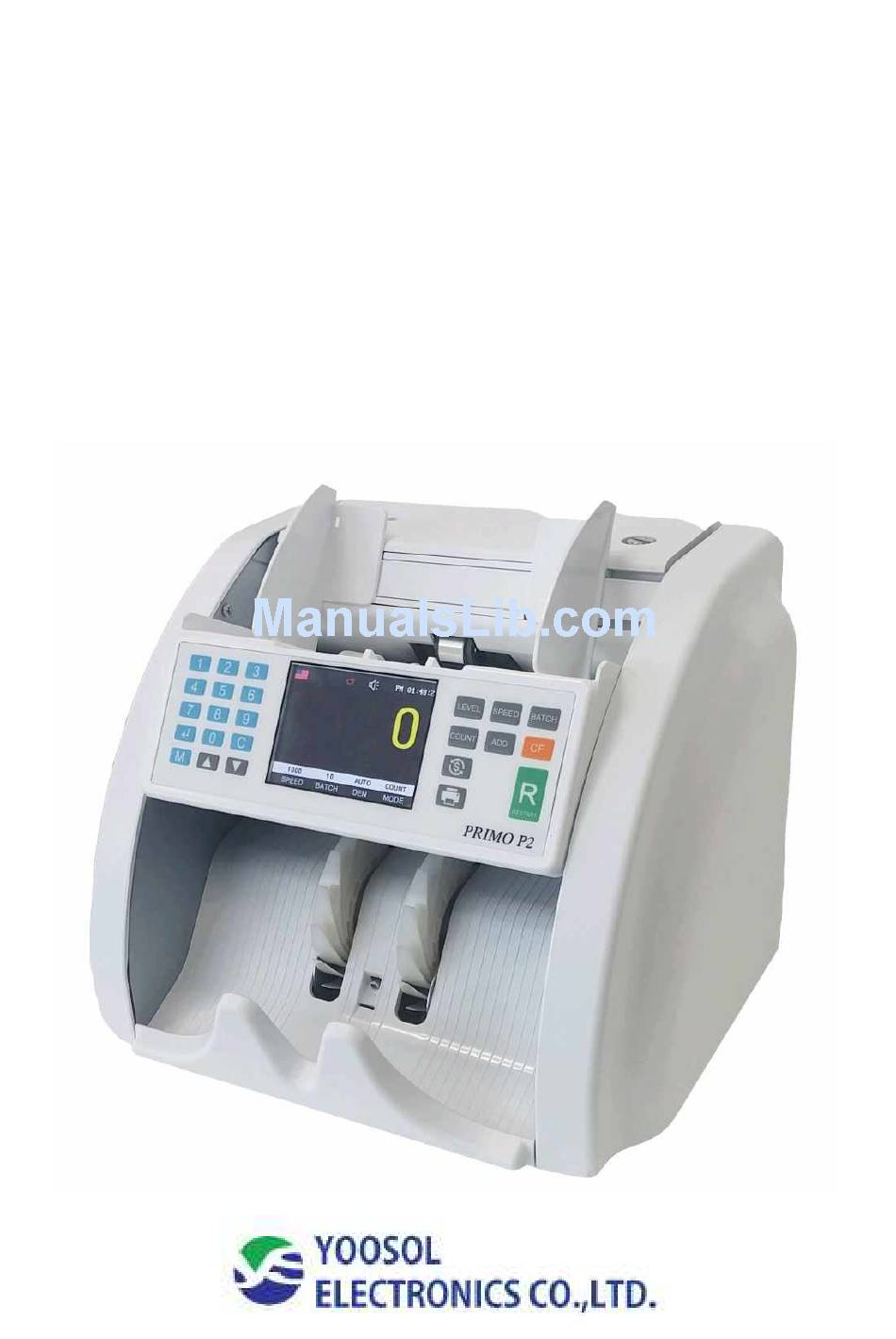

  • Page 1 PRIMO- P2 1 Pocket Multi value note counter Operation Manual Rev 1.1...

  • Page 2: Table Of Contents

    CONTENTS Specifications Appearance Sensor location Display / Operation 4-1. Operation/ Count mode (Piece /Single/ Mix) 4-2. Operation/ Change speed 4-3. Operation/ Batch mode 4-4. Operation/ Currency(CUR) mode 4-5. Operation/ Add mode 4-6. Operation/ CF 4-7. Operation/ Density Setting (Adjustable 9 levels) 4-8.

  • Page 3: Specifications

    1. Specifications Primo P2 1,000 notes/min (Standard) Speed (4 Selectable speeds) (800 / 1000 / 1200 / 1500 notes/min) Count Mode Mixed/Single/Piece count Available currencies USD/EURO/And local currency (up to 8 country) Display 3. 5 inch Color LCD (320 x 240 Pixels) Dimension(mm) 292(W) x 251(D) x 244(H) Weight...

  • Page 4: Appearance

    2. Appearance Name Name Hopper Guide RS232-Image Serial port Hopper RS232-Main Serial port Display USB 2.0 Data collection Side case USB(HOST) - Upgrade Stacker RS232 - Connect CD Kicker roller RS232 - Connect printer Gate adjustment screw Power Switch - 4 -...

  • Page 5: Sensor Location

    3. Sensor location Name Name Stacker sensor 6CH Full line CIS sensor Hopper sensor IR array sensor IR count sensor(In) IR count sensor (Out) MG sensor(6mm x 2 , 66mm x 1) UV sensor - 5 -...

  • Page 6: Operation/ Count Mode (Piece /Single/ Mix)

    4. Display 4-1. Operation/ COUNT mode (Piece / Single/ Mix) Press “COUNT” Key Select count mode as PIECE/ SINGLE/ MIX - 6 -...

  • Page 7: Operation/ Change Speed

    4-2. Operation/ Change Speed Adjust Speed - Default speed : 1,000 / min (Value count & CF detection speed) - 4 Selectable speeds (800/1,000/1,200/1,500 notes / min) Speed 1,500 / min (available for MG & UV detection only) 4-3. Operation/ Batch mode Press “BATCH”...

  • Page 8: Operation/ Currency(Cur) Mode

    4-4. Operation/ Currency(CUR) mode - Press “CUR” to Select Country currency => USD/ EURO/ Local currency 4-5. Operation/ Add mode Add mode: Accumulative total of all counted bills 4-6. Operation/ CF CF(Counterfeit) detection On/ Off - 8 -...

  • Page 9: Operation/ Density Setting (Adjustable 9 Levels)

    4-7. Operation/ Density Setting (Adjustable 9 levels) Press Density Key Default set: AUTO - If machine count notes & show “Double error” many time, you can adjust notes density manually by Density Key. Density Level Double detection Description LV1 ~LV2 Very low It's for high density level(dark) &...

  • Page 10: Operation/ Value List

    4-8. Operation/ Value List Press “Value list” to switch the value count result. (AUTO) Press OK to print out the value list Error code / Trouble shooting Code Display Symptoms Trouble shooting Img1 Poor Img Error Bad or dirty notes Check the condition of notes &...

  • Page 11: Configuration

    6. Configuration - Press “M” key 1. RTC – Real time Clock 2. Density Level Select Density Level & Press OK l Move: M Key l Select: - AUTO/ L1~ L9 l Back: R l Default Value: AUTO - 11 -...
  • Page 12 3. User ID 4. Service Mode * For administrator access only – need password to access - 12 -...
  • Page 13 5. History *Select 5. History and Press OK * USE Up & Down Key to select history date - 13 -...
  • Page 14 Press OK to check Value count list. 6. Etc 1. Language change(Default) - English 2. Auto Count On/ Off 3. Stacker Limit – Stacker will auto stop after count Max 200 notes (On/Off) 4. Buzzer On/Off 5. Default Set – Restore to the factory setting condition Yes/No 6.
  • Page 15 Type [A] display screen Type [B] display screen 7. About l Verify Main firmware / Image firmware version. - 15 -...

  • Page 16: Accessories / Safety

    Accessories / Safety NAME Power cord External Customer Display (Remote display) Operation Manual - Safety - Do not touch the machine and power cable with moist hands If you smell anything burning, immediately disconnect power. And contact to your local agency for a checkup. Never disassemble the machine without trained personnel.
  • Page 17 - MEMO – - 17 -...
  • Page 18 - MEMO – - 18 -...
  • Page 19 - MEMO – - 19 -...
  • Page 20 Yoosol Electronics Co., Ltd. #1004, ACE High End Tower 6, Gasan-dong 234, Beotkkot-ro, Geumcheon-gu, Seoul Korea Tel: 82-70-7425-1057 Fax: 82-2-2617-9622 Website: http://www.i-primo.co.kr/ E-mail: yoosol@i-primo.co.kr - 20 -...
