www.factorycat.com
1711 South Street
Racine, WI 53404 (USA)
(800) 634-4060 | (+001) 262-681-3583
© 2018 RPS Corporation

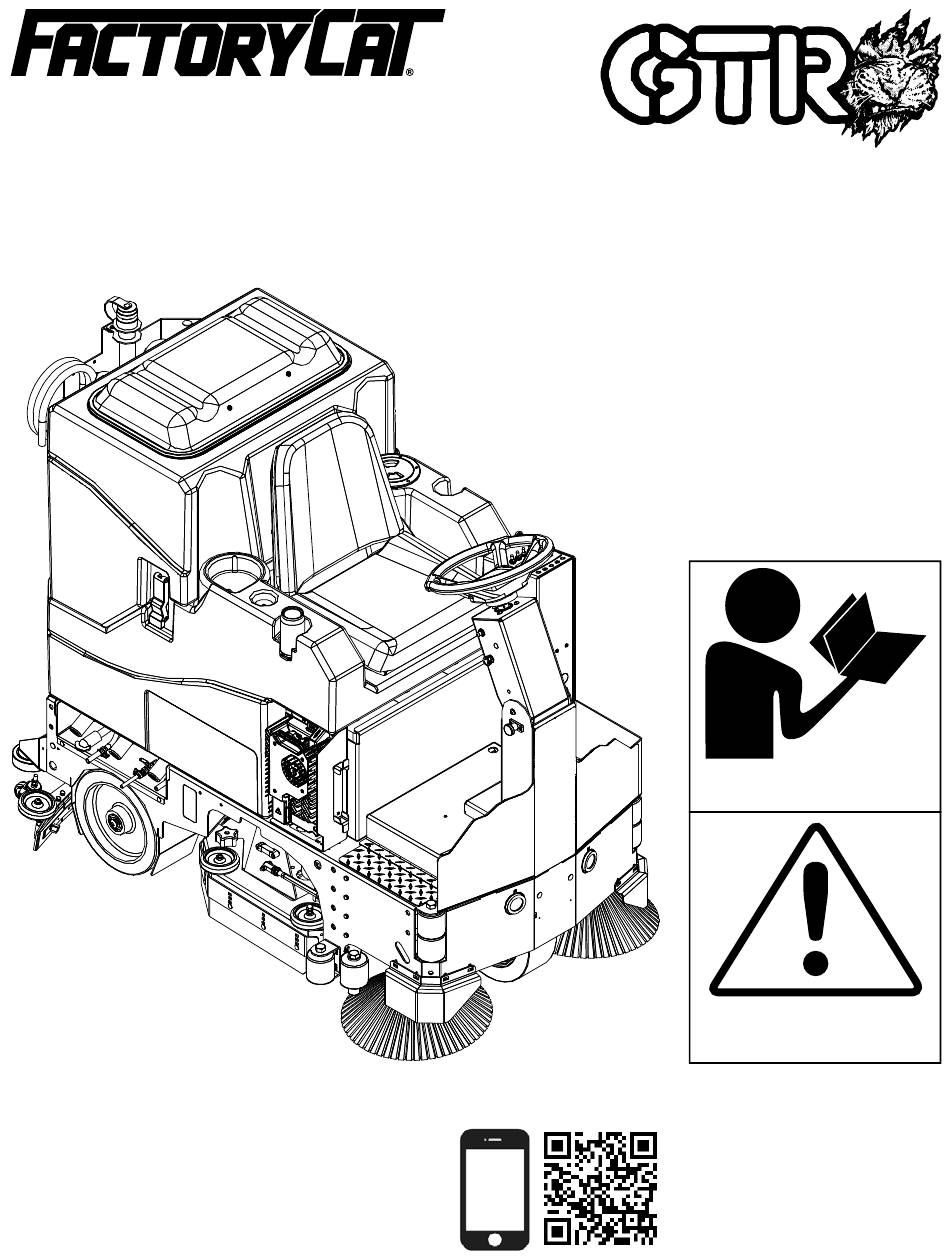

Operating Instructions (EN)
Scan With Phone for more Information
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
FC-GTR-OP-EN
V18.234
Advertisement
Table of Contents
Related Manuals for FactoryCat GTR
Summary of Contents for FactoryCat GTR
- Page 1 Read these Instructions before using the machine. Read these Safety Messages before using the machine. Scan With Phone for more Information www.factorycat.com 1711 South Street Racine, WI 53404 (USA) (800) 634-4060 | (+001) 262-681-3583 V18.234 © 2018 RPS Corporation FC-GTR-OP-EN...
-
Page 2: Introduction
The serial number of your machine is located on the lower half of the steering column of the machine. AS OUR POLICY IS ONE OF CONSTANT IMPROVEMENT - ALL INFORMATION AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. - 2 - FC-GTR-OP-EN... -
Page 3: Table Of Contents
Headlights & Work-lights (Optional) Charge Batteries Side Broom System (Optional) Battery Chargers RPM Mode Switch (Optional) Common Wear Parts Round Disk Brushes: Battery Setup Round Disk Pads: Cylindrical Brushes: Remove Squeegee P&G Controller Common Error Codes Adjust Squeegee FC-GTR-OP-EN - 3 -... -
Page 4: Safety Messages
An open fl ame or spark can cause this gas Do not use fl ammable materials in Tank or pick up. to explode. Serious personal injury or property damage could occur. Only charge the Batteries in this machine in a well ventilated area. - 4 - FC-GTR-OP-EN... - Page 5 Do not operate this machine if any parts have been controller. damaged or removed. CAUTION To avoid damage to the electronic control components of this machine, Do not store this machine outdoors. Do not pressure wash this machine. FC-GTR-OP-EN - 5 -...
-
Page 6: Safety Labels
CHINE IN A WELL VENTILATED AREA. USE ONLY DISTILLED WATER IN THE BATTERIES. USE ONLY THE OEM CHARGER PROVIDED WITH THE MA- CHINE. ALWAYS DISCONNECT THE BATTERY BEFORE SERVICING THE MACHINE. REFER TO MANUAL OR CALL +011-262-681-3583 - 6 - FC-GTR-OP-EN... -
Page 7: Lcd Screen
10. VACUUM HOUR METER - Indicates total hours the vacuum motor has been used 11. DIAGNOSTIC CODE - Displays diagnostic code which helps troubleshoot issues 12. ERROR WARNING SYMBOL - Indicates when there has been a diagnostic code error FC-GTR-OP-EN - 7 -... -
Page 8: Operation Controls
OPERATION CONTROLS EMERGENCY STOP - 8 - FC-GTR-OP-EN... -
Page 9: Operation Controls
OPERATION CONTROLS FC-GTR-OP-EN - 9 -... -
Page 10: Operation Controls
OPERATION CONTROLS 12 13 100% - 10 - FC-GTR-OP-EN... -
Page 11: Service Cabinet
fl ow from the blue hose. Indicates service required. 22. SUDS DRAIN: 23. ZERO3 FILTER: 24. BATTERY DRAIN: Drain detergent from Suds Optional Z O3 (O3+) Ozone Drain any fl uid from Poly reservoir. System Solution Filter. Battery Box. FC-GTR-OP-EN - 11 -... -
Page 12: Spray Jet Controls (Optional)
SPRAY JET CONTROLS (OPTIONAL) - 12 - FC-GTR-OP-EN... -
Page 13: Suds Controls (Optional)
SUDS CONTROLS (OPTIONAL) O - OFF 250:1 (~0.5oz / gal [~4ml / 1L]) - “Single Dose” 125:1 (~1oz / gal [~8ml / 1L]) - “Double Dose” FC-GTR-OP-EN - 13 -... -
Page 14: Zer O3 Controls (Optional)
O3 CONTROLS (OPTIONAL) 100% - Yellow/Green Lights ON O - OFF 65% - Green Light ON Turn regular solution OFF, when using Z Aqueous Ozone. - 14 - FC-GTR-OP-EN... -
Page 15: Manager Lock Outs (Optional)
MANAGER LOCK OUTS (OPTIONAL) CONTROLLING MANAGER LOCK OUTS: When the key is in the LOCKED position, keys can be removed and Solution OR Down-pressure cannot be adjusted. UNLOCKED LOCKED FC-GTR-OP-EN - 15 -... -
Page 16: Headlights & Work-Lights (Optional)
HEADLIGHTS & WORK-LIGHTS (OPTIONAL) HEADLIGHTS ON HEADLIGHTS ON HEADLIGHTS & REAR WORK-LIGHTS ON HEADLIGHTS & REAR WORK-LIGHTS ON - 16 - FC-GTR-OP-EN... -
Page 17: Side Broom System (Optional)
SIDE BROOM SYSTEM (OPTIONAL) FC-GTR-OP-EN - 17 -... -
Page 18: Rpm Mode Switch (Optional)
RPM MODE SWITCH (OPTIONAL) 100% 100% 100% RPM 100% RPM 100% RPM 100% RPM 80% RPM 80% RPM 80% RPM 80% RPM - 18 - FC-GTR-OP-EN... -
Page 19: Battery Setup
If battery acid gets on your face or in your eyes, fl ush the area immediately with cold water and Batteries are a possible environmental hazard. Consult seek medical attention. your Battery supplier for safe disposal methods. FC-GTR-OP-EN - 19 -... -
Page 20: Remove Squeegee
REMOVE SQUEEGEE - 20 - FC-GTR-OP-EN... -
Page 21: Adjust Squeegee
ADJUST SQUEEGEE FC-GTR-OP-EN - 21 -... -
Page 22: Remove From Charger
REMOVE FROM CHARGER Please refer to OEM Charger Operating Instructions for more information. - 22 - FC-GTR-OP-EN... -
Page 23: Transportation - Forward
TRANSPORTATION - FORWARD 0 - 3.3mph (0 - 5.3 kph) FC-GTR-OP-EN - 23 -... -
Page 24: Transportation - Reverse
TRANSPORTATION - REVERSE 0 - 1.6mph (0 - 2.6 kph) - 24 - FC-GTR-OP-EN... -
Page 25: Fill Solution Tank
EXPLOSION RISK! TO AVOID DAMAGE TO THIS MACHINE: ˚F/ 54˚ REFER TO MANUAL OR CALL +011-262-681-3583 46 Gal. ( 162 l ) 46 Gal. ( 162 l ) < 130°F / 54°C < 130°F / 54°C FC-GTR-OP-EN - 25 -... -
Page 26: Operation - Scrubbing
OPERATION - SCRUBBING - 26 - FC-GTR-OP-EN... -
Page 27: Draining Recovery Tank
WASTE WATER DRAINS ONLY! DRAINING RECOVERY TANK WASTE WATER DRAINS ONLY! NOTICE Drain “clean” Solution & “dirty” Recovery solution into APPROVED drains FC-GTR-OP-EN - 27 -... -
Page 28: Draining Solution Tank
WASTE WATER DRAINS ONLY! DRAINING SOLUTION TANK WASTE WATER DRAINS ONLY! NOTICE Drain “clean” Solution & “dirty” Recovery solution into APPROVED drains - 28 - FC-GTR-OP-EN... -
Page 29: Flushing Recovery Tank
FLUSHING RECOVERY TANK FC-GTR-OP-EN - 29 -... -
Page 30: Clean Drain Saver
CLEAN DRAIN SAVER - 30 - FC-GTR-OP-EN... -
Page 31: Clean Cylindrical Hopper
CLEAN CYLINDRICAL HOPPER FC-GTR-OP-EN - 31 -... -
Page 32: Clean Vac Box System
CLEAN VAC BOX SYSTEM - 32 - FC-GTR-OP-EN... -
Page 33: Remove Disk Brushes
REMOVE DISK BRUSHES Rotate after 25 hrs Replace brush when fi bers reach 1/4 inch in length FC-GTR-OP-EN - 33 -... -
Page 34: Remove Cylindrical Brushes
REMOVE CYLINDRICAL BRUSHES Rotate after 25 hrs Replace brush when fi bers reach 1/4 inch in length - 34 - FC-GTR-OP-EN... -
Page 35: Parking Brake
Do not park this machine on ramps or slopes. Always park this machine on a level, hard surface. Do not operate this machine outdoors or on uneven surfaces. WARNING Understand the dynamic braking system before you operate the machine on ramps. Machine may coast. FC-GTR-OP-EN - 35 -... -
Page 36: Charge Batteries
Explosive hydrogen gas forms when Batteries are charging. An open fl ame or spark can cause this gas to explode. Serious personal injury or property damage could occur. Only charge the Batteries in this machine in a well ventilated area. - 36 - FC-GTR-OP-EN... -
Page 37: Battery Chargers
Please refer to OEM Charger Operating Instructions for more information. Onboard / AGM / International Chargers: AC Power: 80-270VAC / 50-60Hz DC Power OUT: 36VDC / 33A Please refer to OEM Charger Operating Instructions for more information. FC-GTR-OP-EN - 37 -... -
Page 38: Common Wear Parts
MODEL 29'' MODEL 33'' BRUSHES CYLINDRICAL CYLINDRICAL LEVEL Tough Grit 276-697S 316-697S High Midi Grit 276-697C 316-697C Medium Light Grit 276-697PS 316-697PS Moderate Fine Grit 276-697F 316-697F Light Nylon 276-697N 316-697N Light Tampico 276-697T 316-697T Light - 38 - FC-GTR-OP-EN... - Page 39 Squeegee blade kits include (1) Rear Blade & (1) Front Squeegee Assemblies (complete) listed above all come Blade. with Linatex blades. NOTICE Size is stamped into the top of the painted steel squeegee body on all squeegee's. FC-GTR-OP-EN - 39 -...
-
Page 40: P&G Controller Common Error Codes
The switch at the charger plug for an external charger is out of adjustment. (Operator is not present on seat GTR and EX machines Prior to Serial Number 100xxx) 7500 LCD Communication Error The LCD lost communication to the controller. - Page 41 BLANK THIS PAGE WAS INTENTIONALLY LEFT BLANK...
- Page 42 1711 South Street Racine, WI 53404 www.factorycat.com Tel. US: 800-634-4060 Tel. Int: (001) 262-681-3583 © RPS Corporation 2018...
