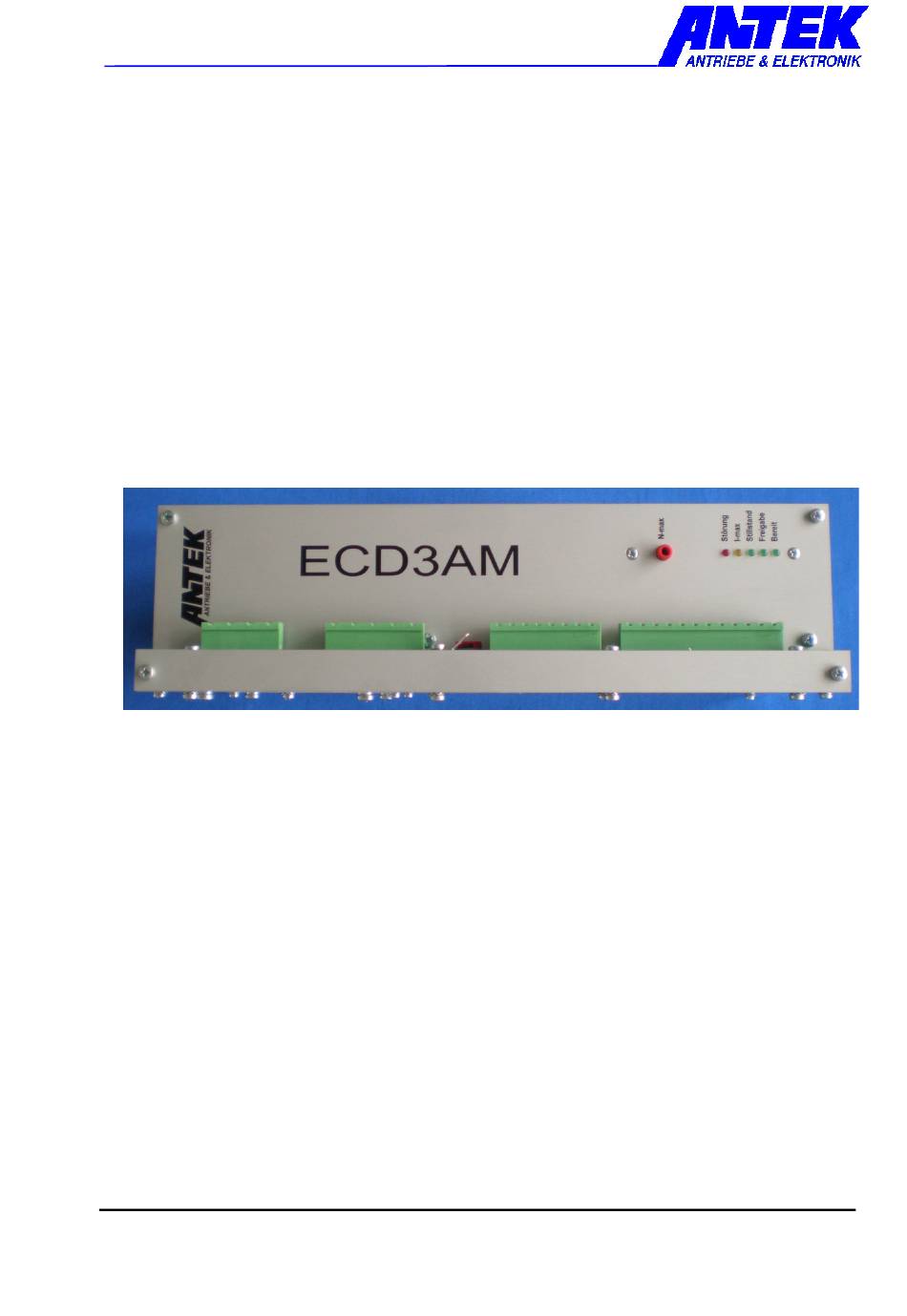

- Page 1 Operating Manual Retrofit Speed-Controller Type ECD3AM-00-00 Replacement for ECdrive Type D400B001, Ziehl-Abegg Operating Manual ECD3AM-00-00 Page 1 of 13 (07/16) R0117AGB...
-
Page 2: Table Of Contents
3.8 C ODING JUMPERS INTERNALLY 3.9 B LOCK DIAGRAM 4. MANUFACTURER’S DECLARATION -Errors and revisions are reserved- ANTEK GmbH Im Köchersgrund 1 71717 Beilstein +49 7062 94060 +49 7062 940620 info@antek-online.de www.antek-online.de Operating Manual ECD3AM-00-00 Page 2 of 13 (07/16) R0117AGB... -
Page 3: Safety Information
When servicing the unit, first ensure that there is equipotential bonding (static charging) between the unit, tools, measuring instruments and personnel. Take hold of the modules only by the edges; do not touch the components or their connections. Operating Manual ECD3AM-00-00 Page 3 of 13 (07/16) R0117AGB... -
Page 4: Technical Data
Control range: 1 : 40 Device version IP20 Standards and regulations: see Page 13 In relation to the mains voltage 400 VAC Losses in 3A and phase current 12 kHz clock frequency Operating Manual ECD3AM-00-00 Page 4 of 13 (07/16) R0117AGB... -
Page 5: Dimensions
2.2 Dimensions Operating Manual ECD3AM-00-00 Page 5 of 13 (07/16) R0117AGB... -
Page 6: Installation
♦ Set point input, analog control inputs and measurement outputs are to be laid with shielded cables. ♦ Conductor diameters for power supply and motor wiring must be at least 1,5 mm²! ♦ Observe the current local safety regulations Operating Manual ECD3AM-00-00 Page 6 of 13 (07/16) R0117AGB... -
Page 7: Information On Emc
Generally all metallic conducting parts which can be connected to a protective conductor, such as cabinet frames, motor frames, foundation grounding, etc. are designated as a ground. Operating Manual ECD3AM-00-00 Page 7 of 13 (07/16) R0117AGB... -
Page 8: Electrical Connection Controller
7 = Controller enable Stand still Enable 8 = Direction of rotation Ready 9 = Com. – Opt. in 10 = Set point (0...10 V) 11 = Set point (GND) 12 = Shield Operating Manual ECD3AM-00-00 Page 8 of 13 (07/16) R0117AGB... -
Page 9: Operating - And Display Elements
Setting the maximum speed 1. Maximum set point voltage (10V) preset. 2. On trimmer "n-max" adjust the required max. speed Setting range: about 1600-3100 U / min1 Factory setting: 3000 min-1 Operating Manual ECD3AM-00-00 Page 9 of 13 (07/16) R0117AGB... -
Page 10: Adjustments Internal
10V) preset at set point input and adjust with trimmer "tH" or "tR" the required speed ramp. Setting range: 100 ms ... 2 s Factory setting: 100 ms Internally Signal after set point jump set point Operating Manual ECD3AM-00-00 Page 10 of 13 (07/16) R0117AGB... -
Page 11: Coding - Jumpers Internally
8 A, otherwise the motor or the control device could be destroyed. Is the bridge put in position a, for damage caused to the engine or controller, no liability is assumed. STB2, STB3 not in use! Operating Manual ECD3AM-00-00 Page 11 of 13 (07/16) R0117AGB... -
Page 12: Block Diagram
PWM n-max STB1 brake current stand still I-max limit > 1 > 1 pulse generator optional internal voltage switching power monitoring supply potential free -heatsink temperature -UZK Output -UZK +15V +10V Operating Manual ECD3AM-00-00 Page 12 of 13 (07/16) R0117AGB... -
Page 13: Manufacturer's Declaration
4.Manufacturer’s declaration The manufacturer, ANTEK GmbH, herewith declares that the drive regulator ECE3AP must be used as a component of the control equipment for variable speed motors to be installed in a machine or to be used for the construction of a machine together with other components.
