HWg-SMS-GW3 manual

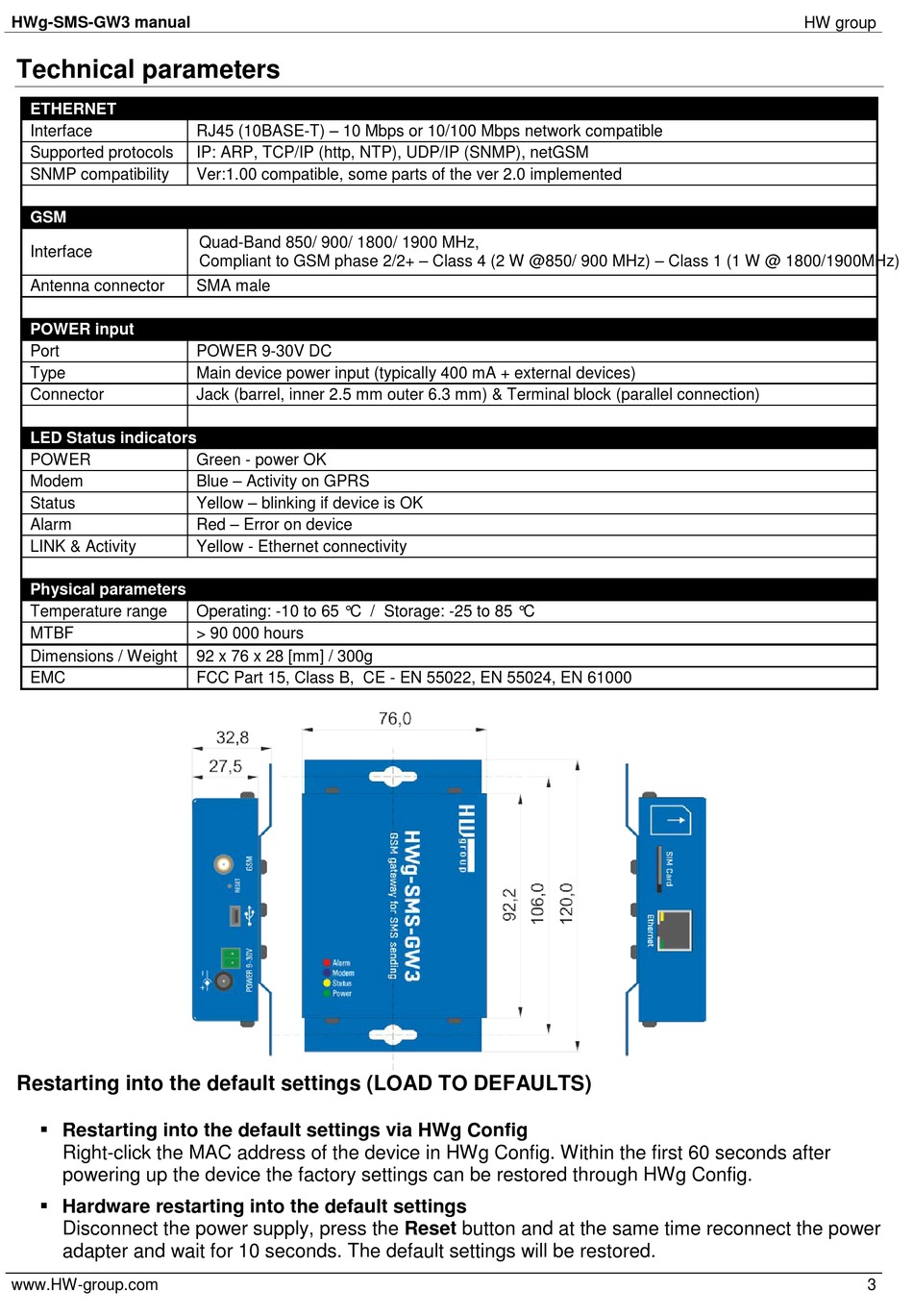

Technical parameters

ETHERNET
Interface
Supported protocols
SNMP compatibility
GSM
Interface
Antenna connector
POWER input
Port
Type
Connector
LED Status indicators
POWER
Modem
Status
Alarm
LINK & Activity
Physical parameters
Temperature range
MTBF
Dimensions / Weight
EMC
Restarting into the default settings (LOAD TO DEFAULTS)
 Restarting into the default settings via HWg Config
Right-click the MAC address of the device in HWg Config. Within the first 60 seconds after
powering up the device the factory settings can be restored through HWg Config.
 Hardware restarting into the default settings
Disconnect the power supply, press the Reset button and at the same time reconnect the power
adapter and wait for 10 seconds. The default settings will be restored.
www.HW-group.com
RJ45 (10BASE-T) – 10 Mbps or 10/100 Mbps network compatible
IP: ARP, TCP/IP (http, NTP), UDP/IP (SNMP), netGSM
Ver:1.00 compatible, some parts of the ver 2.0 implemented
Quad-Band 850/ 900/ 1800/ 1900 MHz,
Compliant to GSM phase 2/2+ – Class 4 (2 W @850/ 900 MHz) – Class 1 (1 W @ 1800/1900MHz)
SMA male
POWER 9-30V DC
Main device power input (typically 400 mA + external devices)
Jack (barrel, inner 2.5 mm outer 6.3 mm) & Terminal block (parallel connection)
Green - power OK
Blue – Activity on GPRS
Yellow – blinking if device is OK
Red – Error on device
Yellow - Ethernet connectivity
Operating: -10 to 65 °C / Storage: -25 to 85 °C
> 90 000 hours
92 x 76 x 28 [mm] / 300g
FCC Part 15, Class B, CE - EN 55022, EN 55024, EN 61000
