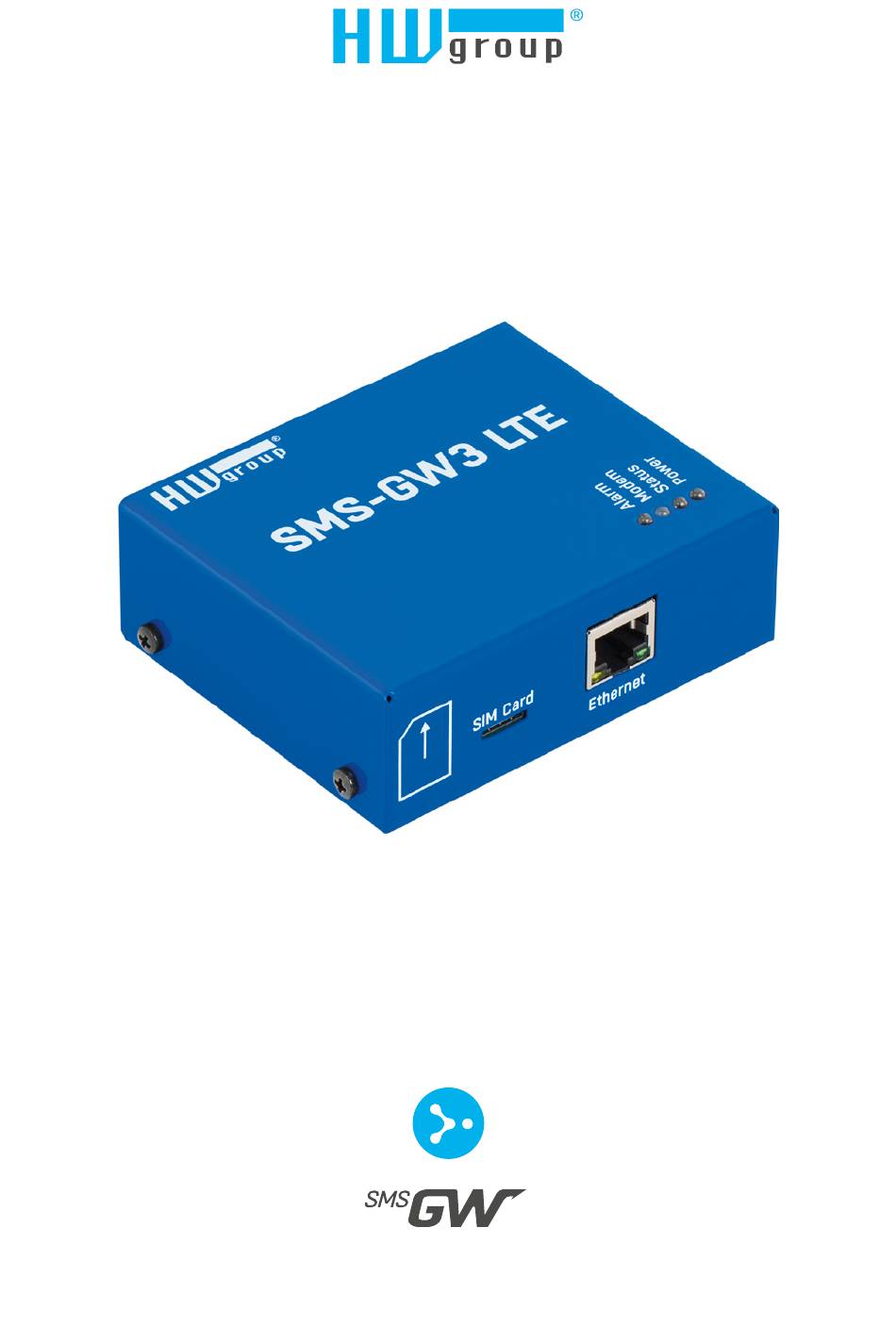

- Page 1 SMS-GW3 LTE – User manual...
-
Page 2: Safety Information
The manufacturer warrants the device only if it is powered by the supplied power adapter or an approved power supply. If you have any problems with installing or operating the device, please contact technical support: HW group s. r. o. http://www.hw-group.com Formanská 296 E-mail: support@HWg.cz... -
Page 3: Table Of Contents
Table of contents Safety information Recommended connection Technical parameters Mechanical parameters Restarting into the default settings (Load to defaults) First start Connecting the cables IP address settings – HWg Config Open the WEB setup of the device WEB interface Home SMS Queue General Setup Time... -
Page 4: Recommended Connection
Recommended connection SMS-GW3 LTE allows sending of alarm SMS messages from any number of connected HW group devices via a single GSM modem with netGSM. Ring + SMS Poseidon2 4002 SMS-GW3 LTE IP Watchdog2 Industrial Setting up SMS-GW3 LTE with devices that support it: 1) Insert a SIM card. -
Page 5: Technical Parameters
Technical parameters Ethernet Interface RJ45 (10BASE-T) – 10 Mbps or 10/100 Mbps network compatible Supported protocols IP: ARP , TCP/IP (http, NTP), UDP/IP (SNMP), netGSM SNMP compatibility Ver. 1.00 compatible, some parts of the ver. 2.0 implemented Connection FDD LTE bands: B1/B3/B5/B7/B8/B20 WCDMA bands: B1/B5/B8 GSM bands: 900/1800 GPRS multi-slot class 12 Class 4 (33 dBm + - 2 dB) for GSM900... -
Page 6: Mechanical Parameters
SIM Card Ethernet 120,0 mm 106,0 mm 92,2 mm SMS-GW3 LTE Restarting into the default settings (Load to defaults) Restarting into the default settings via HWg Config • – right-click the MAC address of the device in HWg Config. Within the first 60 seconds after powering up the device the factory settings can be restored through HWg Config. -
Page 7: First Start
First start Connecting the cables • Note down the MAC address of the device, printed on the side of the unit. • Connect HWg-SMS-GW to the Ethernet network. • Plug the power adapter and connect it to a connector on the device. •... -
Page 8: Open The Web Setup Of The Device
Open the WEB setup of the device Enter IP address of the device directly into an internet browser. Or open the web setup via HWg-Config. Click the underlined IP address, or through the context menu (as shown on the picture). Click HWg-SMS-GW3 First start... -
Page 9: Web Interface
WEB interface Home Base Information Device name • – User-defined name. This can be set on the General Setup tab. Time • – Unit time – settings can be changed on the Time tab. Correct time is usually obtained from an online server. Date •... -
Page 10: Sms Queue
SMS Queue Displays the queues of incoming and outgoing messages. Messages already sent are not shown here. SMS Input Queue Displays the incoming message queue. • – ID of the incoming message. Phone Number • – sender's phone number. Time •... -
Page 11: General Setup
– enables automatic setting of an IP address by a DHCP server, if available – enabling and disabling this function depends on actual requirements of the network users and administrators. • IP Address – IP address of the SMS-GW3 LTE – assigned by the network administrator. Network Mask • – assigned by the network administrator. -
Page 12: Time
WWW Security Username / Password – login details used for accessing SMS-GW3 LTE settings. NetGSM (SOAP) security Username / Password – username and password for sending text messages over SOAP . Time Current Time Time • – shows actual time. -
Page 13: Gsm Modem
Time Zone • – sets the time zone where the SMS-GW3 LTE is located – used for setting the correct system time. Necessary for correct data logging. Synchronize Time • – used for an immediate synchronisation with a time server. Can be also used to test the entered settings. -
Page 14: Snmp
Number of failures SMS • – number of unsent messages (invalid phone number etc.). Number of Ringout • – number of dialed calls. Number of failures Ringout • – number of unsuccessfully dialed calls (invalid phone number etc.). Configuration • SIM PIN –... -
Page 15: System
General SNMP Settings • System Name – device name, corresponds with the device name set on the General setup tab. • System Location – system location, for instance „IT room, 2nd floor“. • System Contact – system administrator contact details, for instance his email address. •... - Page 16 Download • Backup bin configuration – by clicking the link you can save the actual SMS-GW3 LTE configura- tion and later restore this configuration. • Backup xml configuration – by clicking the link you can save the actual SMS-GW3 LTE configura- tion and later restore this configuration.
-
Page 17: Using Sensdesk.com Service
Using SensDesk.com service SensDesk.com service is an online portal for HW group IP sensors monitoring. SensDesk.com can send email notifications in case an alarm is detected. SMS-GW3 LTE can be used for sending SMS notifications. Set IP address of your HWg-SMS-GW in the account settings: SensDesk.com: My Account >>... - Page 18 Set the recipient phone number for each single sensor, for sending alarm SMS messages from: SensDesk.com: Sensors >> Edit Note: SMS-GW3 LTE must be accessible on a public IP address in order to send SMS alarms from your SensDesk.com account. HWg-SMS-GW3...
-
Page 19: Using Sms Gateway With Nagios
Using SMS gateway with Nagios Sending notifications from Nagios using SMS gateway SMS-GW3 LTE. A plug-in for SMS-GW3 LTE, created in cooperation with Netways, allows sendong SMS messages from Nagios system. Plugin config SMS-GW3 LTE Nagios plug-in notify-poseidon-sms.pl takes notifications about changes on the monitored devi- ces and transfers them via HTTP protocol to HWg-SMS-GW, which then sends an SMS message. -
Page 20: Nagios Settings
Send a test SMS to verify the functions of the plug-in and SMS-GW3 LTE. Parametr -H specifies an IP address of the SMS-GW3 LTE device designated for sending the SMS messages. Enter the recipients phone number for receiving the message using the -D parameter. - Page 21 define contact { peter-gsm contact_name alias Peters GSM phone service_notification_period 24x7 host_notification_period 24x7 service_notification_options w,u,c,r host_notification_options service_notification_commands notify-service-by-sms host_notification_commands notify-host-by-sms +420777888999 pager define contactgroup { contactgroup_name alias Notifications via SMS peter-gsm members Note: In case you want to send notifications to multiple phone numbers, create a contact for every phone number and enter each contact into a memebers parameters in a contactgroup (divided with , ).
-
Page 22: Using The Product With Your Application
Adding SMS notification options to selected sevices and services can be done in their definition, by adding a contact_groups parameter, for example: define host { generic-host host_name localhost localhost alias address 127.0.0.1 contact_groups admins,sms define service { generic-service host_name localhost service_description Disk Space check_command... - Page 23 Other HW group devices from Monitoring category Poseidon2 Poseidon2 3266/3268 3468 The basic unit for monitoring temperature, Remote monitoring of temperature, humidity humidity and other enviromental conditions and other enviromental conditions in across LAN. industrial design. Poseidon2 Damocles2 4002 2404...
- Page 24 HW group s. r. o. Formanská 296 Prague, 149 00 Czech Republic Phone: +420 222 511 918 Fax: +420 222 513 833 www.HW-group.com...
