Summary of Contents for HW Group HWg-SMS-GW3

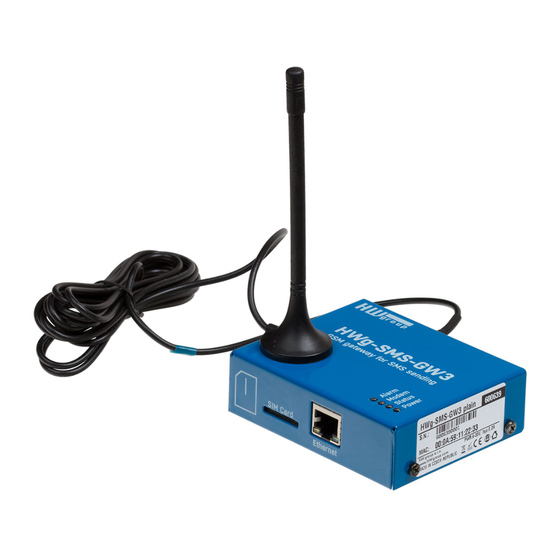

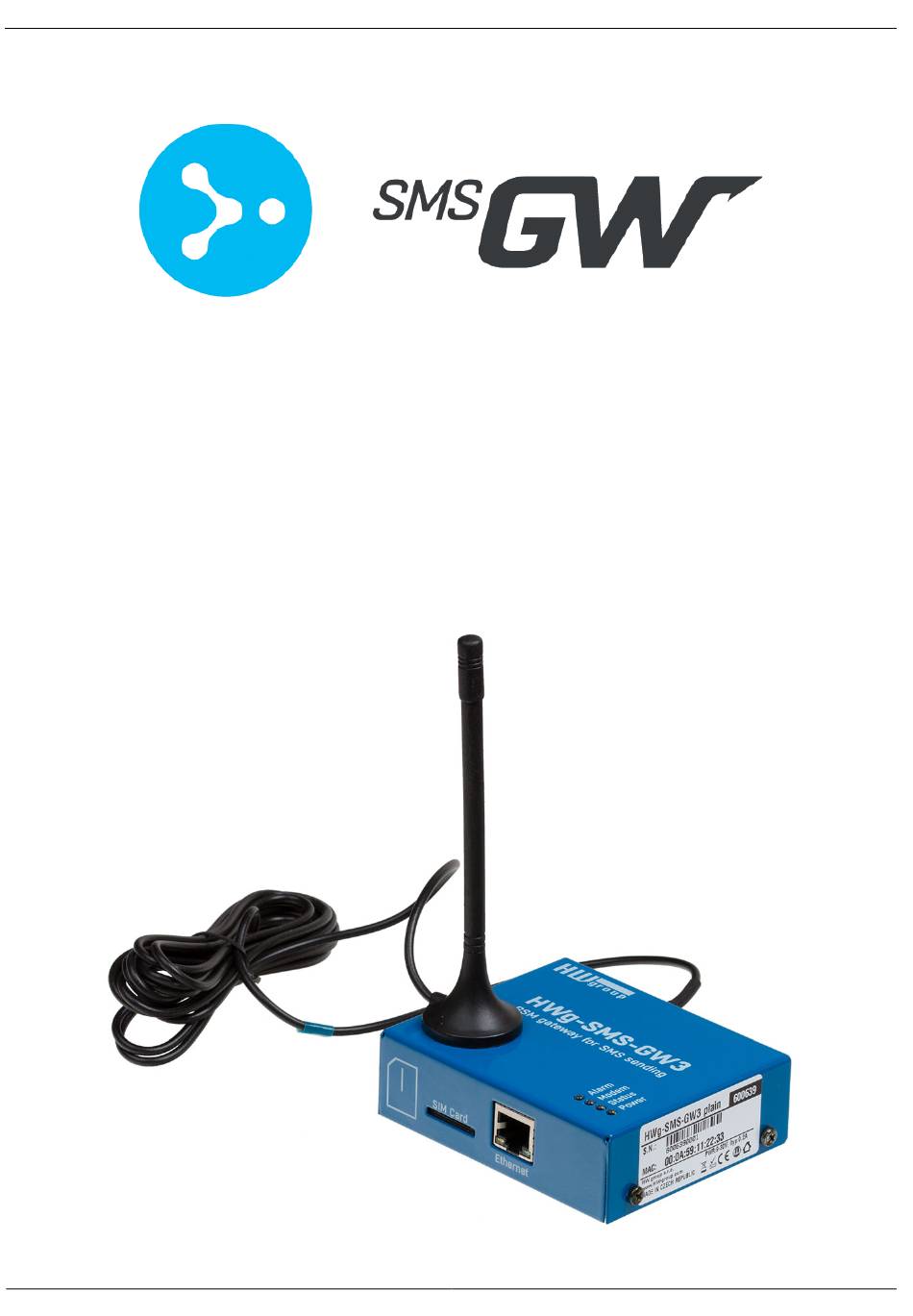

- Page 1 HWg-SMS-GW3 manual HW group HWg-SMS-GW3 An SMS gateway for HW group products www.HW-group.com...
-
Page 2: Recommended Connection
HWg-SMS-GW3 manual HW group Recommended connection HWg-SMS-GW allows sending of alarm SMS messages from any number of connected HW group devices via a single GSM modem with netGSM. 1) Insert a SIM card (with disabled PIN security). 2) Lanch HWg Config and get the assigned... -
Page 3: Technical Parameters
HWg-SMS-GW3 manual HW group Technical parameters ETHERNET Interface RJ45 (10BASE-T) – 10 Mbps or 10/100 Mbps network compatible Supported protocols IP: ARP, TCP/IP (http, NTP), UDP/IP (SNMP), netGSM SNMP compatibility Ver:1.00 compatible, some parts of the ver 2.0 implemented Quad-Band 850/ 900/ 1800/ 1900 MHz, Interface Compliant to GSM phase 2/2+ –... -
Page 4: First Start
HWg-SMS-GW3 manual HW group First start Connecting the cables Note down the MAC address of the device, printed on the side of the unit. Set DIP switches to DIP1=Off, DIP2=Off. Connect HWg-SMS-GW to the Ethernet network. Plug the power adapter and connect it to a connector on the device. -
Page 5: Ip Address Settings - Hwg Config
HWg-SMS-GW3 manual HW group IP address settings - HWg Config HWg Config application - main directory on the attached CD (Windows / Linux version). The software can be downloaded from www.HW-group.com Software -> HWg Config. Start HWg-Config by clicking on its icon –... -
Page 6: Web Interface
HWg-SMS-GW3 manual HW group WEB interface Home Basic Information section Device name – User-defined name. This can be set on the General Setup tab Time – Unit time – settings can be changed on the Time tab. Correct time is usually obtained from an online server ... - Page 7 HWg-SMS-GW3 manual HW group SMS Queue Info Pending Message / Capacity – A number of pending messages / queue capacity Message Sent – Amount of sent messages (since the last power-up) Messages Dropped – Amount of dropped messages (since the last power-up)
-
Page 8: General Setup
• IP Address – IP address of the HWg-SMS-GW3 – assigned by the network administrator. • Network Mask – assigned by the network administrator. • Gateway – IP address of a default gateway– assigned by the network administrator. - Page 9 Necessary for correct data logging. • Time Zone – sets the time zone where the HWg-SMS-GW3 is located – used for setting the correct system time. Necessary for correct data logging. • Synchronise Time is used for an immediate synchronisation with a time server. Can be also used to test the entered settings.
-
Page 10: Gsm Modem
HWg-SMS-GW3 manual HW group Time Setup section Time Setup section allows you to enter actual time and date manually, in case you cannot use the synchronisation with a time server. This information is erased after loosing the power supply. GSM Modem Information section ... - Page 11 HWg-SMS-GW3 manual HW group Test SMS section Tel Number – recipients phone number for test SMS sending Text – content of the test SMS Send SMS Test - Verifies the functionality and sends a test SMS to the selected phone number.
- Page 12 HWg-SMS-GW3 manual HW group SNMP General SNMP Settings • System Name – Device name, corresponds with the device name set on the General setup • System Location – System location, for instance „IT room, 2nd floor.“ • System Contact – System administrator contact details, for instance his Email address •...
- Page 13 • Backup configuration – by clicking the link you can save the actual HWg-SMS-GW3 configuration and later restore this configuration. • Backup XML configuration – by clicking the link you can save the actual HWg-SMS-GW3 configuration and later restore this configuration.
- Page 14 HWg-SMS-GW3 manual HW group • SNMP MIB Table – SNMP MIB file – address of a MIB file, containing definition of SNMP variables. • List of common SNMP OIDs – a list of the most frequently used OIDs from the MIB chart.
-
Page 15: Using Sensdesk.com Service
HWg-SMS-GW3 manual HW group Using SensDesk.com service SensDesk.com service is an online portal for HW group IP sensors monitoring. SensDesk.com can send Email notifications in case an alarm is detected. HWg-SMS-GW can be used for sending SMS notifications. 1) Set IP address of your HWg-SMS-GW in the account settings. -
Page 16: Using Sms Gateway With Nagios
HWg-SMS-GW3 manual HW group Using SMS gateway with Nagios Sending notifications from Nagios using SMS gateway HWg-SMS-GW. A plug-in for HWg-SMS-GW, created in cooperation with Netways, allows sendong SMS messages from Nagios system. Nagios plug-in notify-poseidon-sms.pl takes notifications about changes on the monitored devices and transfers them via HTTP protocol to HWg-SMS-GW, which then sends an SMS message. -
Page 17: Nagios Settings
HWg-SMS-GW3 manual HW group 2.2) Send a test SMS to verify the functions of the plug-in and HWg-SMS-GW. Parametr -H specifies an IP addresuś of the HWg-SMS-GW device designated for sending the SMS messages. Enter the recipients phone number for receiving the message using the -D parameter. - Page 18 HWg-SMS-GW3 manual HW group 3.2) Define contacts and contact groups for SMS messaging in a file /etc/nagios3/conf.d/contacts_nagios.cfg. define contact { contact_name peter-gsm alias Peters GSM phone service_notification_period 24x7 host_notification_period 24x7 service_notification_options w,u,c,r host_notification_options service_notification_commands notify-service-by-sms host_notification_commands notify-host-by-sms pager +420777888999 define contactgroup {...
-
Page 19: Using The Product With Your Application
In case you want to use this product with your application, use the HWg-SDK (Software Development Kit). The SDK kit cotnains commented examples of the source codes for various programming languages. Eventually please contact HW group regarding the netGSM protocol documentation. www.HW-group.com EX131: SMS GW Client (Borland C++ Builder) ...
