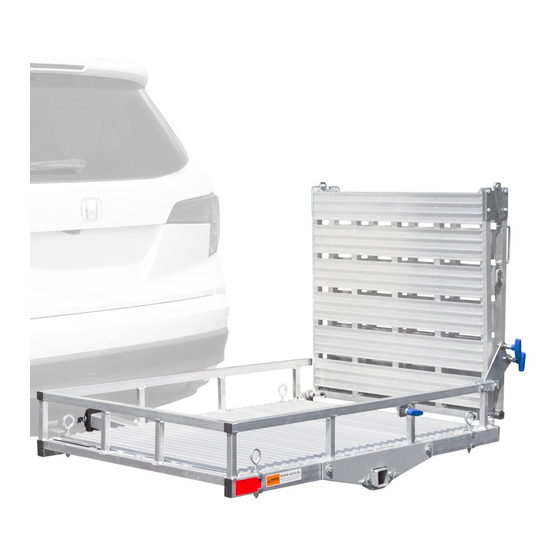

Deluxe Aluminum Folding Scooter & Wheelchair Carrier
Instructions for Part # SC500-AF
General Guidelines
• It is the user's responsibility to read and follow all instructions.
• Keep these instructions with the product at all times and review before each use.
• It is the responsibility of this product's owner to furnish the instructions to any person that borrows
or purchases the product.
• Inspect the product before use to ensure it is assembled properly and all parts are in safe working
order and free of defects.
• Never modify this product in any way.
• All circumstances cannot be addressed in these instructions. Please use common sense and
practice general safety measures when using this product.
• Parts and/or instructions are subject to change without notice.
Safety
• Follow all warnings and instructions marked on the product.
• Do not occupy the mobility aid while loading the carrier.
• Do not stand on the carrier.
• Never exceed vehicle tongue weight rating.
• The carrying capacity is 500 lbs.
• Hitch adapters may affect the weight capacity of the carrier. If using a hitch adapter, always check
its limitations before use.
• Always store the carrier in a safe place.
• Improper use, storage, or installation of the carrier could result in death or serious injury.
• Do not put the product on any kind of trailer.
• NOT recommended for tow-behind trailers including 5th wheel trailers and camping trailers.
• Periodically check nuts and bolts for tightness.
Tools Required
• 13mm or 1/2" wrench
• 14mm or 9/16" wrench
• 17mm wrench
Rev. 091218
• 19mm or 3/4" wrench
• 22mm or 7/8" wrench
• 10mm Allen wrench
DiscountRamps.com • 1-888-651-3431
Page 1
Advertisement
Related Manuals for Silver Spring SC500-AF
Summary of Contents for Silver Spring SC500-AF
- Page 1 Deluxe Aluminum Folding Scooter & Wheelchair Carrier Instructions for Part # SC500-AF General Guidelines • It is the user’s responsibility to read and follow all instructions. • Keep these instructions with the product at all times and review before each use.
- Page 2 Parts Part Description Quantity Part Description Quantity Carrier M8 Ramp Lock Nut Folding Hitch Tube Ramp Lock Bracket Carrier Support Tube M8x70 Eye Bolt Support Bracket M8 Eye Bolt Nut Reflector Eye Bolt Bracket M14x30 Bolt with Jam Nut Ramp Lock Plate Spring Pull Pin Ramp Handle Ramp Handle Nut...
- Page 3 Assembly Step 1. Assemble the support tube. Bolt the support brackets (4) to the carrier tube (3) using the support bracket bolts (8) and nuts (9) using 13mm and 14mm wrenches. *Note: Do not tighten bolts until the next step. Insert the folding hitch tube (2) into the carrier support tube (3), then lock into place with two pull pins (24).
- Page 4 Step 2. Install the completed support tube as- sembly to the carrier (1) using the carrier sup- port bolts (10), washers (11), and nuts (12). Do not fully tighten bolts during this step. Flip the carrier over and line up the support tube with the center.
- Page 5 Folding & Installation To fold the ramp for travel when loaded, pull the ramp handle up. Lock the ramp in place with the spring pull pins. One spring pull pin should remain between the ramp halves while the other remains on the outside area to prevent it from falling.
- Page 6 Carrier Adjustments Pivot Bolt Tighten the hex head pivot bolt with a 10mm Allen wrench to eliminate side-to-side wobble of the hitch carrier. DO NOT over-tighten. If the bolt is over-tight- ened, the carrier will not be able to pivot or swing up. Leveler Bolt Adjust the leveler bolt to align pin holes.
- Page 7 Using Spring Pins with Anti-Rattle Tension 1. Pull both spring pins out and fold the ramp up to a folding position. After the outer folded ramp sec- tion passes the outer pin, the ramp will be in the upright position. The inner pin stays compressed. 2.
- Page 8 Product Warranty and Liability GENERAL PRODUCT WARRANTY: Products purchased from the Authorized Dealer (original place of purchase) or Merchant (“Dealer”) will be free of defects in material and workmanship at the time of receipt, and will meet the specifications stated at the place of purchase transaction or online at the Dealer’s website, under normal use and service when correctly installed, operated and maintained.
