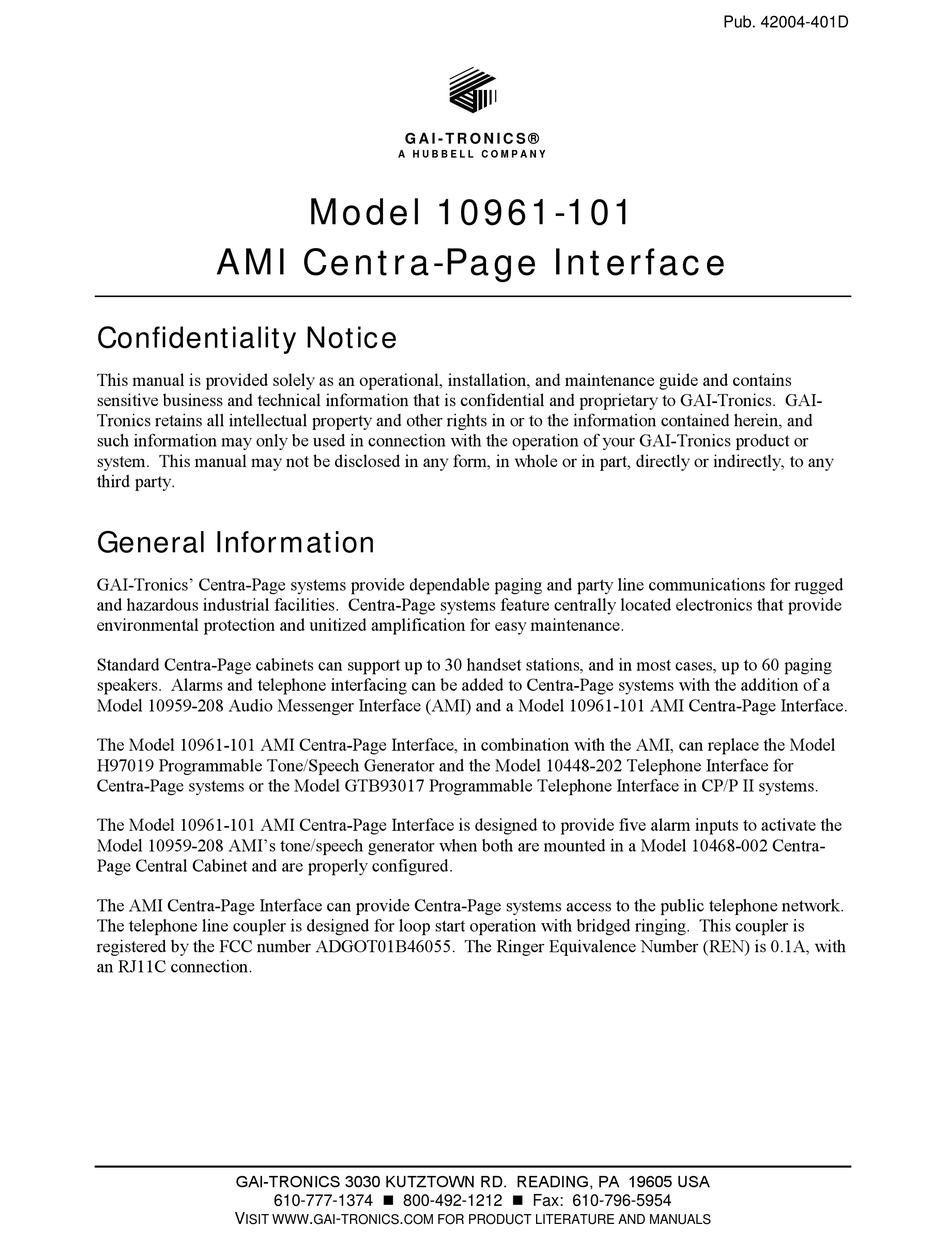

AMI Centra-Page Interface
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.

General Information

GAI-Tronics' Centra-Page systems provide dependable paging and party line communications for rugged
and hazardous industrial facilities. Centra-Page systems feature centrally located electronics that provide
environmental protection and unitized amplification for easy maintenance.
Standard Centra-Page cabinets can support up to 30 handset stations, and in most cases, up to 60 paging
speakers. Alarms and telephone interfacing can be added to Centra-Page systems with the addition of a
Model 10959-208 Audio Messenger Interface (AMI) and a Model 10961-101 AMI Centra-Page Interface.
The Model 10961-101 AMI Centra-Page Interface, in combination with the AMI, can replace the Model
H97019 Programmable Tone/Speech Generator and the Model 10448-202 Telephone Interface for
Centra-Page systems or the Model GTB93017 Programmable Telephone Interface in CP/P II systems.
The Model 10961-101 AMI Centra-Page Interface is designed to provide five alarm inputs to activate the
Model 10959-208 AMI's tone/speech generator when both are mounted in a Model 10468-002 Centra-
Page Central Cabinet and are properly configured.
The AMI Centra-Page Interface can provide Centra-Page systems access to the public telephone network.
The telephone line coupler is designed for loop start operation with bridged ringing. This coupler is
registered by the FCC number ADGOT01B46055. The Ringer Equivalence Number (REN) is 0.1A, with
an RJ11C connection.
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
Model 10961-101
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-401D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10961-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GAI-Tronics 10961-101

Summary of Contents for GAI-Tronics 10961-101

  • Page 1: General Information

    Centra-Page systems or the Model GTB93017 Programmable Telephone Interface in CP/P II systems. The Model 10961-101 AMI Centra-Page Interface is designed to provide five alarm inputs to activate the Model 10959-208 AMI’s tone/speech generator when both are mounted in a Model 10468-002 Centra- Page Central Cabinet and are properly configured.
  • Page 2 Model 10961-101 AMI Centra-Page Interface Page: 2 of 22 The Model 10961-101 AMI Centra-Page Interface contains a priority alarm test panel and a telephone interface panel. The 69542-001 PCBA and 69407-002 I/O Controller PCBA are mounted on the rear along with a power terminal block. The AMI Centra-Page Interface outline is shown in Figure 1.

  • Page 3: Installation

    1. Carefully unpack and identify the various components. The Model 10959-208 AMI includes a parts envelope containing mounting hardware, a CD, and a 12 V dc Walpac. The Model 10961-101 AMI Centra-Page Interface includes a parts envelope containing seven cable assemblies, four mounting screws, a Flash Memory card, a modular RJ11 splitter, a 33-ohm resistor, and a Centra-Page terminal block label.
  • Page 4 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 4 of 22 PRIORITY ALARM TEST CLEAR TELEPHONE INTERFACE NIGHT IN USE ACCESS DISCONNECT TELEPHONE SUBSET Figure 2. Centra-Page Central Cabinet with AMI and AMI Centra-Page Interface (front of center section) p:\standard ioms - current release\42004 instr. manuals\42004-401d.doc...
  • Page 5 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 5 of 22 CLASS 2/ CLASSE 2 12-24 VDC ETHERNET PAGE / PARTY SYSTEM AUDIO DIGITAL INPUTS DIGITAL OUTPUTS Figure 3. Centra-Page Central Cabinet (Showing front of rear section and the rear of the center section) p:\standard ioms - current release\42004 instr.
  • Page 6 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 6 of 22 Figure 4. Wiring of Central Cabinet’s wall-mounted section p:\standard ioms - current release\42004 instr. manuals\42004-401d.doc 02/16...
  • Page 7 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 7 of 22 Figure 5. Wiring of the rear of the Central Cabinet’s center section p:\standard ioms - current release\42004 instr. manuals\42004-401d.doc 02/16...
  • Page 8 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 8 of 22 : The connectors for TB6 (power) and TB3 (audio) from the back of the AMI must be attached (terminated) to the cable assemblies according to the steps 4 and 5 below: 4.

  • Page 9: Wire Color

    Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 9 of 22 5. Remove TB6 (power) connector plug from its socket on the back of the AMI. Attach the TB6 connector plug to the 61531-040 cable assembly conductor ends that do not have spade lugs. Refer to Figure 7.
  • Page 10 Model 10961-101 AMI Centra-Page Interface Page: 10 of 22 10. Mount the Model 10961-101 Interface directly beneath the AMI in the Centra-Page central cabinet. 11. Connect the 61531-038 cable assembly to the central cabinet’s TB11 located on the rear panel. See Figure 4.
  • Page 11 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 11 of 22 12. Plug the 61531-040 cable’s TB6 connector (attached in step 5) back into its original location on the rear of the AMI. 13. Install the Centra-Page terminal block label beneath TB13 on the central cabinet’s rear panel.
  • Page 12 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 12 of 22 14. Connect the 61531-035 cable assembly to the bottom card rack’s TBX04 according to the table below, except for the black wire, which goes to the position 2 of the terminal block for the crew’s quarters.

  • Page 13: Quick Test

    Startup The AMI begins its startup procedure when 24 V dc is applied. When the startup procedure is complete, the AMI will be communicating with the 69407-002 I/O controller PCBA on the Model 10961-101 Interface. “System Up” will be displayed on the AMI. When viewed from the rear of the cabinet, LED1 on the 69407-002 should be flashing.

  • Page 14: Operation

    PCBA that connects to the Public Switched Telephone Network (PSTN). The Model 10961-101 AMI Centra-Page Interface is designed to allow the capabilities of the AMI to be used by a Centra-Page system. The AMI Centra-Page Interface contains two boards: the 69407-002 I/O controller and the 69542-001 AMI Centra-Page Interface PCBAs.

  • Page 15: Crew's Quarters Muting

    The crew’s quarters speakers are normally muted and no alarms or pages are broadcast. The Model 10961-101 Interface has an output that allows the crew’s quarters speakers to be unmuted so that selected alarms can be heard. The output can be set up so that it is active when one or all of the first three alarms are played.

  • Page 16: Telephone Interface

    Model 10961-101 AMI Centra-Page Interface Page: 16 of 22 Telephone Interface The Model 10959-208 AMI connects to the PSTN, and through the Model 10961-101 AMI Centra-Page Interface, connects to the Centra-Page system. Pressing the Interface’s front panel A CCESS buttons causes the AMI to take the phone line on or off-hook. Pot R10 on the 69542-001 ISCONNECT PCBA can adjust the level of the audio from the phone line to the Centra-Page party line.
  • Page 17 To use the optional inputs and outputs on the AMI and I/O controller PCBA, the AMI configuration must be changed. Refer to the Model 10959-208 AMI manual, GAI-Tronics Pub. 42004-345, and online help to set them up. The charts below show the layouts for the inputs and outputs.
  • Page 18 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 18 of 22 Inputs in ACT Configuration Where Input Terminal is Located: Description On rear panel TB13:15, 12 (MODE SEL., SW.COM.) Day/Night mode Input 12 on I/O controller TB6:7, 8 Station Off-Hook...
  • Page 19 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 19 of 22 Output Layout for Default AMI Centra Page Configuration Outputs in ACT Configuration Where Input terminal is Located: Description Output 1 on AMI TB1: 2 & 1 Not used Output 2 on AMI TB1: 3 & 1 Not used Output 3 on AMI TB1: 4 &...
  • Page 20 Pub. 42004-401D Model 10961-101 AMI Centra-Page Interface Page: 20 of 22 Outputs in ACT Configuration Where Input terminal is Located: Description Output 22 on I/O controller TB9:6 Phone In Use LED Output 23 on I/O controller TB9:7 Not used Output 24 on I/O controller TB9:8...

  • Page 21: Maintenance

    If your AMI Centra-Page Interface requires service, contact your GAI-Tronics Regional Service Center for a return authorization number (RA#). Equipment should be shipped prepaid to GAI-Tronics with a return authorization number and a purchase order number. If the equipment is under warranty, repairs will be made without charge.

  • Page 22: Specifications

    Each group can sink a total of 500 mA; each input within the group can sink 150 mA. The power supply for these outputs is not on the 69407-002 I/O controller PCBA. The external 24 V dc supplied to the 10961-101 can be used. Maximum additional current required for optional outputs ..............2 amps Mechanical Enclosure ....................

  • Page 23: Warranty

    Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
