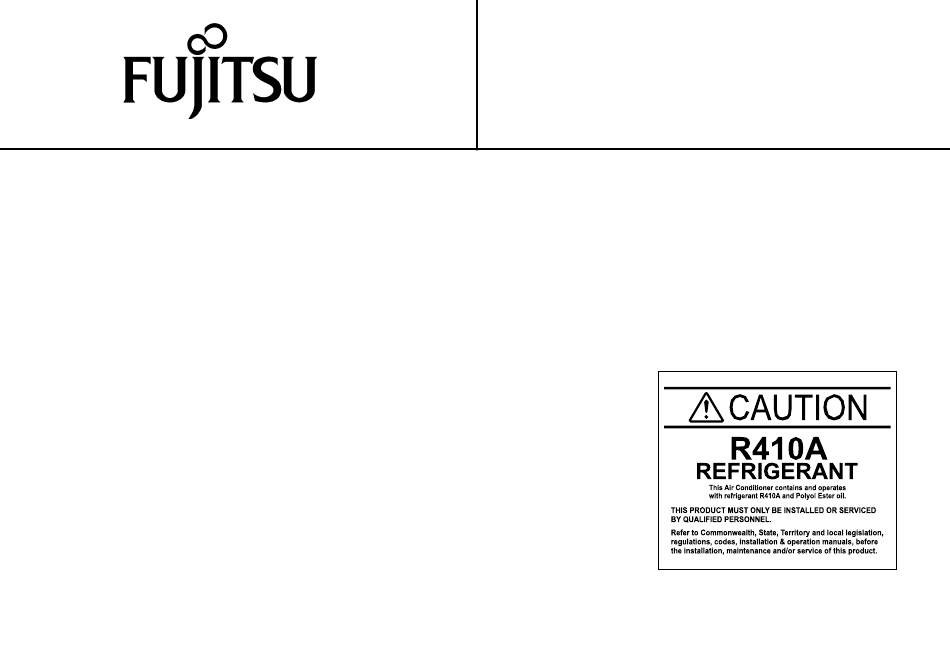

OPERATING MANUAL

Supplied by
FUJITSU GENERAL (AUST.) PTY LIMITED
FUJITSU GENERAL LIMITED
A Subsidiary of
HEAD OFFICE
SYDNEY
: E&F Rydalmere Business Park,
10-16 South Street, Rydalmere, N.S.W. 2116
MELBOURNE : 2nd Floor, 1-3 Wellington Street, Windsor, VIC. 3181
(also all Tasmanian enquiries)
BRISBANE
: 5th Floor, 301 Coronation Drive Milton, QLD. 4064 TEL.[07]367 2008
ADELAIDE
: 146 Fullarton Road, Rose Park, S.A. 5067
PERTH
: Unit 6, 103 Erindale Road Balcatta W.A. 6021

ROOM AIR CONDITIONER

ACN 001229554
TEL.[02]638 5199
TEL.[03]510 8652
TEL.[08]364 0588
TEL.[09]345 2011
AX SERIES
Cool & Heat type
(Reverse Cycle)
22
50 Hz MODEL
P/N 9353031037
FUJITSU GENERAL LIMITED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu AX SERIES

Summary of Contents for Fujitsu AX SERIES

  • Page 1: Room Air Conditioner

    ROOM AIR CONDITIONER OPERATING MANUAL AX SERIES Cool & Heat type (Reverse Cycle) 50 Hz MODEL Supplied by FUJITSU GENERAL (AUST.) PTY LIMITED ACN 001229554 FUJITSU GENERAL LIMITED A Subsidiary of HEAD OFFICE SYDNEY : E&F Rydalmere Business Park, 10-16 South Street, Rydalmere, N.S.W. 2116 TEL.[02]638 5199...

  • Page 2: Name Of Parts

    NAME OF PARTS Before Starting In order to enable efficient and trouble-free operation of your air conditioner, connect the power plug of your air conditioner through an exclusive circuit, having a time delay fuse, to the correct power supply described on the rating plate. (240V, 50 Hz) Control Panel Hold the lower edge of the control panel cover and pull up- ward until it reaches its stopper.
  • Page 3 CONTROL POSITION FUNCTION HIGH POWER (RED) Fan (High Speed) and compressor operate - Rapid heating effect at top capacity. Fan (Low Speed) and compressor operate - Intermediate heating effect and SUPER QUIET (RED) reduced operating noise. HIGH FAN High fan speed without heating/cooling - Room air is circulated and cleaned. MASTER The air conditioner is switched off.

  • Page 4: Air Circulation

    2. When operating with the MASTER CONTROL switched Cooling to HIGH POWER (BLUE) or SUPER QUIET (BLUE), turn To obtain maximum cooling effect in the hot summer, select the thermostat fully counterclockwise. position HIGH POWER (BLUE) on the MASTER CONTROL. Maximum moisture removal, air circulation and dust removal Thermostat Control are effected at the same time.

  • Page 5: Automatic Defrosting

    Once the fin coil becomes frozen, the air flow from the air When frosting occurs the fan is stopped automatically. After conditioner is restricted by the frost, and the room tem- 5 or so minutes the frost will have melted and the normal perature may rise due to the resultant weak cooling per- heating function is then automatically returned.

  • Page 6: Air Flow Adjustment

    NOTE: Setting the vertical louver at high room humidity. Air Flow Adjustment 1. Set the SUPER WAVE switch to ON. With this air conditioner, three air directions can be obtained 2. Or, to use with the SUPER WAVE switch to OFF, as shown in the figures below.
  • Page 7 Move the select lever fully left to the “NEUTRAL”. Adjusting Air Flow Direction and Sweep Angle Position the vertical louvers approx. at the center and move the select lever fully to the right end of the SUPER WAVE ZONE. To direct air flow to center: Set the SUPER WAVE switch to “ON”.
  • Page 8 Move the select lever fully left to the “NEUTRAL”. To direct air flow to left side: Lightly move the vertical louvers to the left until they stop, and move the select lever fully to the right end of the SUPER WAVE ZONE. Set the SUPER WAVE switch to “ON”.
  • Page 9 Move the select lever fully left to the “NEUTRAL”. To direct air flow to right side: Lightly move the vertical louvers to the right until they stop, and move the select lever fully to the right end of the SUPER WAVE ZONE. Set the SUPER WAVE switch to “ON”.

  • Page 10: Maintenance

    MAINTENANCE Room Air Filter Upper hooks A filter is provided on the rear of the removable panel. Since the function of this filter is to filter dust and dirt in the air, please clean it regularly before it becomes clogged with dust. Removable panel Wash the filter with clean water.

  • Page 11: General Information

    Things to Do Before Calling a Serviceman Front panel 1. If your air conditioner does not operate, check the following items before calling for service. a) Check that the power plug is properly connected to the power socket. b) Check your fuses. 2.
  • Page 12 FUJITSU GENERAL LIMITED 1116, Suenaga, Takatsu-ku, Kawasaki 213, Japan...
