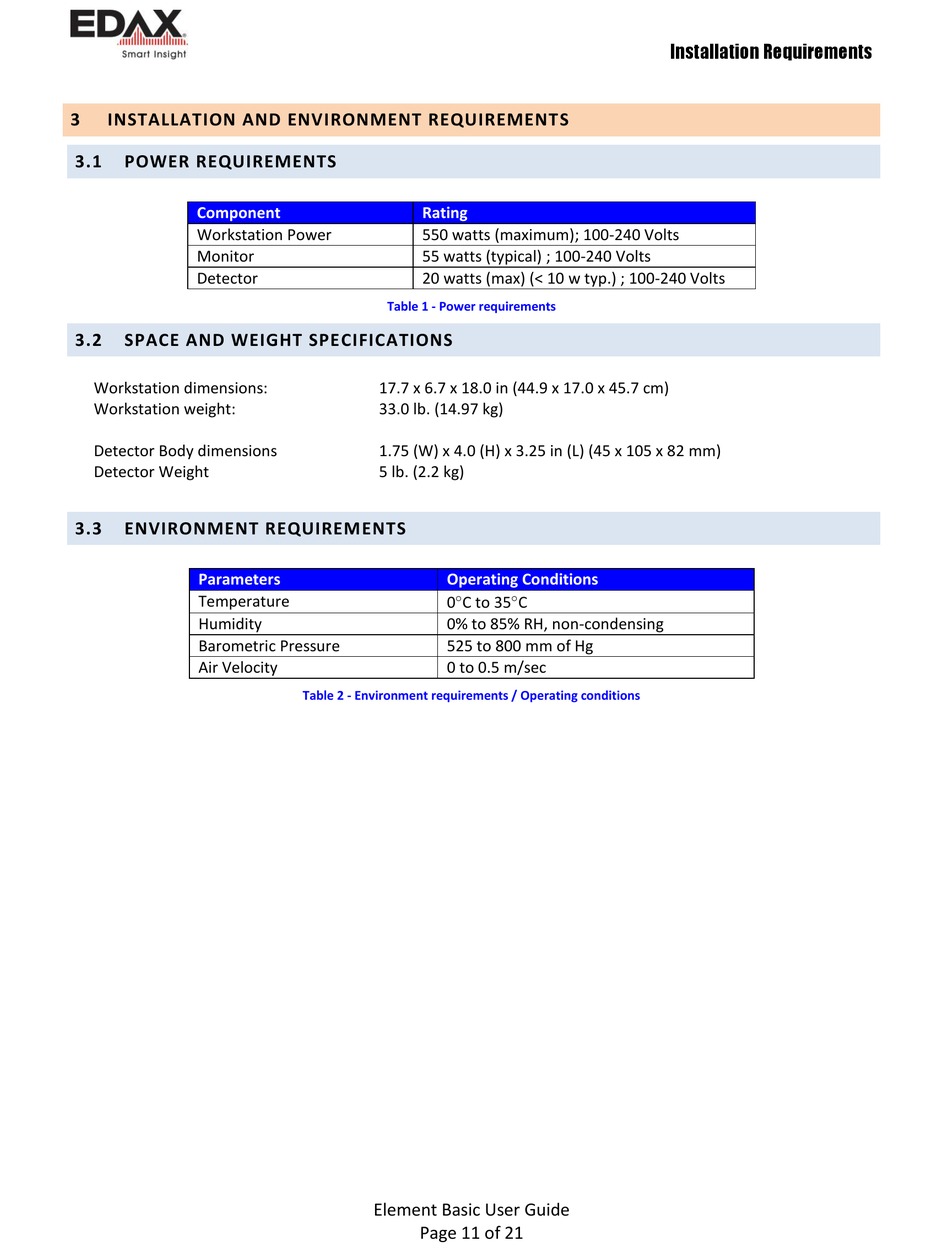

INSTALLATION AND ENVIRONMENT REQUIREMENTS

3.1

POWER REQUIREMENTS

Component
Workstation Power
Monitor
Detector
3.2

SPACE AND WEIGHT SPECIFICATIONS

Workstation dimensions:
Workstation weight:
Detector Body dimensions
Detector Weight
3.3

ENVIRONMENT REQUIREMENTS

Parameters
Temperature
Humidity
Barometric Pressure
Air Velocity
Rating
550 watts (maximum); 100-240 Volts
55 watts (typical) ; 100-240 Volts
20 watts (max) (< 10 w typ.) ; 100-240 Volts
Table 1 - Power requirements
17.7 x 6.7 x 18.0 in (44.9 x 17.0 x 45.7 cm)
33.0 lb. (14.97 kg)
1.75 (W) x 4.0 (H) x 3.25 in (L) (45 x 105 x 82 mm)
5 lb. (2.2 kg)
Operating Conditions
0C to 35C
0% to 85% RH, non-condensing
525 to 800 mm of Hg
0 to 0.5 m/sec
Table 2 - Environment requirements / Operating conditions
