Denver BTL-62 Instruction Manual

Denver BTL-62 Instruction Manual

Hide thumbs Also See for BTL-62:

Advertisement

Quick Links

Instruction Manual
Bluetooth Speaker
BTL-62
www.denver-electronics.com
Before operating this product, please read this
instruction manual carefully and completely.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTL-62 and is the answer not in the manual?

Questions and answers

Summary of Contents for Denver BTL-62

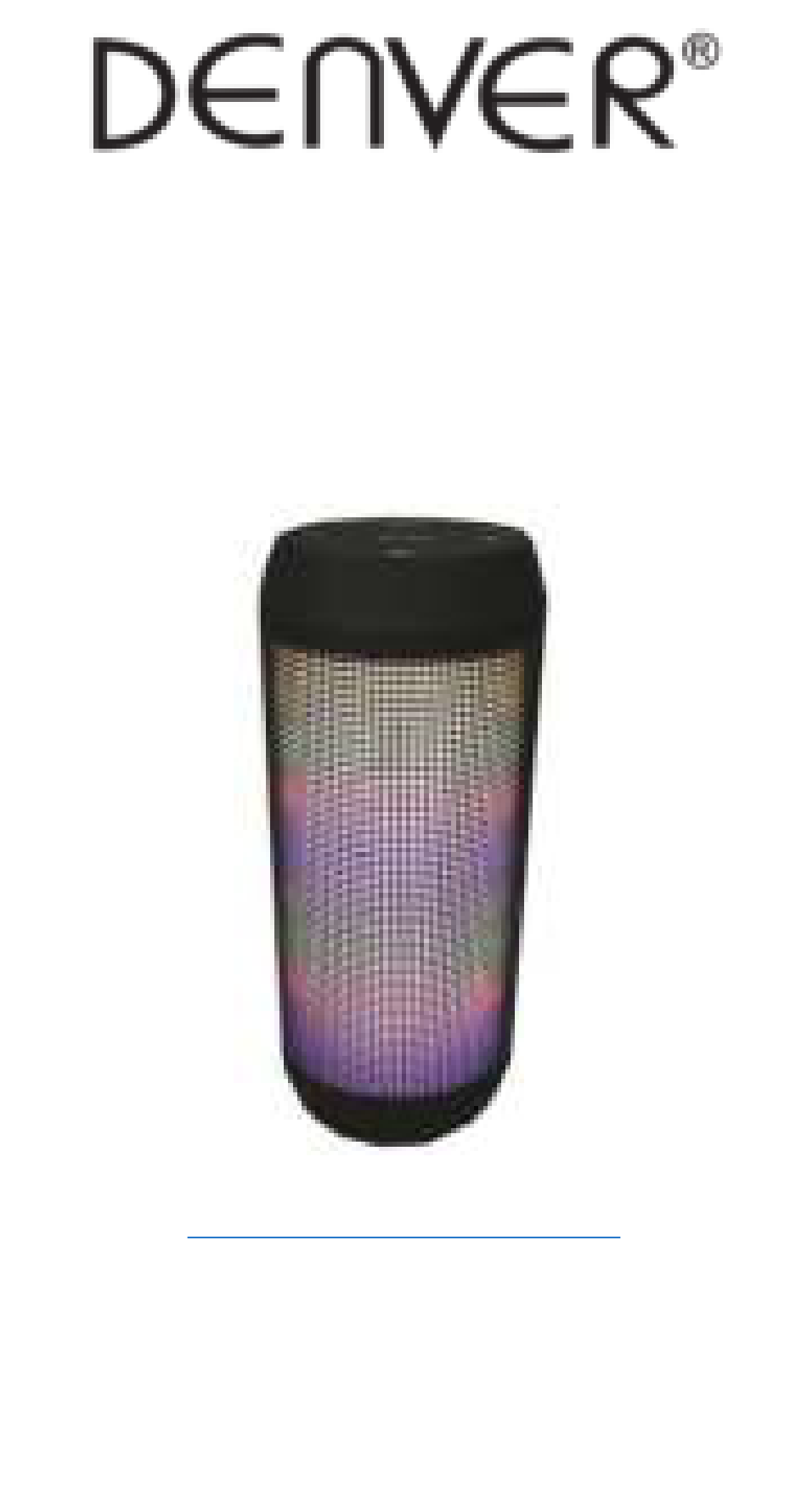

  • Page 1 Instruction Manual Bluetooth Speaker BTL-62 www.denver-electronics.com Before operating this product, please read this instruction manual carefully and completely.
  • Page 2 Operation Instruction When you turn on the speaker, it will by standard start in Bluetooth model. You can then easily pair with your smartphone or PC with Bluetooth fu tio . If you do ’t pair it ithi i utes, the speaker will go into sleep mode, and you have to turn it off/on to pair again.
  • Page 3 Button Instruction : : Power Key LINE port:3.5 audio input port Play/Pause:Pause and play in play mode. in Bluetooth mode, when call, that are answer key and hang up keys, Double-click, redial the last phone number. Volume down/Next: Long press to decrease volume.
  • Page 4 Light control button:...
  • Page 5 Light flash when on mode (full color sine move up and down) press 1st mode 1(Multicolor Rotating combination of graphics) press 2nd mode 2 ((two color conversion with double line) press 3rd mode 3 (light off) press 4th mode 4(light off) press 5th mode (one color move up with light bar ) press again light back to default status.
  • Page 6 Bluetooth mode. The blue indicator flashes, and a beep sounds. Enter Bluetooth settings on your smartphone or PC, find BTL-62 on the list over Bluetooth units, and choose it to pair. After succesfull pairing, the speaker will give a beep, and on your phone it will show that the speaker is connected.
  • Page 7 In any mode, insert 3.5mm to the Bluetooth speaker, and to the audio source you want to listen to. The Bluetooth speaker will automatically change to AUX input. How to operate FM radio Press M to enter FM mode. Then long press M to make automatically search for channels.
  • Page 8 time). When charging has finished the red indicator will turn off. Cannot connect and play 1) Check Bluetooth settings on your phone or PC. so e p ’s a ot e used for Bluetooth audio 2) Check if the speaker are properly charged. If the red indicator flashes when you turn on the speaker, please charge it.
  • Page 9 Specifications: Speaker Specification:40MM×3W Output:3W*2 Frequency Response:200Hz-20KHz Sensitivity:100db±5db SNR: 9 DB Distortion: 5% Bluetooth specification:Bluetooth 2.1 Bluetooth Communication Protocol: Support Advanced Audio Transmission Mode( A2DP) Ver 1.2 Supports remote control mode (AVRCP) support Ver 1.0 Bluetooth Communication Range up to 10M Power Supply:Built-in Lithium Charging Time:6 hours first time, please extend the charging time...
  • Page 10 Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly. Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below.
  • Page 11 Additional information is available at the technical department of your city. Hereby, Inter Sales A/S declares that the radio equipment type BTL-62 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.denver-...
  • Page 12 Imported by: DENVER ELECTRONICS A/S Omega 5A, Soeften DK-8382 Hinnerup Denmark www.facebook.com/denverelectronics...
