Summary of Contents for Denver BTL-60

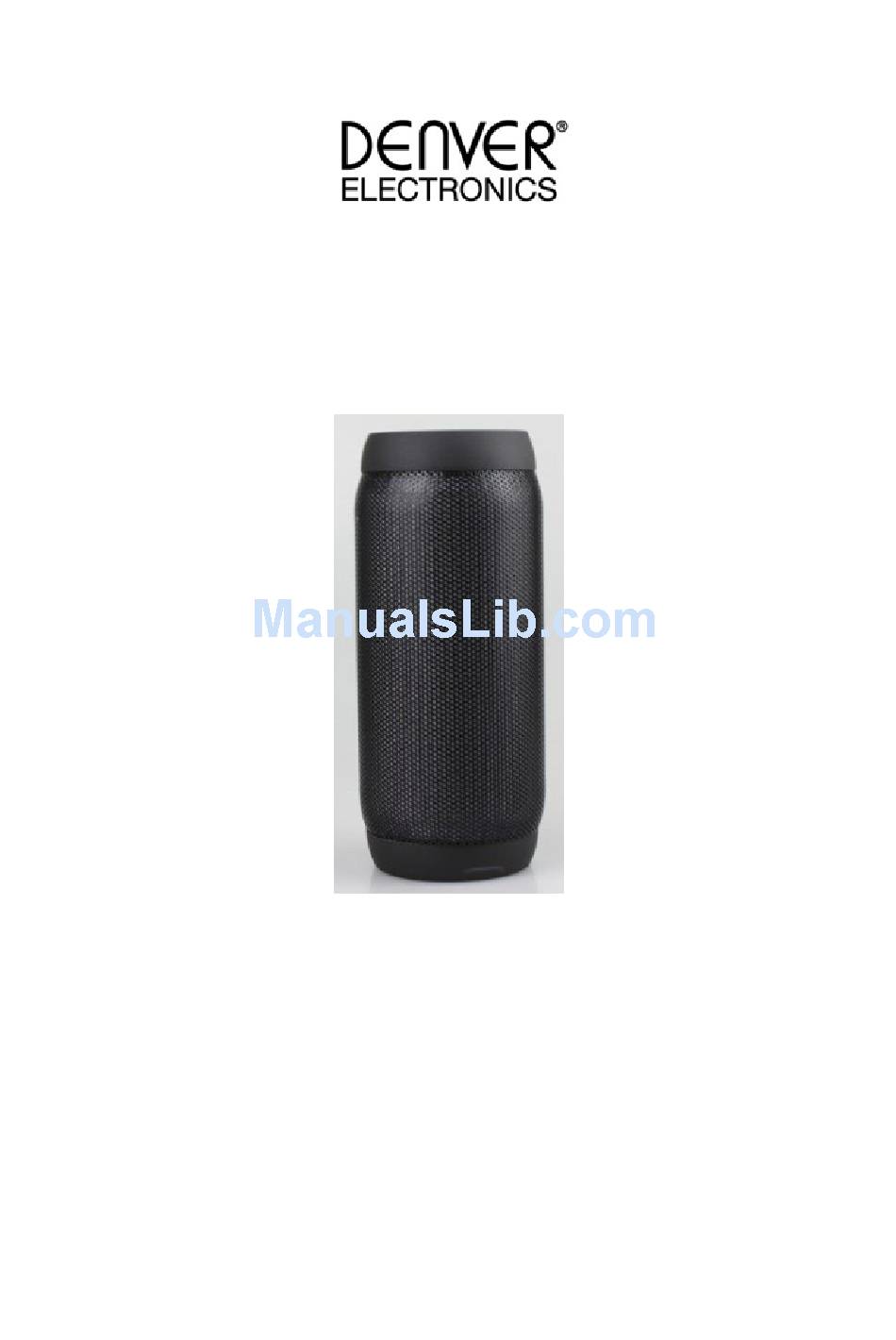

  • Page 1 Instruction Manual BTL-60 www.denver-electronics§.com...
  • Page 2 Bluetooth Speaker USER GUIDE BTL-60 Operation Instruction When you turn on the speaker, it will by standard start in Bluetooth model. You can then easily pair with your smartphone or PC with Bluetooth function. If you don’t pair it within 10 minutes, the speaker will go into sleep mode, and you have to turn it off/on to pair again.
  • Page 3 Button Instruction : ON / OFF: Power Key LINE port:3.5 audio input port Play/ Pause:Pause and play in play mode. Volume down/ PRE: Long press to decrease volume. In FM mode, short press to switch PRE frequency ,In music mode, short press to switch previous song. Volume up / Next: Long press to increase volume, In FM mode, short press to switch to next frequency, In music mode, short press to switch to next song M - mode switch:switch to FM radio mode, in “FM”...
  • Page 4 1. Turn on speaker and make sure it is in Bluetooth mode. The blue indicator flashes, and a beep sounds. Enter Bluetooth settings on your smartphone or PC, find BTL-60 on the list over Bluetooth units, and choose it to pair.
  • Page 5 How to use mobile NFC Turn on the “NFC” on the phone (if phone supports NFC function). Put the phone close to the speaker bottom and scan. The phone will ask: ”connect with BTL-60”. Push “OK” and the speaker will connect.
  • Page 6 Specifications: Speaker Specification:40MM×3W Output:3W*2 Frequency Response:200Hz-20KHz Sensitivity:100db±5db SNR:≥90DB Distortion:≤5% Bluetooth specification:Bluetooth 3.0 Bluetooth Communication Protocol: Support Advanced Audio Transmission Mode( A2DP) Ver 1.2 Supports remote control mode (AVRCP) support Ver 1.0 Bluetooth Communication Range:More than 10M Power Supply:Built-in Lithium Charging Time:8 hours(first time, please extend charging time) Bluetooth Play Time :8 hours Adapter:Micro USB Port, 3.5 AV input Port Dimension:157mm* 70mm...
  • Page 7 ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
  • Page 8 DK-8382 Hinnerup Denmark www.facebook.com/denverelectronics Hereby, Inter Sales A/S, declares that this model DENVER BTL-60 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity may be obtained at Inter Sales A/S...
