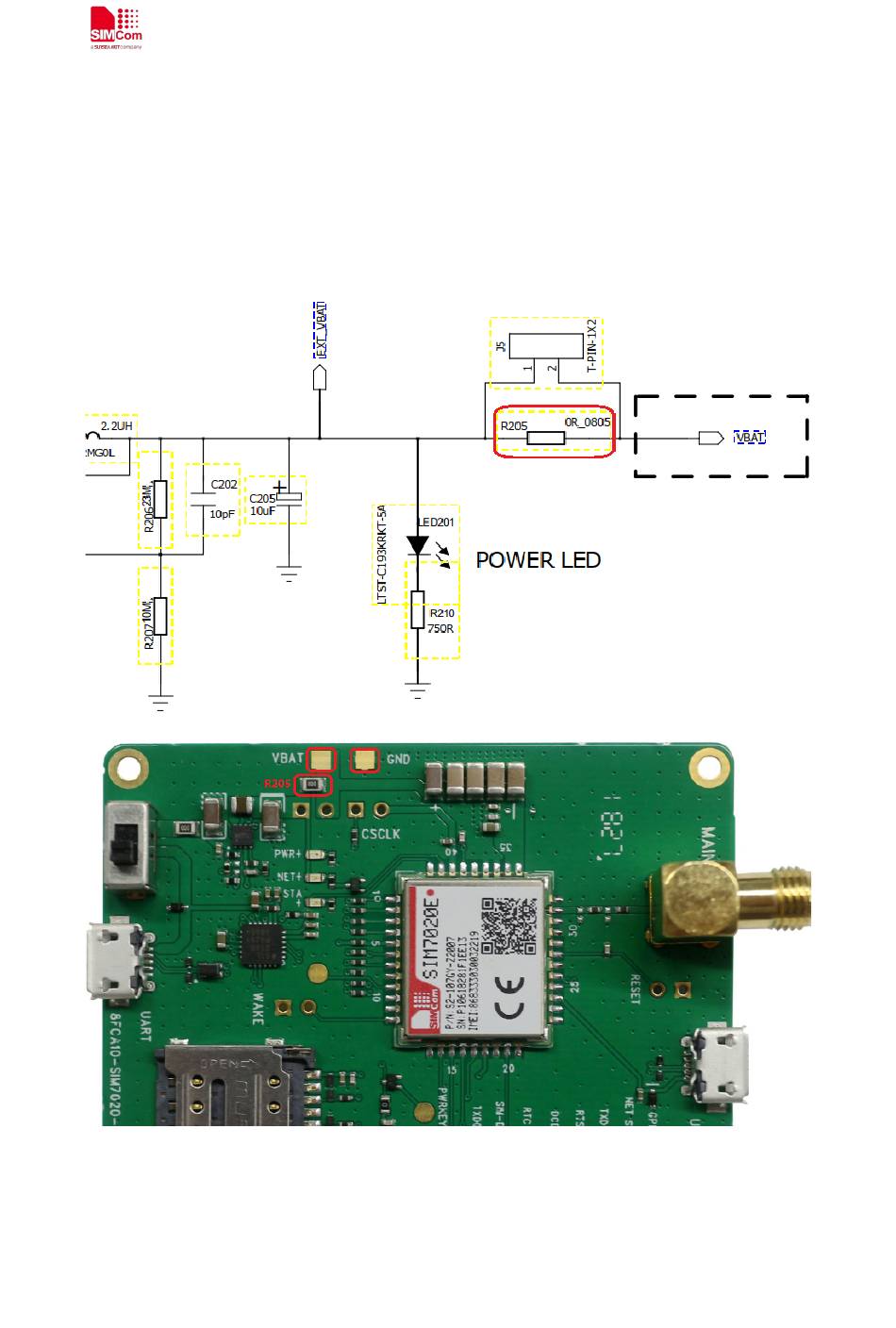

5 Power Consumption HW Test Set Up
1), Delete R205 on SIM7020 SUB board
2), Connect external power supply to VBAT & GND pads (for SIM7020 module only)
Notes: For the detail, please refer to "SIM7020 Series_Low Power Mode_Application
Note_V1.01".
SIM7020 Series SUB Kit_User Guide
Simplify Communication
Page 12 / 13
