Thank you for purchasing Jackery Explorer 440 To safely use this device, please read this manual carefully and keep
it (together with the warranty card) in a safe place. If you pass the mobile storage system on to another user, make
sure that you hand over the instruction manual and warranty card as well. Please keep any additional documents
together with this manual.
CHARGE FIRST! Before reading through the manual, you can begin to charge up you Explorer 440
by connecting it to the power supply p rovided and plugging it in at the wall.
Instruction manual
Jackery Explorer 440
Outdoor Portable Power

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Explorer 440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jackery Explorer 440

Summary of Contents for Jackery Explorer 440

  • Page 1 Outdoor Portable Power Thank you for purchasing Jackery Explorer 440 To safely use this device, please read this manual carefully and keep it (together with the warranty card) in a safe place. If you pass the mobile storage system on to another user, make sure that you hand over the instruction manual and warranty card as well.

  • Page 2: Table Of Contents

    Contents Set includes Introduction Safety instructions Lifting and transportation Get to know your Explorer 440 Charging 6.1. What it can power 6.2. LCD battery display 6.3. Charging via solar panel 6.4. Charging via mains power supply Using the Explorer 440...
  • Page 3 Instruction manual Explorer 440 Outdoor Portable Power...

  • Page 4: Set Includes

    Outdoor Portable Power Thank you for purchasing Jackery Explorer 440 To safely use this device, please read this manual carefully and keep it (together with the warranty card) in a safe place. If you pass the mobile storage system on to another user, make sure that you hand over the instruction manual and warranty card as well.

  • Page 5: Introduction

    W ith 440 Wh watt-hours of stored energy, you can keep appliances, or electronic devices running for hours. The Jackery Explorer 440 Outdoor Partable Power is designed to keep you powered up outdoor in you RV or during emergencies or power outage.

  • Page 6: Safety Instructions

    Instruction Manual / Jackery Explorer 440 3. Safety instructions Observe these instructions to ensure safe usage. Explanation of symbols This symbol together with Noncompliance may very likely lead DANGER means to serious injury or death. This symbol together with Noncompliance may lead WARNING means to serious injury or death.
  • Page 7 Instruction Manual / Jackery Explorer 440 Danger Do NOT disassemble, repair or modify the unit or the battery. Do NOT charge, use or store the unit in a bathroom or in an area exposed to rain or moisture. Only use the output socket to power external devices. Never connect the output to mains power under any circumstances.
  • Page 8 Instruction Manual / Jackery Explorer 440 Warning Use and store the unit only in a clean and dry environment. Do not use and store in dusty and wet envoirnment. with the connections. Check the unit prior to every use. Do not use the unit if it is damaged, broken.
  • Page 9 Instruction Manual / Jackery Explorer 440 Caution If rust, peculiar odors, overheating or other abnormal circumstances are observed, stop using the unit immedi ately and contact the dealer or our customer service center. The unit complies with all legal requirements for transport of dangerous goods.

  • Page 10: Lifting And Transportation

    Instruction Manual / Jackery Explorer 440 4. Lifting and transportation 1. Carry the unit with both hands. ATTENTION ATTENTION Keep the unit away f rom Take extra ca re to ensu re that the unit is never other objects when moving.

  • Page 11: Get To Know Your Explorer 440

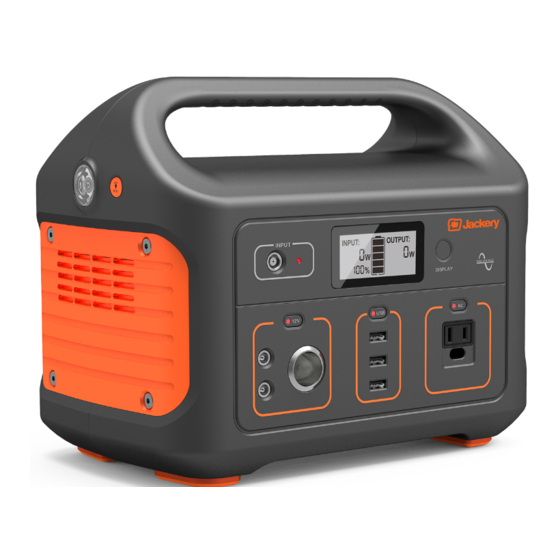

    Instruction Manual / Jackery Explorer 440 5. Get to know Jackery Explorer 440 Charging Input: 8mm round port, for solar panel / wall charger: 25.2V LCD Battery Indicator LCD Screen Switch Power Output: (Wall outlet, for smaller home appliances) 110V AC, 60HZ, 300W continuous,...

  • Page 12: Charging

    6. Charging Before use or storage, plug your Explorer 440 into the wall until it is fully charged. If the display shows less than 20% capacity, plug it into a power sou rce, like an AC outlet or a solar panel as soon as possible.

  • Page 13: Charging Via Solar Panel

    6.4. Charging via mains power supply Use the AC wall charger provided and plug you Explorer 440 into any outlet. When the digital indicator shows 100, your device is fully charged. It will be fully charged after about 8 Hrs.

  • Page 14: Using The Explorer 440

    When charging devices with Explorer 440, take note of the LCD Display. • If you plug in devices that have a high power requrement, the charge lever of Explorer 440 can drop quickly and you may not get be able to extract the enti re 440Wh of energy.
  • Page 15 Instruction Manual / Jackery Explorer 440 Charge times Wall charger (25.2V) About 8 Hrs Solar panel (100 W) About 10hrs (Full Sun) Battery Cell type Lithium-ion Pack capacity 440 Wh Lifecycles >500 Temperature control, Surge p rotection, Management system Short circuit protection...

  • Page 16: Solar Panels

    Solar panels don’t store energy from the sun, they collect it. Use your solar panel to charge your Explorer 440 so that you can use it day or night to power your devices. Not all solar charge times are created equal.

  • Page 17: Storage

    Fully charge the power supply unit prior to long-term storage. Charge the power supply unit at least once every three months. 2. Turn off all switches As soon as the Explorer 440 power supply unit is charged fully, switch off the main switch and the other ON/OFF buttons and disconnect the adaptor from the main unit. 3. Cleaning Wipe away any dirt using a damp cloth.

  • Page 18: Frequently Asked Questions (Faqs)

    Can I charge the Explorer 440 while supplying power at same time? The Explorer 440 power supply unit can be used to charge the devices during the charging process of the unit itself Can I take my Explorer 440 on a plane? No, you can’t.
  • Page 19 Mini Fridge (70 W) 5Hrs When you’re deciding on what to power using your Explorer 440 recharge, do some research into your device’ s power consumption. For more quick tips and learning tools, please email our customer service for help.

  • Page 20: Disposal And Recycling

    Explorer 440 Outdoor Partable Power 14. Disposal and recycling Lithium ion battery As soon as the end of the battery‘s service life is reached, the entire lithium ion battery can be recycled. Do not open or disassemble the unit. Electric device Old electric devices may not be disposed together with normal household waste.

  • Page 21: Warranty And Customer Service

    WARRANTY PERIOD The warranty period for this Jackery Explorer is 24 months. In each case, the warranty period is measured starting on the date of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
  • Page 22 Explorer 440 Outdoor Partable Power REPAIR TERMS AND CONDITIONS 1. In the case of device failure which can be attributed to poor workmanship, please take the original sales receipt with purchase date (invoice, etc.) to the retail store. In case of normal use, the power supply unit will be repaired or replaced free of charge within the two year warranty period.
  • Page 24 Jackery Inc. TM and 2018 Jackery Inc. All rights reserved. Made in China www.jackery.com...
  • Page 25 Outdoor Portable Power Thank you for purchasing Jackery Explorer 440 To safely use this device, please read this manual carefully and keep it (together with the warranty card) in a safe place. If you pass the mobile storage system on to another user, make sure that you hand over the instruction manual and warranty card as well.
