Sony D-E220 Operating Instructions

3-225-997-23 (1)

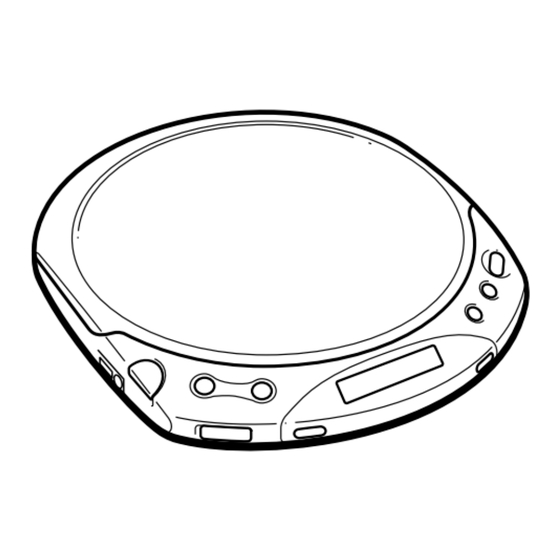

Portable
CD Player
Operating Instructions
About area code
The area code of the player you purchased is shown on upper left of the bar
code label on the package.
For accessories supplied with your player, check the area code of your model
and refer to "Supplied accessories" toward the end of this manual.
D-E220
D-E221
D-E221SR
D-E226CK
Sony Corporation ©2001 Printed in China
CAUTION
The use of optical instruments with this
product will increase eye hazard.
Certain countries may regulate disposal of the
battery used to power this product. Please
consult with your local authority.
For the customers in Australia
The supply cord of the AC power adaptor
cannot be replaced; if the cord is damaged,
the AC power adaptor should be discarded.
Playing a CD right
away!
A
If you want to play a CD right now, choose to use your CD player on
house current. You can also use it on dry batteries (see "Power Sources"
on the reverse side).
1
Connect
When using
earphones
AC power adaptor
Earphones
or
Headphones
i
For models supplied with the AC plug adaptor
If the AC power adaptor does not fit the wall outlet, use the AC plug adaptor.
2
Place a CD
OPEN
Label side up
1
Press OPEN to open the lid. 2
Fit the CD to the pivot.
3
Close the lid.
3
Play
1 Press > N.
2
Adjust the volume.
To stop play, press x/CHG.
BOther Operations
To Press
Find the beginning . once
Selecting play mode B
of the current track
(AMS*)
You can enjoy the following five play modes:
Find the beginning . repeatedly
"Normal play", "Repeat play — all the
of previous tracks
tracks", "Single track play", "Repeat play —
(AMS)
a single track" and "Repeat shuffle play".
Find the beginning > N once
of the next track
(AMS)
Find the beginning > N
of succeeding repeatedly
tracks (AMS)
Go forward Hold down
Press MENU during play.
quickly > N
Each time you press the button, the play
mode indication in the display changes as
Go backwards Hold down .
to an AC follows:
quickly
outlet
* AMS = Automatic Music Sensor
To remove the CD
Remove the CD while pressing the pivot.
No indication (Normal play)
The player plays all the tracks on the CD
once.
" " (Repeat play — all the tracks)*
The player plays all the tracks on the CD
repeatedly.
DC IN 4.5 V
"1" (Single track play)
Notes on display
The player plays a single track you've
• When you press > N, the total number of
selected once.
tracks in the CD and the total playing time
appear.
• During play, the track number and the
" 1" (Repeat play — a single
elapsed playing time of the current track
appear.
track)
The player plays a single track you've
Notes on handling CDs
selected repeatedly.
• To keep the CD clean, handle it by its edge.
Do not touch the surface.
• Do not stick paper or tape onto the CD.
" SHUF" (Repeat shuffle play)
• Do not expose the CD to direct sunlight or
The player plays all the track on the CD
heat sources such as hot air ducts. Do not
in random order repeatedly.
leave the CD in a car parked under direct
sunlight.
* During Repeat play, you can locate the first
track after the last track by pressing > N
repeatedly. You can also locate the last track
after first track by pressing . repeatedly.
Using other functions
To maximize the skip protection
performance (ESP MAX) C
The typical ESP (Electronic Shock Protection)
function minimizes skipping by using a
buffer memory that stores music data and
plays it back in the event of a shock.
The ESP MAX system is an extremely
Not these ways
sophisticated technology. Due to the light
weight and improved anti-shock
characteristics of the optical block, this system
recovers from the skipping much quicker
than conventional technology such as ESP or
ESP 2 .*
* Although ESP MAX provides excellent
protection, skipping may occasionally occur.
Set ESP to "ON."
The ESP indication appears.
To release the ESP MAX function, set ESP to
"OFF."
Notes
• Playing may stop when the CD player gets a
strong shock even with the ESP MAX function
on.
• You may hear a noise or sound skip when:
— listening to a dirty or scratched CD,
— listening to an audio test CD or,
— the player receives continuous shock.
To enjoy more powerful bass sound
(Digital MEGA BASS) D
You can emphasize the bass-boosted sound.
MENU
SOUND
Press SOUND to select "BASS " or
"BASS ."
Play mode indication
No indication
(Normal play)
BASS
m m
BASS
m m
The selected sound mode is displayed.
m m
"BASS " enhances the bass sound more
than "BASS ."
Note
m
• If the sound is distorted when using the
SOUND function, turn down the volume.
To lock the buttons E
You can lock your CD player against any
accidental operations.
m
Slide HOLD in the direction of the arrow.
When you press any button, "Hold" appears
in the display and you cannot operate the CD
player.
To unlock, slide HOLD in the opposite
direction of the arrow.
To protect your hearing (AVLS) F
The AVLS (Automatic Volume Limiter
System) function keeps down the maximum
volume to protect your ears.
SOUND
Hold down SOUND until "AVLS" appears in
the display.
ESP
If you turn up the volume to " *", you
cannot turn up the volume any more.
If you want to turn up the volume to more
than " *", hold down SOUND until
"AVLS" disappears from the display.
* For the customers in France
This level is set to " ."
Note
• If you use the sound function and the AVLS
function at the same time, sound may be
distorted. If this happens, turn down the
volume.
Connecting to other
stereo equipment G
You can listen to the CD through other stereo
equipment or record a CD on a cassette tape.
Refer to the instruction manual of the other
equipment for details. Before making
connections, turn off each piece of equipment.
i
Connecting cord
Left (white)
Right (red)
LINE IN or
REC IN
Stereo system,
cassette recorder,
radio cassette
recorder, etc.
Notes
• Before you play the CD, turn down the
volume of the connected equipment so as not
to damage the connected speakers.
• If you turn up the volume to more than " ",
the sound may be distorted.
Continue to the reverse side c
