Packing List:
(1) Collar #566679 with:
(1) O-ring #480049 installed
(1) Drop Tube O-ring #569461 installed
(1) Warning Plate #564420

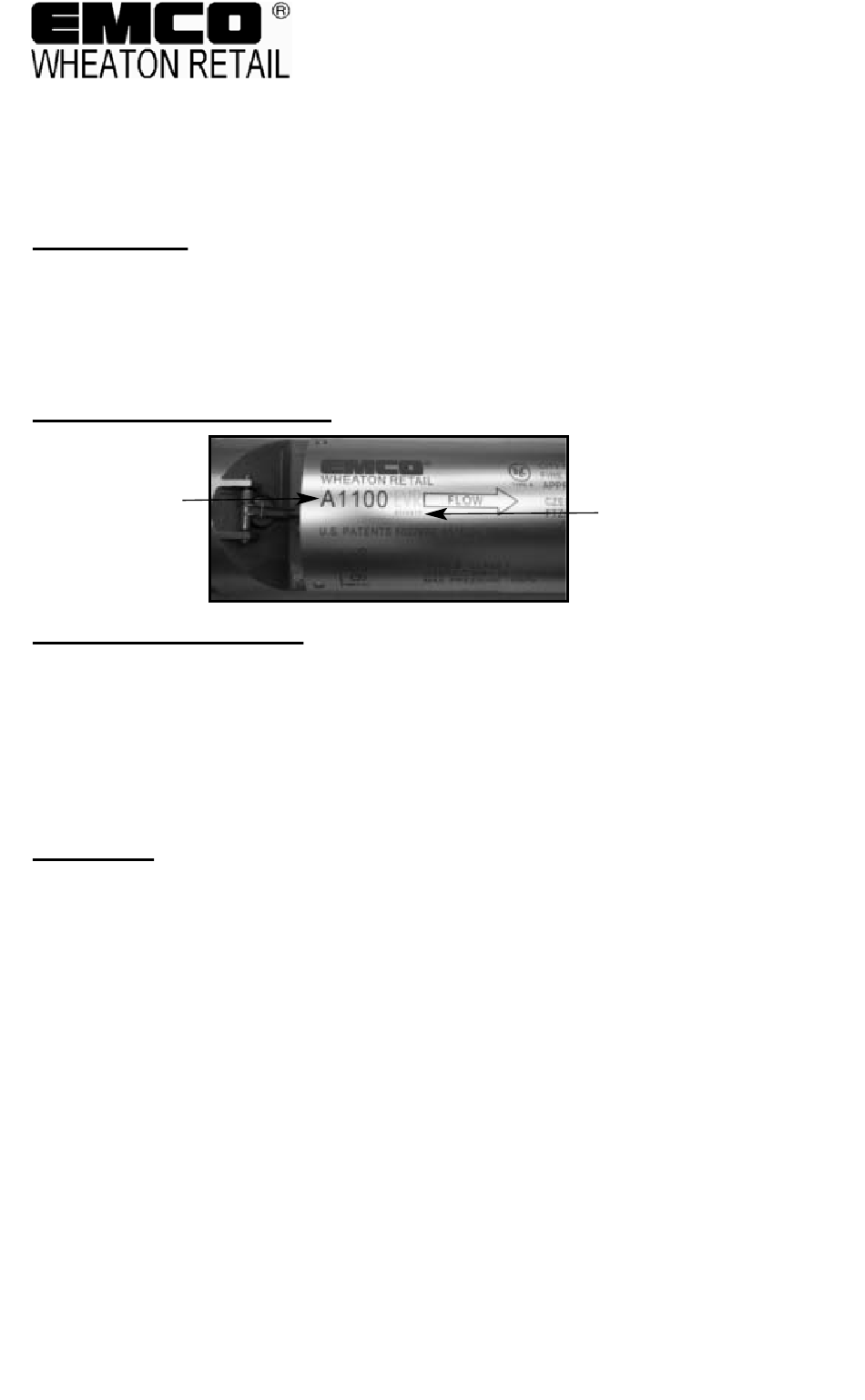

Permanent Identification:
Model #
Service Tool Required:
• 13/64" Drill Bit
• Rivet Gun
• Power Drill
• Tape Measure
• EMCO Drill Fixture p/n 566675
CAUTION:
1. Always barricade to keep pedestrians and vehicles from accessing the
storage tank area during preventive maintenance and/ or compliance testing
of the EMCO phase I EVR system.
2. If the underground storage tank is equipped with a ball float vent valve, make
sure it does not extend below the positive shut-off point of the A1100EVR
overfill prevention valve. If so, the ball float valve must be removed to allow
proper operation of the A1100EVR overfill prevention valve.
3. Never disconnect the delivery elbow from the fill adapter when the
A1100EVR overfill prevention valve has reached the positive shut-off point of
95% total capacity. Note the tank delivery hose is full and must not be dis-
connected until enough fuel has been evacuated from the underground stor-
age tank. This will allow the tank delivery hose to drain, and to safely discon-
nect from the fill adapter. Premature disconnection will result in a hazardous
spill and/or a potential for personal injury and property damage.
4. Once the A1100EVR overfill prevention valve is completely assembled, the
Seals-All Sealant must cure for a minimum of 24 hours before installing
into the underground storage tank.
A1100EVR GUARDIAN
INSTALLATION INSTRUCTIONS
• Hacksaw w/ fine tooth
• Hand file w/ fine blade
• Marker
• Hammer
OVERFILL PREVENTION VALVE
WITH THREADED BOTTOM
(1) Tube, Seals-All Sealant #566726
(1) Counter Sink Indenter #564416
(4) Rivets #564412
(1) Hose Clamp #564421
• Pipe Thread Sealant Compound
• 150 Grit Size Emery Cloth
• De-burring Tool w/ #10 Blade
• Fabric Strap Wrench (2)
Month/Year
of Manufacture
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Emco A1100EVR GUARDIAN
Summary of Contents for Emco A1100EVR GUARDIAN
- Page 1 1. Always barricade to keep pedestrians and vehicles from accessing the storage tank area during preventive maintenance and/ or compliance testing of the EMCO phase I EVR system. 2. If the underground storage tank is equipped with a ball float vent valve, make sure it does not extend below the positive shut-off point of the A1100EVR overfill prevention valve.
- Page 2 A1100EVR Overfill Prevention Valve Top Drop Tube Cut Length Find measurement A, the distance from the inside top of the tank to the top edge of the riser pipe as shown in Figure 1. If the tank has a manway (Figure 3), make sure to include the height of the manway when finding measurement A as shown in Figure 2, A = J + H .
- Page 3 Figure 3 Find measurement B from the chart below, the distance from the maximum fluid level allowed to the inside top of the tank. The calculations are based on cylindrical tanks with flat ends. For exact dimensions, consult the manu- facturer’s tank charts.
- Page 4 4. Carefully cut the top drop tube to 5. Slide the EMCO Drill Fixture p/n the required length. Use a hacksaw 566675 onto the end of the top drop equipped with a fine tooth blade to tube until the edge bottoms out ensure a straight 90-degree cut.
- Page 5 A1100EVR Collar to Top Drop Tube 569461 480049 9. Remove the o-ring (p/n 480049) 10. Apply a 1/2 inch bead of Seals- from the A1100EVR collar groove. All Sealant around the 480049 o-ring Lightly sand the outside area using and outside area of the A1100EVR 150-grit emery cloth.
- Page 6 A1100EVR Overfill Prevention Valve to Lower Drop Tube 15. Apply pipe thread sealant compound to the male threads of the A1100EVR base. 16. Manually tighten both top and bottom drop tubes to avoid cross threading. 17. Use two fabric strap wrenches to permanently tighten. IMPORTANT: Once the Seals-All sealant has cured for a minimum of 24 hours and before installing the A1100EVR overfill prevention valve into the underground storage tank, a leak tightness integrity test must be performed.
- Page 7 Figure 4 Tape Measure Spill Containment Riser Pipe 4”-6” 19. Bottom Tube Cut Location, Measurement E: Find measurement D, the distance between the top of the riser pipe and the bottom of the tank as shown in Figure 3. PEI Recommended Practice suggests 4”-6”. Cut Length E = D - 5”...
-
Page 8: Preventive Maintenance
2. Annually, verify leak tightness integrity of the A1100EVR overfill prevention valve by performing ARB test procedure TP-201.1D. 3. If the A1100EVR overfill prevention valve fails to pass the leak tightness integrity test, replace the drop tube o-ring with the EMCO o-ring kit p/n 569461. PERFORMANCE SPECIFICATIONS This component was factory tested to, and met, the following specifications.
