- Page 1 USER MANUAL Electronic cylinder LIBRA...
-
Page 3: Information Icons
About this manual Dear Customer, Thanks for choosing this innovative ISEO product, designed and developed following the highest standard of production, for an effective user-friendly and, at the same time, powerful and flexible access control. This manual explains the functions, configurations and characteristics of Libra Smart, the ISEO electronic cylinder Smart series, that works with the Argo app. -
Page 4: Information On Copyright
ISEO. • ISEO reserves the right to change the specifications of the hardware and software described in this manual at any time and without prior notice. -
Page 5: Table Of Contents
Table of Contents About this manual Getting started Information icons 16 Package contents Information on copyright 17 Installing Libra Smart Trademarks 17 Programming and using Libra Smart Keywords Safety and Environment Maintenance Warnings 18 Battery replacement Handling lithium batteries 20 Cleaning... -
Page 6: Safety And Environment
• Read this manual prior to use the device in order to ensure a safe and proper use. • Preserve this manual as future reference. • The installation of the device requires the intervention of qualified staff, adequately trained by ISEO. • The instructions should be carefully followed during installation. These instructions and any mainte- nance instructions should be passed on by the installer to the user. -
Page 7: Handling Lithium Batteries
Safety and Environment Handling lithium batteries Batteries may leak or explode if improperly handled. Observe the following precautions when handling batteries for use in this product: • Do not connect the battery during the shipping and the storage. Connet the battery just during installation and use. -
Page 8: Disposal And Recycling
Safety and Environment Disposal and recycling This product and battery are designated for separate collection at an appropriate collection point. Do not dispose of as household waste. This symbol on the battery indicates that the battery is to be collected separately. Dispose of batteries according to your local environmental laws and guidelines. -
Page 9: Certifications
Certifications Certifications and compliance In conformity with the essential requirements and other relevant requirements of the : R&TTE Directive (1999/5/CE) Donwload the conformity certificate at: http://gamma.iseozero1.com/controllo-accessi/... - Page 10 Certifications Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. Classification Result Standard Product EN15684:2012 Category of Use (1) Grade 1 Durability (4 - 6) Grade 6...
-
Page 11: Overview

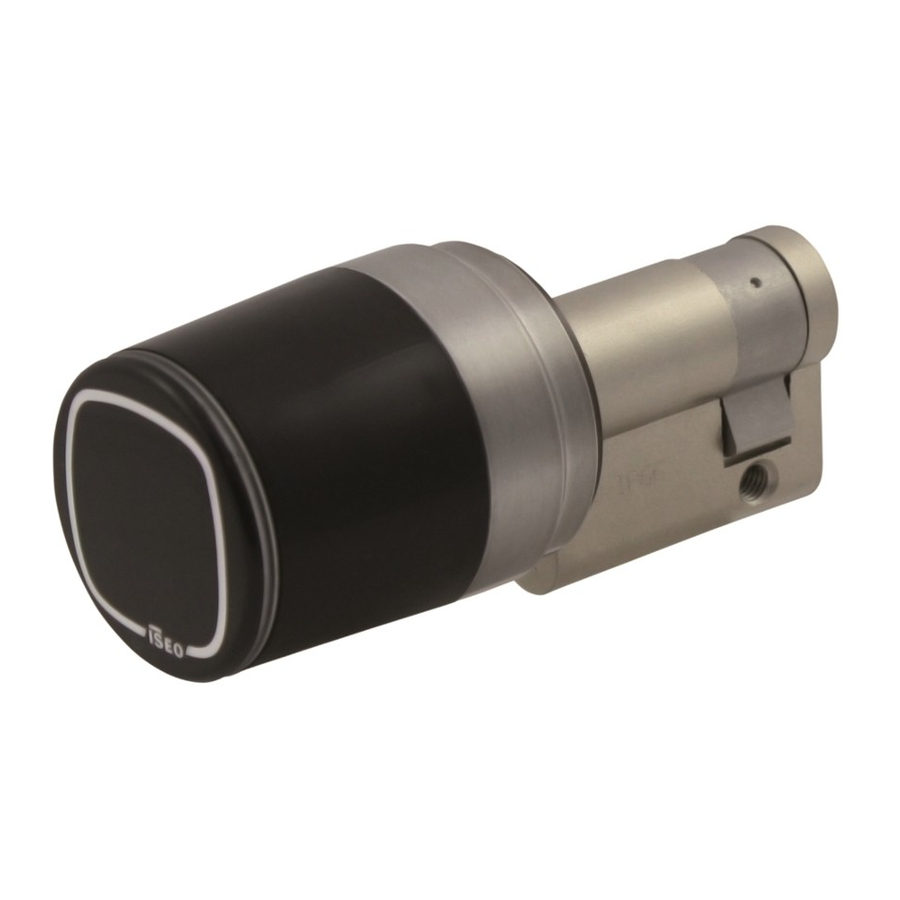

Overview What is Libra Smart Libra Smart is the utmost evolution of Libra, the electronic cylinder developed and created by ISEO for electronic access control. In addition to all Libra features, Libra Smart incorporates the Bluetooth Smart Technology, in order to work with Argo, the new application suitable for Android and iOS smartphone. -
Page 12: Technical Data
Overview Technical data Feature Characteristics RFID Reader Multistandard 13,56 Mhz: ISO14443A (Mifare Classic, Plus). ISO14443B (i.e. ST microprocessor cards). NFC (card emulation and Peer-to-Peer). Communication interface RFID Near Field Magnetic communication. Bluetooth 4.0 Module 2,4Ghz Radio Board. Main batteries 1 X ER17335M 2/3 A - 3,6 Vcc Lithium battery. Battery replacement from outside with door closed. -
Page 13: Dimensions
Overview Dimensions C = 30/35/40/45/50/55/60/65/70/75/80/85/90 D = 10/30/35/40/45/50/55/60/65/70/75/80/85/90 Feature Characteristics Electronic knob dimensions External diameter: from 36 mm to 39 mm Length: 46 mm Mechanic knob “Standard” dimensions External diameter: 30 mm Length: 31 mm Mechanic knob “Premium” dimensions External diamater: da 36 mm a 39 mm Length: 46 mm Stator dimensions (double knob version) Minimum: 30 - 30 mm... -
Page 14: Options And Versions
Overview Options and versions Libra Smart can be supplied in different options and versions. The followings are the most commons ones. For all options and detailed information, check the on-line catalogue at: http://iseozero1.com/iseozero1/index.html 1) Libra Standard: double knob with external reader only (mechanic knob inside). - Page 15 Options and versions 2) Libra Double: double knob with external and internal reader. In this configuration both sides of the door are controlled by the electronic cylinder. The two electronic readers are totally independent one from the other, both physically and logically. In order to install the cylinder on the lockcase, the knob of one side (named inside), can be dismounted from the mechanical body.
-
Page 16: Package Contents
Getting Started Package contents The product box contains the following items: • Libra Smart electronic cylinder • Lithium battery • Fixing screw • Allen key • Installation guide • Warning sheet The items supplied with the Device and any available accessories may vary depending on the region or... -
Page 17: Installing Libra Smart
For this operation, please refer to the Installation Guide, available at: http://gamma.iseozero1.com/controllo-accessi/ For a correct procedure see also chapter Safety and Environment, “Warnings”. Programming and using Libra Smart For these operations, please refer to the Argo User Manual, available at: https://app.iseo.com/?parm=ARGO... -
Page 18: Maintenance
Maintenance Battery replacement Replace the Libra battery as soon as Argo app notifies you, following the procedure later illustrated in this topic. The electronic cylinder has a multilevel battery charge detection, to allow a proper and in advance alert to change the battery. - Page 19 Maintenance Lithium Battery ER17335M 2/3A 3,6Vcc When the new battery is connected to the Device, an automatic test is performed, and the Device flashes red and green alternatively, for at least 5 seconds. Wait until the procedure is completed without removing the battery.
-
Page 20: Cleaning
Storage • When Libra will not be used for an extended period, remove the battery, and store the battery in a cool, dry area, taking care that terminals doesn’t touch any conductive object or part. -
Page 21: Troubleshooting
• Fix the knob cover using the Cover ring opening (see “Battery replacement”). assembly/disassembly tooling kit. • Cover o-ring damaged. • Replace the o-ring with an equal one. To get the Libra spare part codes, refer to the on-line catalogue at : http://iseozero1.com/iseozero1/index.html... -
Page 22: Light And Acoustic Signals
For any help please contact ISEOZero1 Technical Support. You can find your country telephone number at: http://iseozero1.com/iseozero1/index.html#contacts. When you contact the ISEOZero1 Technical Support please provide the next information: • Libra Smart product code, date of purchase and software version. • Argo app software version. • Smartphone model and software version. - Page 23 Notes...
- Page 24 Iseo Serrature s.p.a. Iseo Serrature s.p.a. Via San Girolamo 13 Via Don Fasola 4 25055 Pisogne (BS) 22069 Rovellasca (CO) Italy Italy Tel +39 0364 8821 Tel +39 02 96740420 Fax +39 0364 882263 Fax +39 02 96740309 iseo@iseo.com www.iseozero1.it...
