User Manual

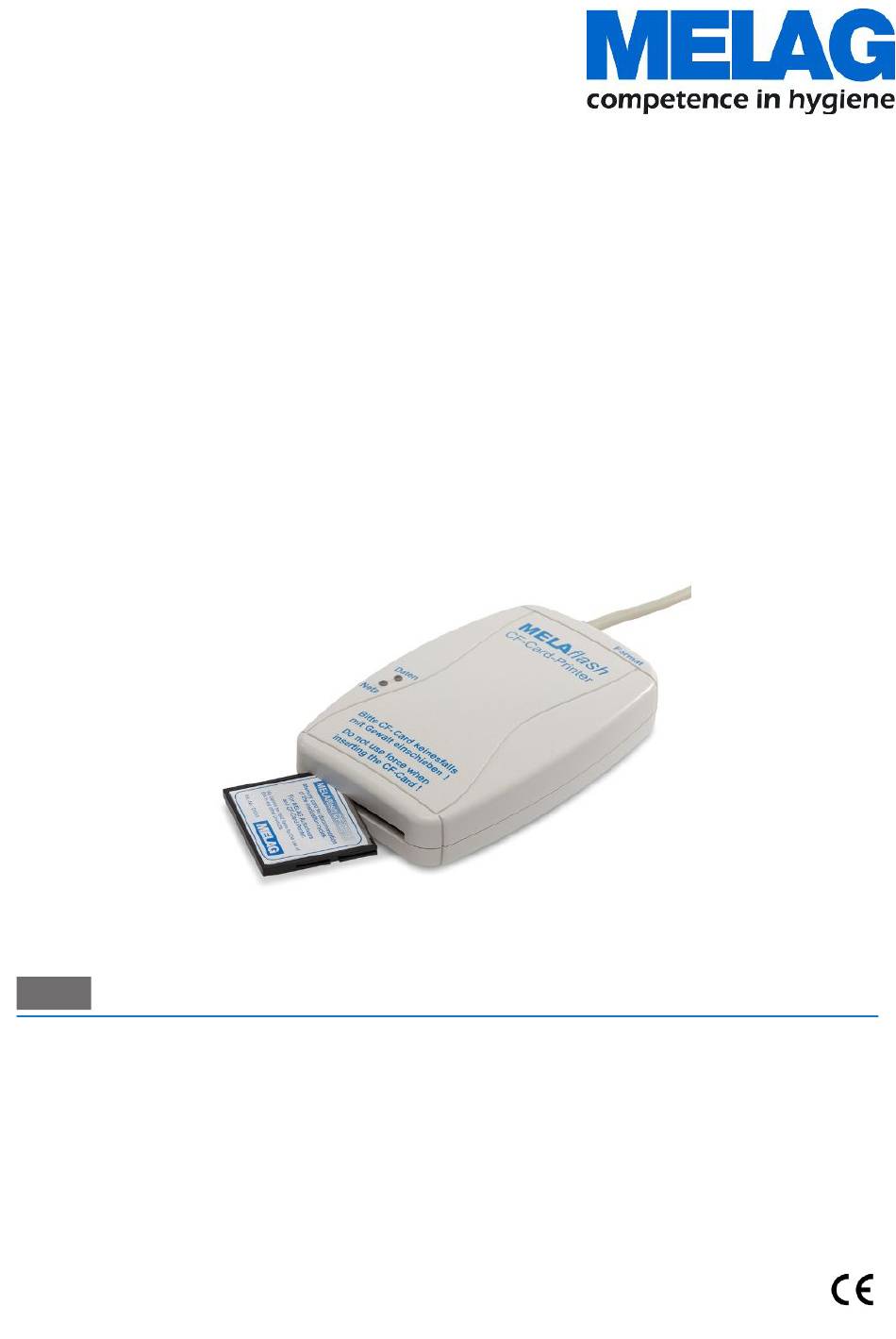

MELAflash CF-Card-Printer
CF-Card-Printer
from software version 2.000
EN
Dear doctor,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument treatment and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
management system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in
accordance with ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
Germany", we guarantee that these demands will be met. Our certified quality
"competence in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MELAflash and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MELAG MELAflash

Summary of Contents for MELAG MELAflash

  • Page 1 2.000 Dear doctor, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.

  • Page 3: Table Of Contents

    Formatting rules ................................... 4 Symbols on the device ................................. 4 2 Safety..................................... 5 3 Description of the device.............................. 6 Scope of delivery.................................. 6 Compatibility with MELAG devices ............................ 6 Views of the device ................................ 7 Status displays .................................. 7 4 First steps ..................................... 8 Connecting the CF-Card printer ............................ 8 Using the delivered CF card.............................. 8...

  • Page 4: General Notes

    Please store these user manual carefully and in close proximity to your device. It represents a component of the product. Should the user manual no longer be legible, damaged or lost, please obtain a new copy from MELAG. State the device type and your address in an e-mail.

  • Page 5: Safety

    The device may only be opened and repaired by authorized persons. The guarantee and warranty are forfeited as soon as the device is opened by anyone other than a member of a MELAG-authorized technical customer service.

  • Page 6: Description Of The Device

    3 Description of the device Scope of delivery Please check the scope of delivery before setting up and connecting the device. Standard scope of delivery ▪ MELAflash CF card printer ▪ User manual ▪ Power supply ▪ MELAflash CF card ▪...

  • Page 7: Views Of The Device

    Power supply cable for power supply Format key to format the CF card Data LED (red) Power LED (green) Card slot for MELAflash CF card MELAflash card reader Fig. 1: MELAflash CF card printer Fig. 2: MELAflash card reader Status displays Power LED...

  • Page 8: First Steps

    4 First steps 4 First steps Connecting the CF-Card printer Connect the cable of the delivered power supply to the right-hand socket of the CF card printer. Plug the power plug into the socket. Ê The power LED lights up green. Connect the serial cable to the serial data connection (RS232) of the steam sterilizer.

  • Page 9: Initialise The Cf Card Printer On The Steam Sterilizer

    Press the 'P' key again. The display shows Output medium / No output medium, in case no output medium was selected yet. Navigate using the '+' key until the display shows MELAflash as output medium. Press the 'P' key to confirm. The display changes back to the Function / Output medium menu.

  • Page 10: Update

    The following outcomes in the LOG file are possible: Result Explanation The update was performed successfully. No Error The update file does not contain a MELAflash update file. Wrong file The update file could not be opened because the file or file system is Update file damaged.

  • Page 11: Troubleshooting

    6 Troubleshooting 6 Troubleshooting Problem/Event Possible causes What you can do/Measures Log directory UNKNOWN on the If a log file is not recognised, the To reset the error condition, press CF card; system creates a directory briefly on the Format key on the UNKNOWN on the CF card.

  • Page 12: Technical Data

    7 Technical data 7 Technical data Model name MELAflash CF card printer Suitable storage media Compact-Flash Card (CF Card), file system FAT16 Device dimensions (H x W x D) 2.3 x 7.5 x 11.5 cm Ambient temperature - Operation 0 - 40 °C - Storage 0 - 70 °C...

  • Page 13: Accessories

    8 Accessories 8 Accessories Article Art. no. Power supply unit for MELAflash CF-Card-Printer 30403 Card reader for MELAflash cards 01048 MELAflash CF-Card for documentation 01043...
  • Page 14 MELAG Medizintechnik oHG Geneststraße 6-10 10829 Berlin Germany email: info@melag.com Web: www.melag.com Responsible for content: MELAG Medizintechnik oHG We reserve the right to technical alterations Your stockist...
