PolyJohn PS14 Series Operation & Maintenance Manual

4-Person Hand Wash Station
Operations & Maintenance Guide

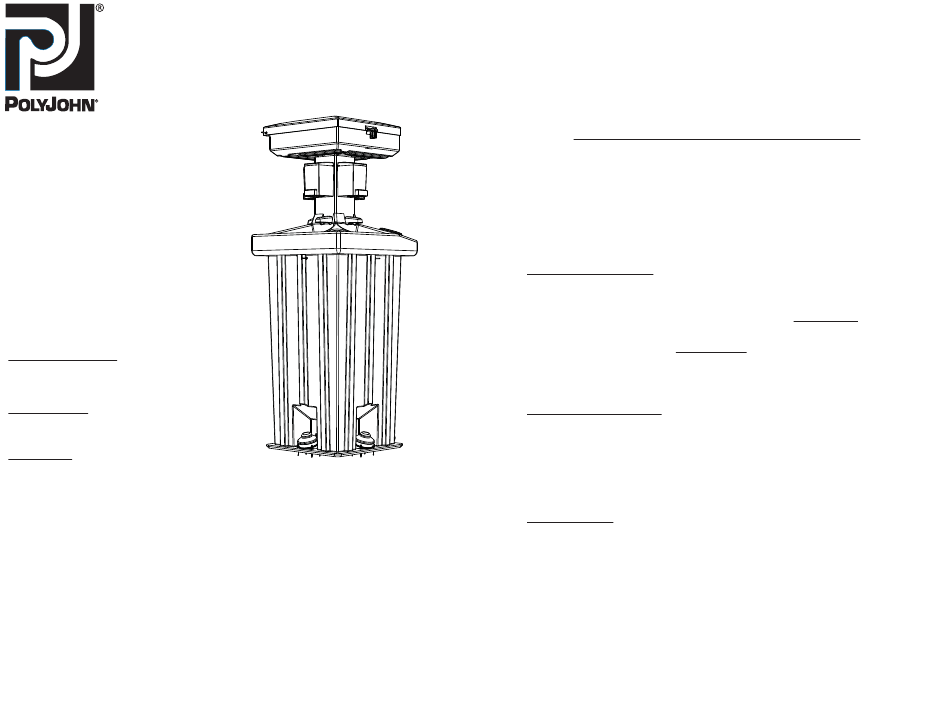

SPECIFICATIONS

Dimension Imperial Metric
Height 58 in 147 cm
Width 22.5 in 57 cm
Depth 22.5 in 57 cm
Fresh Water
20 gal 76 L
Capacity
Gray Water
22 gal 83 L
Capacity
Pump Capacity
2 fl oz 59.1 ml
(per stroke)
Weight Empty 60 lb 27 kg
Weight Full 226 lb 103 kg
Paper Towel Dispenser
Four packs of single-fold towels (Georgia Pacifi c 23504)
250 towels per pack. 1000 per wash station.
Soap Dispensers
Capacity 4/30 fl oz 4/887 ml
Color Options
Granite Gray, Tan, Evergreen & Army Green
We recommend reading through the entire booklet prior
to proceeding with use, service or maintenance.
NOTE: All dimensions are subject to change due to environmental factors.
POLYJOHN POLYJOHN
USA WORLDWIDE
PolyJohn Enterprises Corp PolyJohn (UK) Ltd.
2500 Gaspar Ave. Equinox 1 Audby Lane
Whiting, IN 46394 Wetherby, England LS22 7RD
Phone: 800-292-1305 Phone: 44 (0) 1937-583333
Fax: 219-659-0625 Fax: 44 (0) 1937-583322
www.polyjohn.com www.polyjohn.co.uk
info@polyjohn.com sales@polyjohn.co.uk
PS14 Guide - July 2009
PS14 Series
All materials, including resin, pigments and additives
used to make the plastic components as well as the
plumbing components that come in contact with the
fresh water are U.S. FDA food grade compliant.
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: 800-465-9590
Fax: 705-325-8250
www.polyjohncanada.ca
info@polyjohncanada.ca
Page 1 of 4
General Product Overview & Operation Information
This self-contained, stand alone four person hand wash station is designed for
use where convenient hand washing is desired or required, such as food service
locations at outdoor events or construction sites. The compact design is ideal
for areas where limited space is available and is easy to transport. Supplied
fully assembled with a simplifi ed plumbing system that is easy to maintain.

TOOLS REQUIRED FOR SERVICE OR MAINTENANCE

• Rivet Gun
• Drill with 13/64" bit
• Standard slotted screwdriver

Fresh Water Plumbing

The plumbing system in this sink is simple and requires minimal maintenance.
If the system becomes plugged, fi rst check the foot pumps. Depress each foot
pump and observe the level of resistance. If there is resistance and water is not
dispensed, there is most likely an obstruction in the tube or at the orifi ce of the
water tap spigot. If there is no resistance and the water is not dispensed, then
either a.) a tube connection is loose or b.) an internal rubber part of the pump
needs replacing.

Drain Plumbing System

The drain system is designed to be virtually maintenance free. Each of the four
sink bowls are molded into the inner tank and the gray water drains directly
into it through the three drilled holes in the bottom of each basin. These holes
are kept small to minimize debris and foreign matter from entering the inner
holding tank.

Pump Removal

The base plate does not have to be removed for pump maintenance. The pumps
are fastened to the base plate with (4) PC-000104 - Rivets (which will have to be
drilled out to remove the pumps). Quick disconnect fi ttings are used throughout
the plumbing system. To disconnect the tubing, push the ring of the fi tting
toward the fi tting stem while at the same time pulling out on the tubing.
PS14 Guide - July 2009
Page 2 of 4
