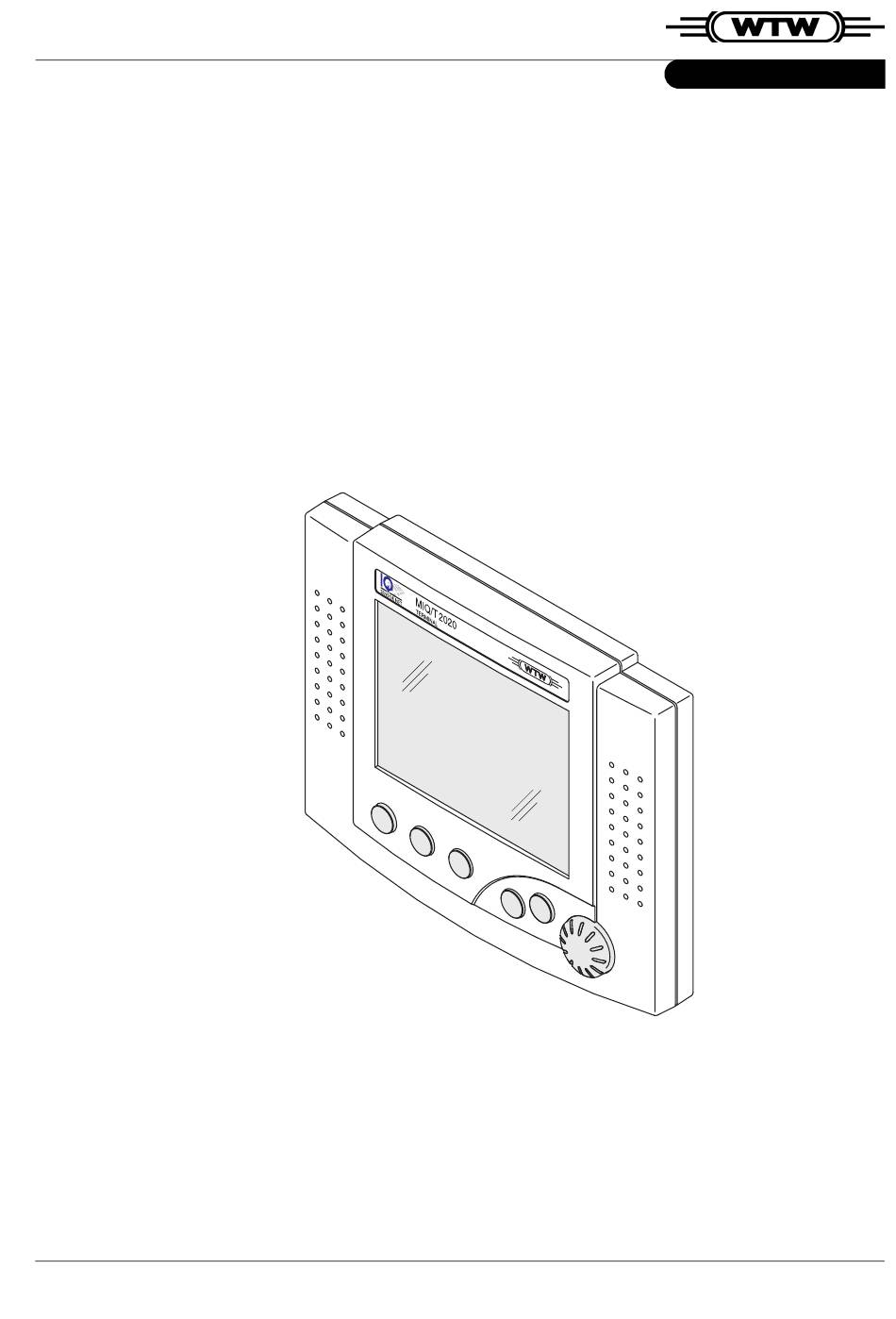

- Page 1 Operating Manual MIQ/T2020 IQ S terminal ENSOR ba64103e03 12/2002...
- Page 2 The latest version of the present operating manual can be found in the Internet under www.WTW.com. © Copyright Weilheim 2002, WTW GmbH & Co. KG Reprinting - even as excerpts - is only allowed with the explicit written authorization of WTW GmbH & Co. KG, Weilheim. Printed in Germany.
-
Page 3: Table Of Contents
How to use this component operating manual ..1-1 Features of the MIQ/T2020 terminal ....1-1 Safety instructions ......2-1 Authorized use . - Page 4 List of contents IQ Sensor Net MIQ/T2020 0 - 2...
-
Page 5: Overview
It can be docked on – and removed again from ENSOR – any free lid front of an MIQ module as a mobile control unit. The docking is performed by a simple manual action without the need for any tools. - Page 6 MIQ/T2020 ENSOR Information that describes the behavior of the terminal after the docking maneuver can be stored in each MIQ module. This information inclu- des: l The name of the respective measurement location l A selection of measured values that should be displayed at this measurement location.
-
Page 7: Safety Instructions
Safety instructions This operating manual contains special instructions that must be followed during the installation of the MIQ/T2020 terminal. Thus, it is essential for the operator to read this component operating manual before carrying out any work with the system. In addition to this manual,... -
Page 8: Authorized Use
IQ S MIQ/T2020 ENSOR Authorized use The authorized use of the MIQ/T2020 consists of its use as a control unit in the IQ S ENSOR Please keep to the technical specifications according to chapter 7 . Only operation according to the instructions in this ECHNICAL DATA operating manual is authorized. -
Page 9: Installation
ENSOR system. 3.2.1 Docking and removing a terminal The mobile MIQ/T2020 terminal is docked on the lid of any free MIQ module. The terminal can be docked while the system is running without the measurement being interrupted. Docking the terminal Fig. - Page 10 ENSOR Note For the temporary docking of a mobile terminal, do not remove the whole contact cover. Leave it hanging on the side of the MIQ module. After removing the terminal, replace the cover again to protect the contacts. Fig. 3-2 Docking the terminal Place the terminal on the module lid.
-
Page 11: Net S184 System
Materials required l Wire end sleeves for 0.75 mm wire cross-section with matching crimping tool l 1 x cable gland with seal (scope of delivery of MIQ module). l Cable stripping knife Tools l Wire stripper l Phillips screw driver l Small screw driver. -
Page 12: Initialization
Installation IQ S MIQ/T2020 ENSOR 3.2.3 Initialization When the system is running, the terminal automatically starts to operate as soon as contact is established to the IQ S . In the ENSOR first phase, the background illumination of the display switches on and the terminal is initialized. -
Page 13: Operation
IQ S MIQ/T2020 Operation ENSOR Operation Introduction The MIQ/T2020 terminal is a control unit for the IQ S ENSOR The terminal can be used to: l Display measured values l Start calibration l Perform system and terminal settings l Display messages. -
Page 14: Overview Of The Operating Elements
5 keys ENSOR and the rotary switch MIQ/T 2020 TERMINAL Fig. 4-1 View of the MIQ/T2020 terminal Display (see section 4.1.2 D ISPLAY Rotary switch (see section 4.1.4 R OTARY SWITCH 5 keys (see section 4.1.3 K... -
Page 15: Display
IQ S MIQ/T2020 Operation ENSOR 4.1.2 Display The display contains the following information: Fig. 4-2 View of the display Name of the display Name of the terminal Date Time Lock safety setting: open (settings released) – System settings can be changed closed (settings locked) –... - Page 16 Operation IQ S MIQ/T2020 ENSOR Note A detailed description of the log book is given in the IQ S ENSOR system operating manual. Measured value display The measured value display contains the following information for each sensor/differential sensor: Fig. 4-3...
-
Page 17: Keys
IQ S MIQ/T2020 Operation ENSOR Special displays Init Sensor is being initialized l during commissioning or l if a new sensor is identified and this does not yet provide any measured values Sensor is being set ---- Invalid measured value... -
Page 18: General Operating Principles
Operation IQ S MIQ/T2020 ENSOR Note The selection highlighted with the rotary switch is displayed as white text on a black background (reverse video). General operating principles The operation of the IQ S is standardized and user-friendly. ENSOR l Make a selection with the rotary switch –... -
Page 19: Navigating In Menus, Lists And Tables
IQ S MIQ/T2020 Operation ENSOR 4.2.1 Navigating in menus, lists and tables Open the Settings/Einstellungen menu with Menus appear on the display in the form of a list, e.g. the Settings/Einstellungen menu shown here. Fig. 4-4 100 - Settings/Einstellungen Select a menu item (e.g. System settings) with... -
Page 20: Entering Text Or Numerical Values
Operation IQ S MIQ/T2020 ENSOR 4.2.2 Entering text or numerical values You can assign names to sensors, outputs, terminals and locations. Example: Entering a sensor name: Open the Settings/Einstellungen menu with Select the Edit list of sensors menu item with Confirm the menu item (e.g.Edit list of sensors) with... - Page 21 IQ S MIQ/T2020 Operation ENSOR Fig. 4-6 120 - Edit list of sensors Note The following letters, numerals and special characters can be entered: AaBb..Zz0..9µ%&/()+-=><!?_ °. Select a letter or numeral with Confirm the letters with character appears behind the last letter.
- Page 22 Operation IQ S MIQ/T2020 ENSOR l To add a new character Select the character to be added with and confirm with l To delete the last character Select the character with and confirm with l To adopt the name Select the...
-
Page 23: Software Status
IQ S MIQ/T2020 Operation ENSOR Software status The system gives information on the current versions of the software. Call up the measured value display with Open the Settings/Einstellungen menu with Select the Service info menu item with and confirm with . - Page 24 Operation IQ S MIQ/T2020 ENSOR 4 - 12...
-
Page 25: Settings/Setup
Note If the selected system language ist not available in a component, all dis- plays of this component (sensor, controller, terminal, MIQ/CR3) will appear in the standard language, German. To activate the selected system language for this component, the software of the component has to be updated. -
Page 26: Terminal Settings
Settings/Setup IQ S MIQ/T2020 ENSOR Terminal settings The terminal settings include: l Terminal name, user-defined l Illumin. brightness l Display contrast Open the Settings/Einstellungen menu with Select the Terminal settings menu item with and confirm with The Terminal settings display opens. - Page 27 IQ S MIQ/T2020 Settings/Setup ENSOR Illumination brightness The brightness of the illumination can be continuously adjusted. Select the Illumin. brightness menu item with and confirm with Select a brightness level and confirm with Display contrast The contrast level of the display can be continuously adjusted.
- Page 28 Settings/Setup IQ S MIQ/T2020 ENSOR 5 - 4...
-
Page 29: Maintenance And Cleaning
IQ S MIQ/T2020 Maintenance and cleaning ENSOR Maintenance and cleaning Maintenance The MIQ/T2020 requires no special maintenance. The general mainte- nance of IQ S components is described in the ENSOR IQ S system operating manual. ENSOR Cleaning The cleaning of IQ S... - Page 30 Maintenance and cleaning IQ S MIQ/T2020 ENSOR 6 - 2...
-
Page 31: Technical Data
Front view: Dimensions 37,0 210,0 42,0 Stacked mounting: 37,0 48,0 Fig. 7-1 Dimension drawing of the MIQ/T2020 terminal (dimensions in mm) Mechanical construc- Housing material ASA (Acrylonitrile Styrene Acrylesterpoly- tion mer) Weight Approx. 0.7 kg Type of protection – IP 66 –... - Page 32 Technical data IQ S MIQ/T2020 ENSOR Electrical data Supply voltage Max. 24 VDC via the IQ S (for ENSOR details, see chapter T of the ECHNICAL DATA system operating manual) Power consumption 3.0 W 7 - 2...
