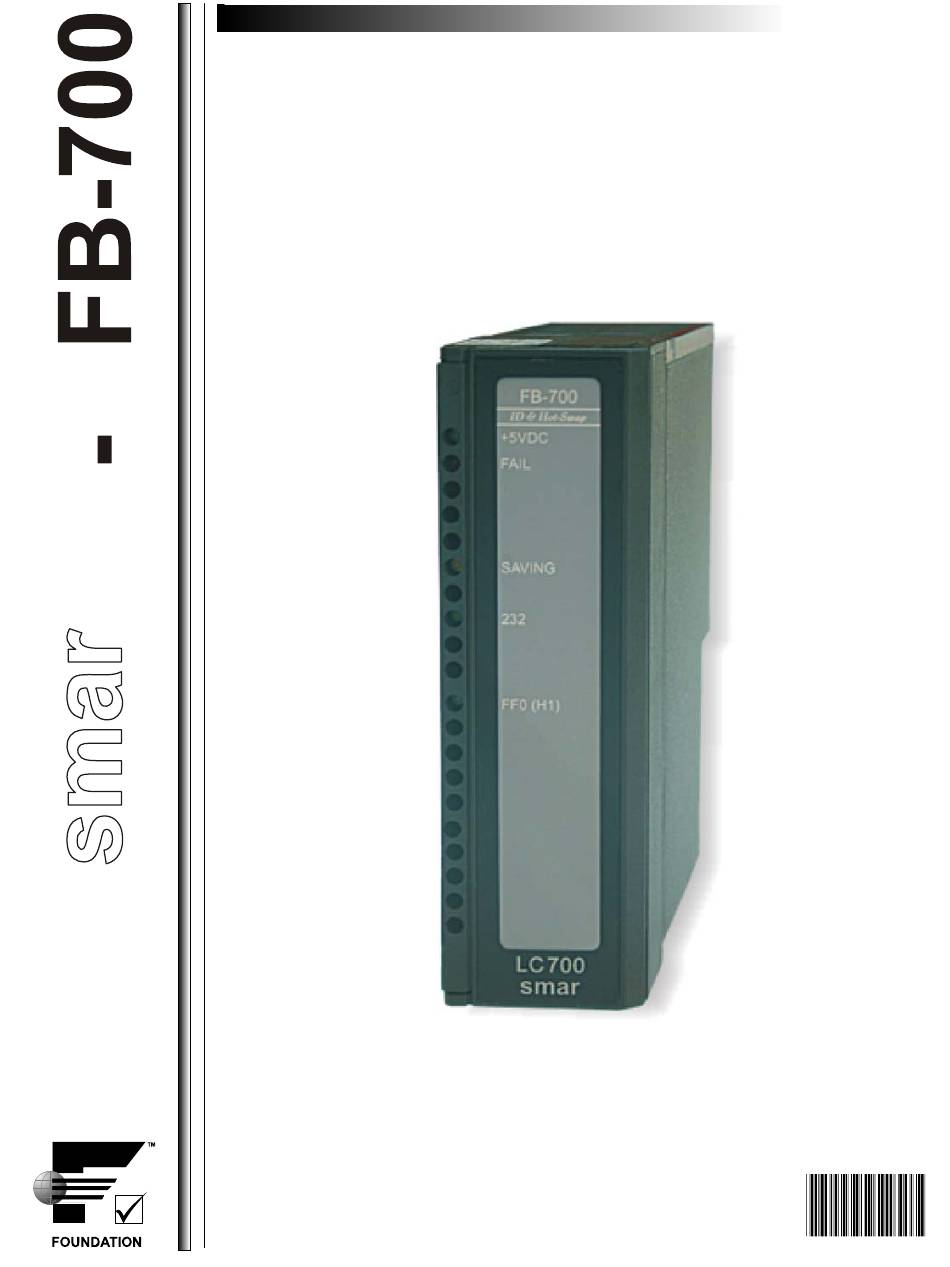

- Page 1 USER MANUAL FB-700 - Fieldbus Module APR / 08 F B7 0 0 ME...
- Page 2 Specifications and information are subject to change without notice. Up-to-date address information is available on our website. web: www.smar.com/contactus.asp...
- Page 3 The software and firmware compatible with the new version of the module are available from System302 V7.0.6. For previous versions of System302, the upgrade for SerialDownload and firmware can be downloaded from the FB700 page at the Smar website (www.smar.com.br). WARNING The previous versions from firmware 3.46J may be downloaded to the module (with the SerialDownload...
- Page 4 FB-700 – User’s Manual...
-
Page 5: Fb-700 - Fieldbus Module
FF device, even from manufacturers other than Smar. The FB-700 is directly attached to the LC700 backplane. The LC700 accesses it as a regular I/O card, which supports many digital and analog I/O points mapped to the FB-700 function blocks. For proper operation, both CONF700 and SYSCON should configure the card. -
Page 6: Firmware Version Changes And Updates
Before connecting or disconnecting the FB-700 from the LC700 backplane, please be sure that the LC700 power is OFF. LEDs behavior The FB-700 red and yellow LEDs indicate errors and warnings as described in the following tables: Yellow Led FB-700 is saving nonvolatile data. After finishing this operation Always on the yellow led will be turned off. - Page 7 CABLE EIA-232 TO CONNECT FB-700 Part Number: C232-700 – cable to connect FB-700 module to the PC Description This cable must be used in updating/changing the firmware version in the internal flash memory of the FB-700 module.
-
Page 8: Technical Specifications
FB-700 – User’s Manual FB-700 FB-700 ID & Hot-Swap PGND +5VDC +5VDC +5VDC +5VDC FAIL FAIL 0,5A SAVING SAVING FACTORY INIT RESET FF0 (H1) FF0 (H1) FF0 (H1) smar Fieldbus Module FB-700 Technical Specifications Type Low Power Microcontroller 8-bit CISC... -
Page 9: Dimensions And Weight
FB-700 – Fieldbus Module DIMENSIONS AND WEIGHT 39.9 x 137.0 x 141.5 mm Dimensions (W x H x D) (1.57 x 5.39 x 5.57 in) Weight 0.261 kg CABLES One wire 14 AWG (2 mm Two wires 20 AWG (0.5 mm Installing the Module in the Rack Follow the steps below to install the module in the rack. - Page 10 FB-700 – User’s Manual...
- Page 11 Appendix A smar SRF – Service Request Form Proposal Nº: FB700 – Fieldbus Module COMPANY INFORMATION Company: _____________________________________________________________________________________________________ Unit/Department:___________ _____________________________________________________________________________________ Invoice:______________ ________________________________________________________________________________________ COMMERCIAL CONTACT Full Name:______ _______________________________________________________________________________________________ Phone:___ _________ _________________________ _________ _________________________ Fax: _______________________ Email: _______________________________________________________________________________________________________ TECHNICAL CONTACT Full Name: _____________________________________________________________________________________________________...
- Page 12 FB-700 – User’s Manual...
-
Page 13: Smar Warranty Certificate
Appendix B SMAR WARRANTY CERTIFICATE SMAR guarantees its products for a period of 24 (twenty four) months, starting on the day of issuance of the invoice. The guarantee is valid regardless of the day that the product was installed. SMAR products are guaranteed against any defect originating from manufacturing, mounting,... - Page 14 13. It is the customer’s responsibility to clean and decontaminate products and accessories prior to shipping them for repair, and SMAR and its dealer reserve themselves the right to refuse the service in cases not compliant to those conditions. It is the customer’s responsibility to tell SMAR and its dealer when the product was utilized in applications that contaminate the equipment with harmful products during its handling and repair.
