ENET-710 - Ethernet Module
JAN / 06
ENET-710
E N E T 7 1 0 M E
FOUNDATION
Ethernet / RS-485/ RS-232C www.esma-rt.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENET-710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMAR ENET-710

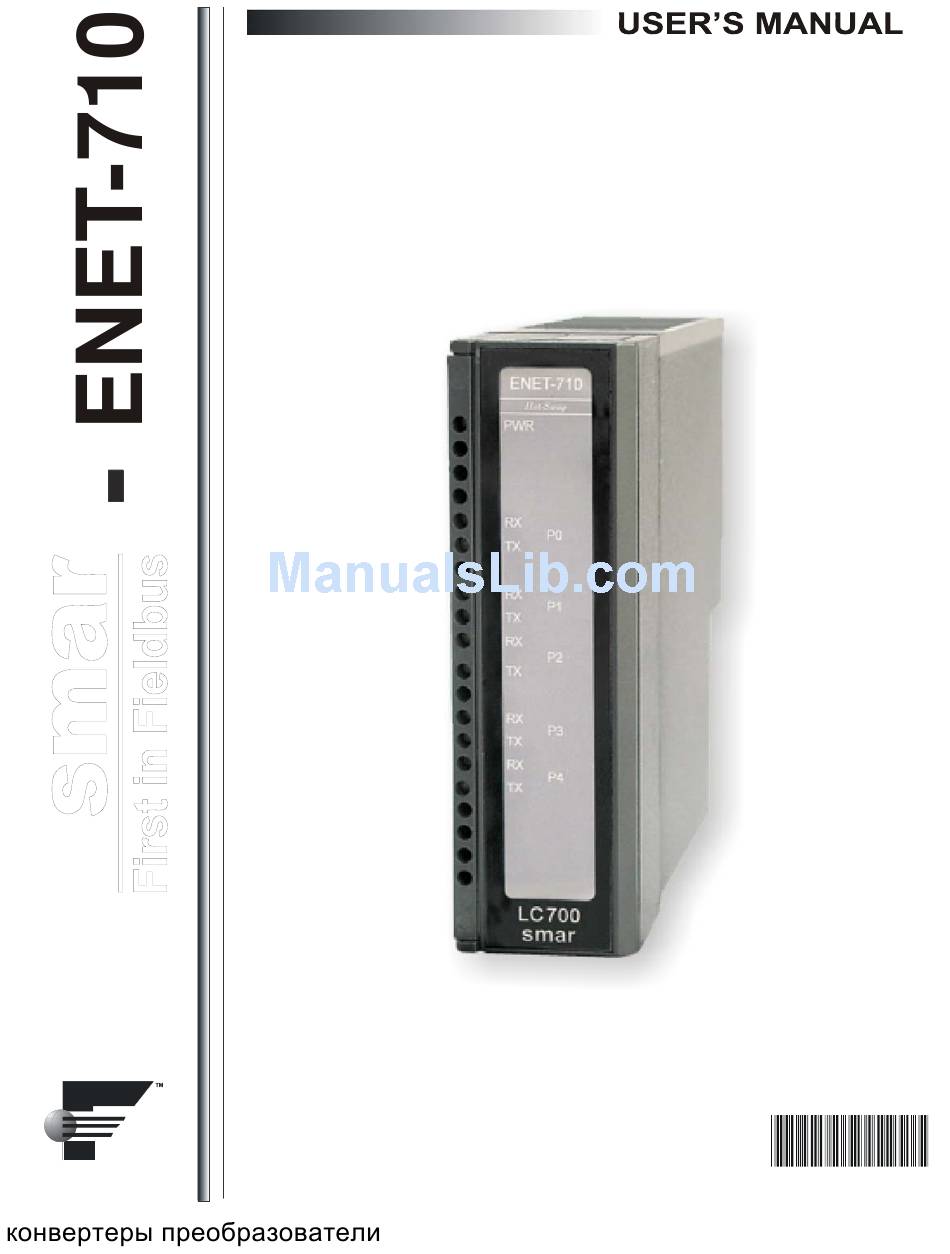

  • Page 1 ENET-710 - Ethernet Module JAN / 06 ENET-710 E N E T 7 1 0 M E FOUNDATION Ethernet / RS-485/ RS-232C www.esma-rt.ru...
  • Page 2 Specifications and information are subject to change without notice. Up-to-date address information is available on our website. web: www.e sma-rt.ru...
  • Page 3: Table Of Contents

    Using Locator .................................7 Serial Port Configuration ..............................10 RS-485 Port Operating Modes .............................10 Changing the IP Address and Username/Password ....................11 Default Switch..............................12 Technical Specifications ..........................13 APPENDIX A – SRF – SERVICE REQUEST FORM ............A.1 APPENDIX B – SMAR WARRANTY CERTIFICATE............B.1...
  • Page 4 ENET-710 – User’s Manual...
  • Page 5: Enet-710 Module

    Ethernet and the CD600 Multi-Loop Controller with the CD600 configuration software. The ENET-710 supports 10/100 Mbps Ethernet and serial speeds of up to 115,200 bps. The module is easily configured over the Ethernet connection via a web page using a web browser. Access to the configuration web page is username/password protected.
  • Page 6: Features

    One (1) individual support DF9. Module Installation The ENET-710 can be installed into the rack R700-4 to receive power or can be powered from an external +24VDC power supply using DF9 individual support. In both cases, when the module is powered, the green power indicator LED at the top of the module will illuminate.
  • Page 7 ENET-710 – User’s Manual Figure 2 – Rack Mounting a module in the rack: Find the border located at the top of the free slot. Fit the hole, at the top back of the module. Mounting detail. Lock the module in the connector (slot) of the IMB by pushing it against the rack.
  • Page 8: Installation Of The Module Into The Df9 Individual Support

    The ENET-710 supports up to 7 TCP/IP sockets, enabling up to a total of 7 clients or applications to communicate with the ENET-710 for accessing slave serial devices. Note that accessing the ENET- 710 configuration web page does not count against the 7-socket limit.
  • Page 9: Serial Port Connectors

    Ethernet port over the appropriate socket. The ENET-710 also handles command time-outs on the serial port network. In the case that a serial device fails to respond, the ENET-710 replies to the client with a Modbus/TCP timeout exception code. In the case of an invalid response from a Modbus/RTU slave (including bad CRC), the ENET-710 will ignore this response and the client must perform the error handling.
  • Page 10: Configuration Access

    ENET-710 – User’s Manual address and subnet mask are set up with the configuration web page. The user can also enable serial port redundancy modes using the configuration menu. Configuration Access To access the configuration web page, make certain your PC’s IP address is on the same subnet as the module.
  • Page 11: Default Configuration

    IP address of 192.168.1.1 with a subnet mask of 255.255.255.0. Using Locator Another way to configure the IP address of ENET-710 module is using the Locator, obtained from the Smar Laboratories web site (www.smarlabs.com). In order to make this, observe the steps below: 1 –...
  • Page 12 4 – The Locator will be copied to the folder chose by the user. Double click on the icon to open it. The following window will be showed. 5 – Click on Configure button to set the IP address of ENET-710 module. After that, click on OK button. Note...
  • Page 13 Once the correct username and password are entered, the ENET-710 will remember them for the rest of the session. If you forget your current username or password or IP address, see the Defaults Switch section of this...
  • Page 14: Serial Port Configuration

    For a particular serial port, any and all slave devices connected to it must all be set to the same parameters that were selected for the serial port. • When selecting 2 stop bits for a port, the ENET-710 will ignore the parity setting in the menu and use no parity. •...
  • Page 15: Changing The Ip Address And Username/Password

    For both parallel and ring mode, the operation is as follows: if communication is directed to an address that is configured to be on one port of the pair but there is no response, the ENET-710 will then try to communicate to the device using the other port in the pair.
  • Page 16: Default Switch

    ENET-710. Default Switch The ENET-710 default configuration consists of the IP address of 192.168.1.1, a subnet mask of 255.255.255.0, and a username of admin with no password set. In case of a lost or forgotten username/password or IP address, turn on the switch accessed through the air vent opening on top of the module by sliding the switch toward the back of the module with the module powered.
  • Page 17: Technical Specifications

    ENET-710 – User’s Manual Technical Specifications CONTROLLER Type 8-bit Program Memory Flash NETWORK INTERFACE IEEE 802.3 10Mbps 10BASE-T Ethernet IEEE 802.3u 100Mbps 100BASE-TX Medium Category 5 or UTP Protocols Modbus TCP, TCP/IP e HTTP Open TCP connections Maximum of 7...
  • Page 18 ENET-710 – User’s Manual...
  • Page 19: Appendix A - Srf - Service Request Form

    Appendix A smar SRF – Service Request Form Proposal Nº: ENET-710 COMPANY INFORMATION Company: _____________________________________________________________________________________________________ Unit/Department:___________ _____________________________________________________________________________________ Invoice:______________ ________________________________________________________________________________________ COMMERCIAL CONTACT Full Name:______ _______________________________________________________________________________________________ Phone:___ _________ _________________________ _________ _________________________ Fax: _______________________ Email: _______________________________________________________________________________________________________ TECHNICAL CONTACT Full Name: _____________________________________________________________________________________________________ Phone: _________ _________________________...
  • Page 20 ENET-710 – User’s Manual...
  • Page 21: Appendix B - Smar Warranty Certificate

    Appendix B SMAR WARRANTY CERTIFICATE SMAR guarantees its products for a period of 24 (twenty four) months, starting on the day of issuance of the invoice. The guarantee is valid regardless of the day that the product was installed. SMAR products are guaranteed against any defect originating from manufacturing, mounting,...
  • Page 22 13. It is the customer’s responsibility to clean and decontaminate products and accessories prior to shipping them for repair, and SMAR and its dealer reserve themselves the right to refuse the service in cases not compliant to those conditions. It is the customer’s responsibility to tell SMAR and its dealer when the product was utilized in applications that contaminate the equipment with harmful products during its handling and repair.
