Piranha CNC Plasma Cutting Table Operating Manual page 162

K. How to use remnant material sheet?
To make the best use of your material sheet especially larger size ones, it is very important to save the
remnant material sheet for the future cutting.

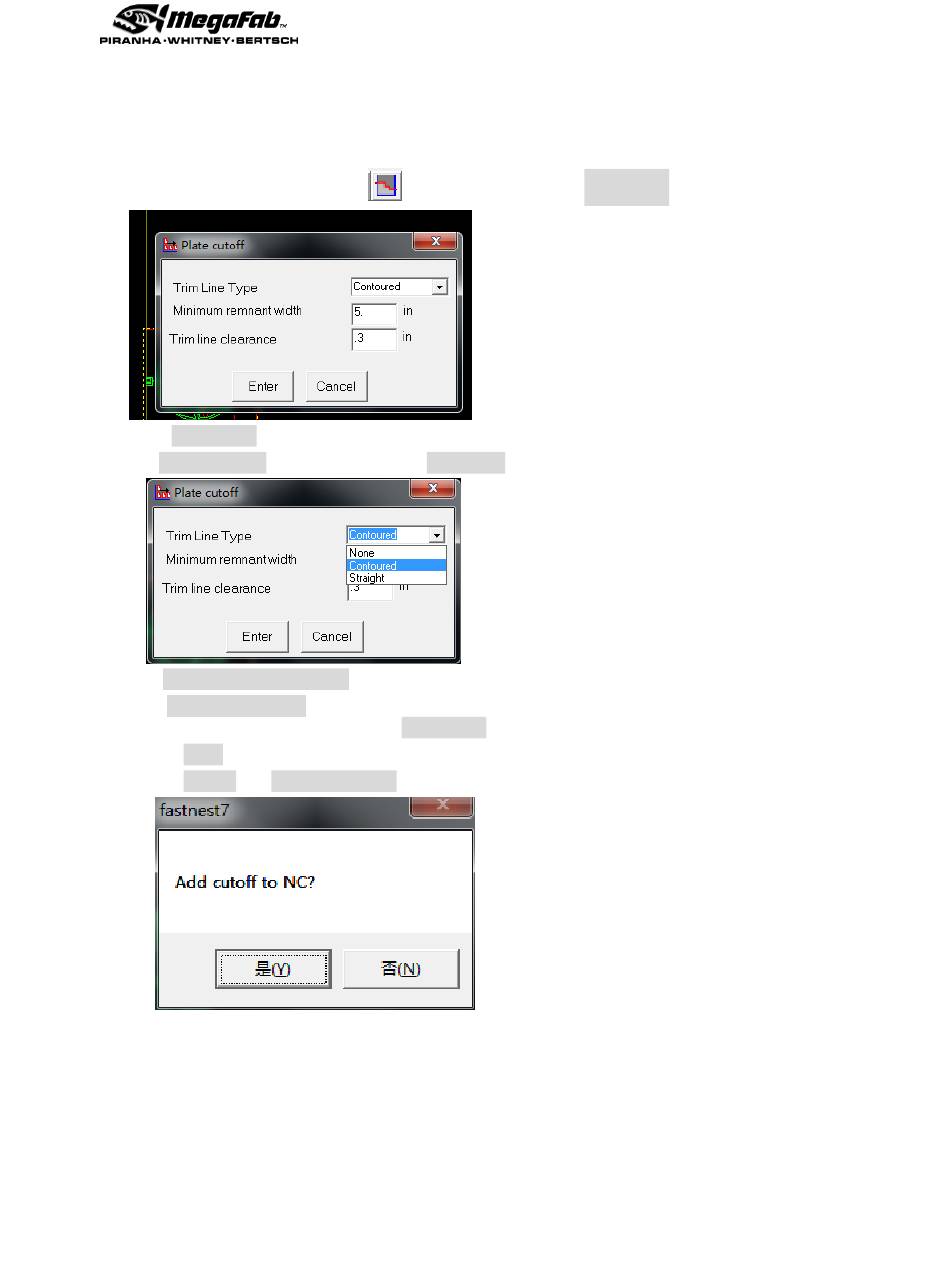

1. After adding all the parts, click
2. On Plate cutoff page:
i. Trim Line Type, normally, we choose Contoured;
ii. Minimum remnant width = the smallest width/length of sheet you can use;
iii. Trim line clearance means how close you want the outline of remnant sheet to the parts you will
cut. Normally we set it the same as Part to Part distance.
3. Click Enter to save all the settings;
4. Click Output and Generate Output, once you save NC(.TXT) file, a small page comes out;
