IMP De Mayo D2 Knee Positioner Instructions For Use

Carriage

De Mayo D

Knee Positioner

Carriage

nstructions

Carriage Removal

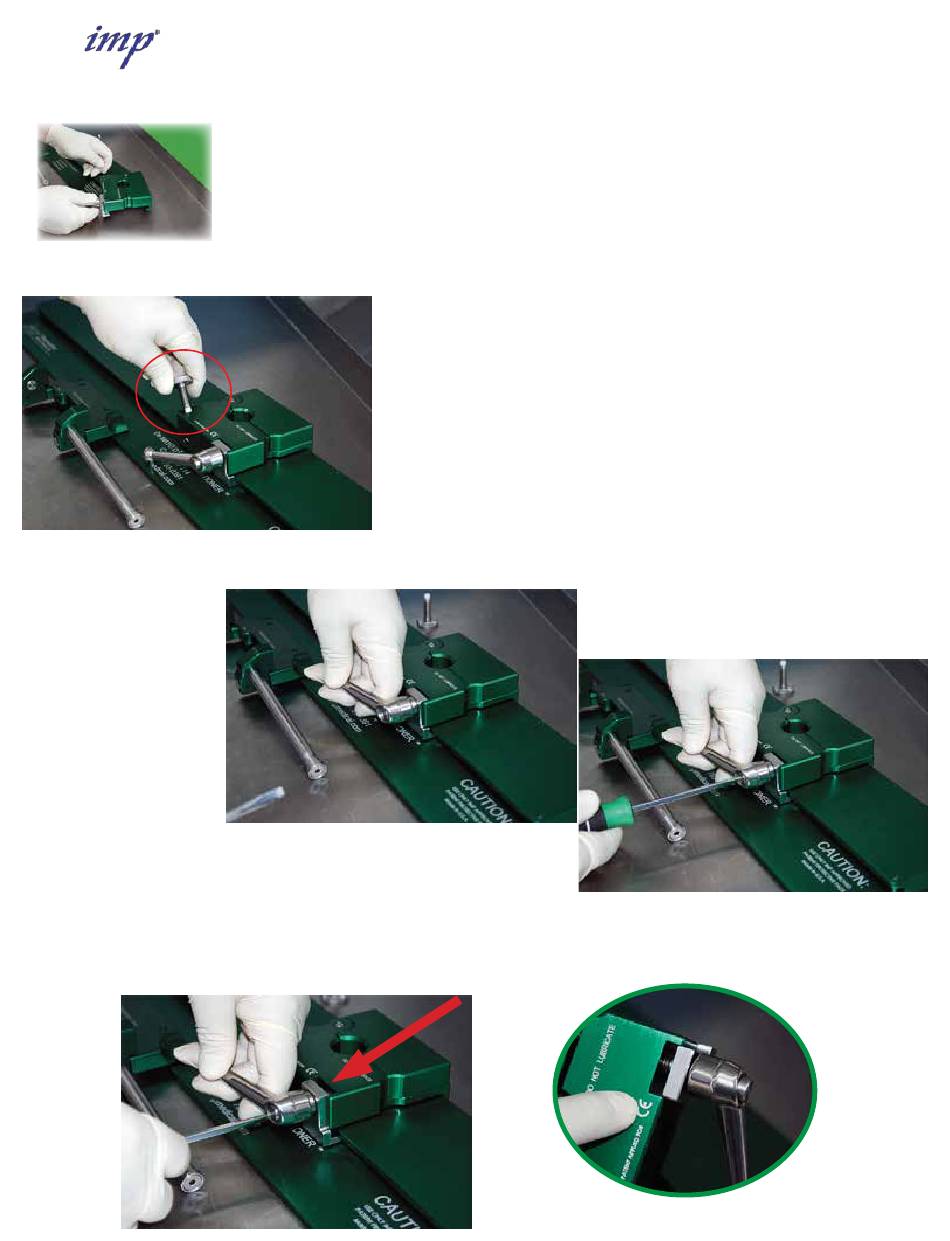

1. Remove the E-Brake from the carriage.

2. Pull the handle

towards you and

insert a flat-head

screwdriver into

the screw on the

handle.

3. Create a 4 to 6 millimeter gap between the L plate and the carriage.

Table of Contents

Do you have a question about the De Mayo D2 Knee Positioner and is the answer not in the manual?

Page 1 De Mayo D Knee Positioner Carriage ® nstructions Carriage Removal 1. Remove the E-Brake from the carriage. 2. Pull the handle towards you and insert a flat-head screwdriver into the screw on the handle. 3. Create a 4 to 6 millimeter gap between the L plate and the carriage.
Page 2 De Mayo D Knee Positioner Carriage ® nstructions 4. Slide the carriage towards the end of the Base Plate aligned with the mark. 5. Slide the carriage around the curved end of the Top Plate. 6. Unthread the handle, remove it, and open the carriage for cleaning.
Page 3 De Mayo D Knee Positioner Carriage ® nstructions Carriage Replacement 1. Close the plates of the carriage and thread the handle back into the carriage leaving a 4 to 6 millimeter gap between the L plate and the carriage. 2. While holding the Teflon Pad, slide the carriage onto the top plate starting on the handle side, then around the curved end on the opposite side.
Page 4 De Mayo D Knee Positioner Carriage ® nstructions 4. With the boot locked into place, pull the handle and rotate to the right to the 3 o’clock position and replace the E-Brake. Set Up Test Procedure 1 ~ Check that the locking handle locks the ball of the boot and is in the 3 o’clock position.
