MultiConnect ® xDot TM Developer Kit
Welcome
This Quick Start includes information on the MultiConnect
Developer Kit.
The MultiConnect xDot (MTXDOT) is a LoRaWAN
device, capable of two way communication over long distances, deep into
buildings, or within noisy environments using the unlicensed ISM bands in
North America, Europe and worldwide. The xDot is a compact surface-
mount device with an mbed enabled processor and enhanced security.
® ®
The xDot features an integrated ARM Cortex
compatible software library for developers to control, monitor and bring
edge intelligence to their Internet of Things (IoT) applications.
The xDot developer kit comes with an xDot already mounted on the
developer board. Simply plug the developer kit into a USB port on your
computer to test, program, and evaluate your application.
Developer Kit Package Contents
Your Developer Kit (MTMDK-NX-XDOT) includes the following:
Developer Board 1 - xDot Developer Board with xDot
Customer Notices Quick Start
Firmware Updates
Before starting your project development, make sure you have the latest
firmware for the Developer Kit and xDot. Go to the xDot mbed page for
firmware. https://developer.mbed.org/platforms/MTS-xDot-L151CC/
Getting Started
Getting started depends on what you want to do. By default, xDot ships
with firmware that supports AT Commands that use the serial I/O. For AT
Commands, refer to the separate MultiConnect Dots AT Command
Reference Guide.
To send commands to the xDot:
1. Plug the developer board into a USB port.
Quick Start
MultiTech Systems MultiConnect ® xDot
2.
® TM
xDot
3.
TM
, low-power RF
TM
-M3 processor and mbed
Two serial interfaces are available through the USB interface, one is used
to send AT commands to the xDot and the other is for debug messages.
Refer to Specifications and Pin Information in the MultiConnect xDot
Developer Guide for information on which pins are available out of the
box.

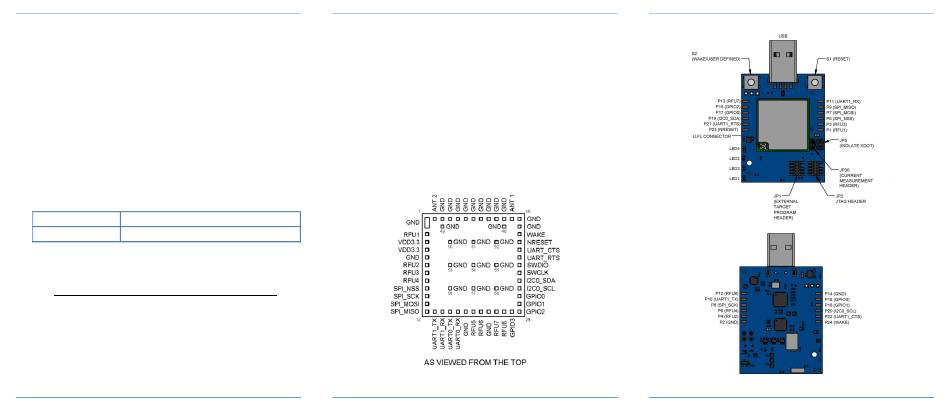

xDot Pinout
TM Developer Kit MultiTech Systems
Open communications software, such as TeraTerm, Putty,
or Minicom.
Set the following:
■ Baud rate = 115,200
■ Data bits = 8
■ Parity = N
■ Stop bits = 1
■
Flow control = Off
