Airaid 312-366 Installation Instructions

R
Z
AA

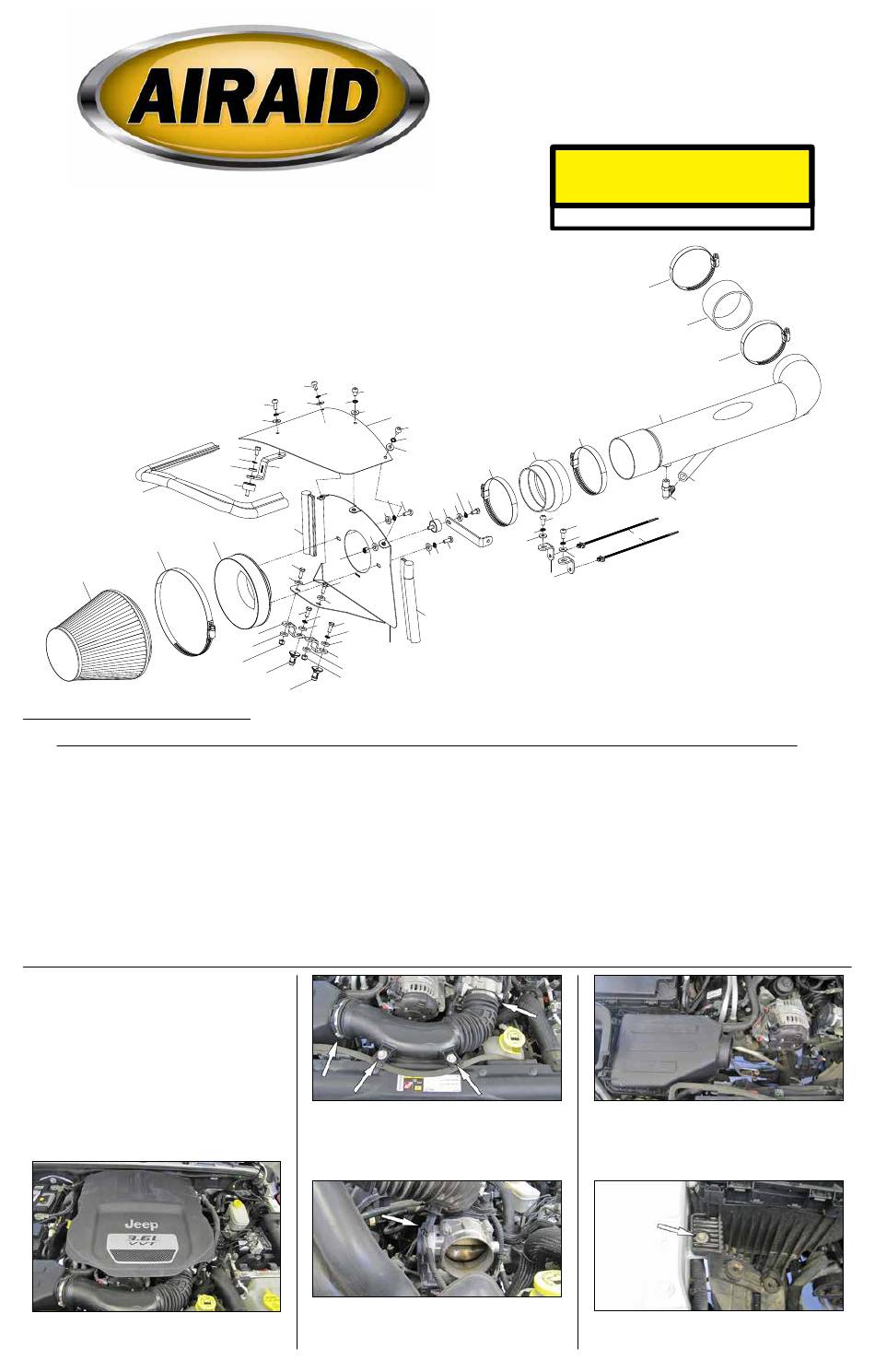

Component Identification
Description
A HOSE CLAMP # 52
B HOSE; 3-1/4" ID X 2"L REINFORCED
C INTAKE TUBE
D HOSE; 5/8"ID X 14"L
E VENT; 90DEG, 5/8" HOSE, 1/4"NPT, BLACK
F HOSE CLAMP #56
G HOSE; 3-1/2"ID X 2-1/2"L HUMP REINFORCED
H BOLT; M6 X 1.00" 12MM BUTTONHEAD,SS
I ZIP TIE, 8" TREE PUSH-MNT
J WASHER; M6 SPLIT LOCK ZINC
K WASHER; 6MM FLAT, SS
L BRACKET; 69-2521, "L", SML, STL, TB/PC
M BOLT; M6 X 1.00 X 12MM. HEXHEAD, SS
Full color instructions can be viewed on our web site at Airaid.com. If you need any assistance please call 1-800-498-6951 to speak with
TO START:
1. Turn off the ignition and disconnect the negative
battery cable.
NOTE: Disconnecting the negative battery cable
erases pre-programmed electronic memories. Write
down all memory settings before disconnecting the
negative battery cable. Some radios will require
an anti-theft code to be entered after the battery is
reconnected. The anti-theft code is typically supplied
with your owner's manual. In the event your vehicles
anti-theft code cannot be recovered, contact an
authorized dealership to obtain your vehicles anti-
theft code.
2. Lift up and remove the engine cover.
P
P
J
K
J
H
J
K
K
M
J
K
S
O
R
K
Y
U
V
K
V
K
J
V
V
K
J
W
K
K
W
U
K
X
U
X
Qty. Part #
2 08610
1 08690
1 KIT27570TK
1 084083
1 08525
2 08620
1 08699
3 07794
2 1-127
12 1-3025
16 08269
2 070066A
2 07727
a representative in our Customer Service Center before returning the product.
3. Remove the two bolts which secure the factory intake
tube to the fan shroud. Loosen the hose clamp securing
the factory intake tube to the air filter housing. Loosen
the hose clamp securing the factory intake tube to the
throttle body.
4. Lift up the intake tube and then disconnect the inlet
air temperature electrical connection. Then remove the
intake tube from the vehicle.
Installation Instructions
For Part Numbers:
312-366
2012-18 JEEP Wrangler JK
V6-3.6L
Q
P
J
G
K
F
J
J P
M
N K
O
K
J
K
P
J
K
L
R
T
Description
N BRACKET; "L", 63-1566, STL, TB/PC
O STUD; RUBBER MNT, M/F, 1/2"L X 1"W
P BOLT; M6 X 1.00 X 16MM, BUTTONHEAD, SS
Q HEAT SHIELD LID
R EDGE TRIM (35")
S BRACKET; "Z", 63-1566, STL, TB/PC
T HEAT SHIELD
U NUT; 6MM NYLOCK, HEXHEAD, SS
V BOLT; 6MM-1.00 X 16MM, SS
W BRACKET; 69-6026, "Z", STL, TB/PC
X MOUNT, PLASTIC AIRBOX
Y ADAPTER; UNIVERSAL, 6" FILTER 3.5"
Z HOSE CLAMP # 104
AA AIR FILTER
702-466 SynthaMax Dry Media Filter - Black
NOT LEGAL FOR SALE OR USE ON ANY POLLUTION
CONTROLLED MOTOR VEHICLE IN CALIFORNIA OR
STATES ADOPTING CALIFORNIA EMISSION PROCEDURES.
See Airaid.com for CARB status on each part for a specific vehicle
A
B
A
C
F
D
E
H
H
J I
K
Qty.
5. Disconnect the crank case vent hose from the crank
case vent tube. Lift up and remove the air filter housing
from the vehicle.
NOTE: AIRAID recommends that customers do not
discard factory air intake.
6. Remove the bolt shown that secures the air box mount
bracket to the inner fender.
Part #
1 083164
2 070228
5 07730
1 KIT312366LIDC
1 102471
1 083163
1 074108
3 07512
4 07812
2 070061A
2 8-186-1
1 21512-1
1 08697
1 702-466
