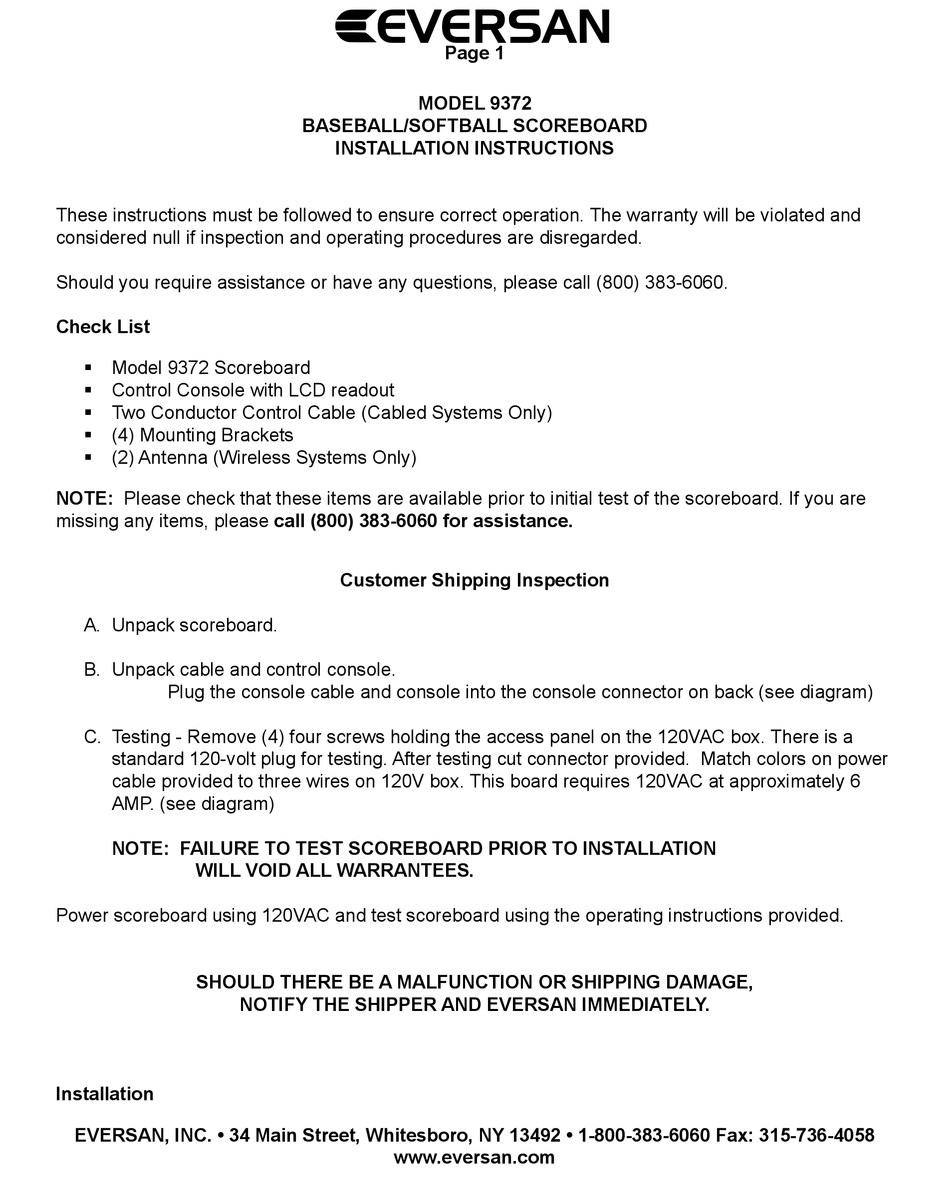

Eversan 9372 Installation Instructions Manual

These instructions must be followed to ensure correct operation. The warranty will be violated and
considered null if inspection and operating procedures are disregarded.
Should you require assistance or have any questions, please call (800) 383-6060.

Check List

 Model 9372 Scoreboard
 Control Console with LCD readout
 Two Conductor Control Cable (Cabled Systems Only)
 (4) Mounting Brackets
 (2) Antenna (Wireless Systems Only)
NOTE: Please check that these items are available prior to initial test of the scoreboard. If you are
missing any items, please call (800) 383-6060 for assistance.
A. Unpack scoreboard.
B. Unpack cable and control console.
Plug the console cable and console into the console connector on back (see diagram)
C. Testing - Remove (4) four screws holding the access panel on the 120VAC box. There is a
standard 120-volt plug for testing. After testing cut connector provided. Match colors on power
cable provided to three wires on 120V box. This board requires 120VAC at approximately 6
AMP. (see diagram)
NOTE: FAILURE TO TEST SCOREBOARD PRIOR TO INSTALLATION
WILL VOID ALL WARRANTEES.
Power scoreboard using 120VAC and test scoreboard using the operating instructions provided.
SHOULD THERE BE A MALFUNCTION OR SHIPPING DAMAGE,
Installation
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: 315-736-4058
EVERSAN
BASEBALL/SOFTBALL SCOREBOARD
Installation INSTRUCTIONS

Customer Shipping Inspection

NOTIFY THE SHIPPER AND EVERSAN IMMEDIATELY.
www.eversan.com
Page 1
MODEL 9372
