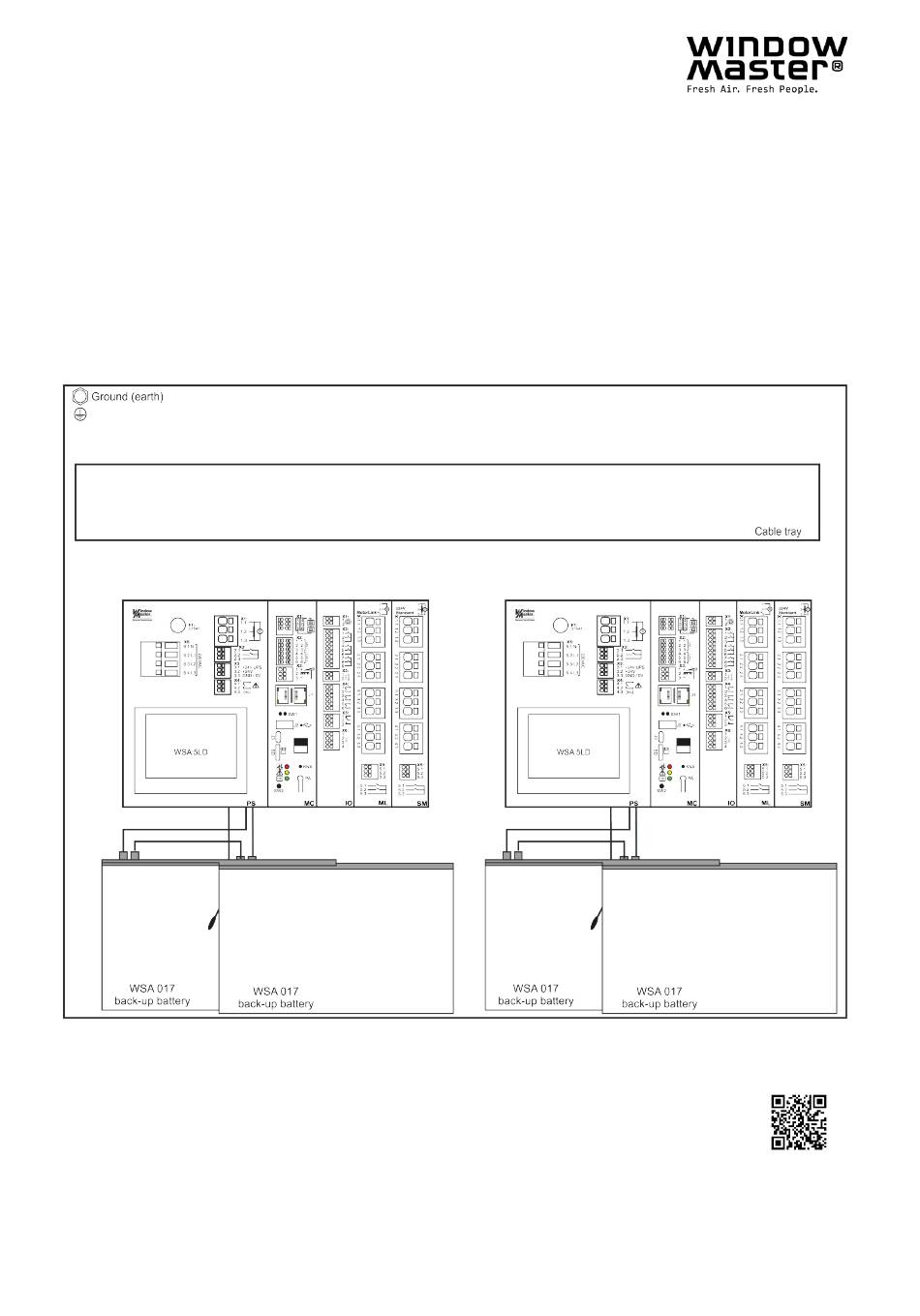

- Page 1 ™ FlexiSmoke WSC 520 / 540 / 560 Installation instruction (Version 1809 – from firmware version 0.93) The drawing shows WSC 540 KIMS KIMS Save this installation instruction to the end user Scan the QR-code and watch our installation video showing how to configure the FlexiSmoke www.windowmaster.com UK ...
-
Page 2: Table Of Contents
Contents 1 Safety information ............................... 4 Safety ................................4 230V AC ................................4 Back-up batteries ............................... 4 Application ................................. 4 Cable routing and electrical connection ......................4 2 Structure of the smoke panel ............................. 5 3 Variants of panels................................ 7 Number of motor lines, inputs and outputs depending on the combination of the three expansion modules .. - Page 3 14.16 Log in ................................50 14.17 Configuration files on SD ..........................51 14.18 Configuration files on USB..........................52 14.19 System................................53 14.19.1 Service timer ............................... 53 15 Status – main menu..............................54 16 Manual operation – main menu ..........................54 17 Configuration missing –...
-
Page 4: Safety Information
Safety information Safety Only allow correspondingly trained, qualified and skilled personnel to carry out installation work. Reliable operation and the avoidance of damage and hazards are only guaranteed if installation and settings are carried out carefully in accordance with these instructions. There may be personal danger by electrically operated windows: - the forces occurring in the automatic mode can be such that parts of the body could get crushed - when opened, actuators (spindles) could protrude into the room... -
Page 5: Structure Of The Smoke Panel
Structure of the smoke panel Sections The FlexiSmoke™ smoke ventilation panel is available in three different sizes 20A, 40A and 60A. The smoke ventilation panel consists of 20A-sections, thus WSC 520 contains one section, WSC 540 two sections and WSC 560 three sections. Modules Each section contains the power supply module WSA 5PS, the overall control module WSA 5MC and 3 slots for expansion modules. - Page 6 Break glass unit Break glass unit type WSK 50x are to be used together with FlexiSmoke™. The units are configured and assigned to smoke zones via the touch screen in the smoke ventilation panel. Inputs All inputs and outputs on the FlexiSmoke™ smoke panel can be freely configured –...
-
Page 7: Variants Of Panels
Variants of panels Item composing Size of the smoke ventilation panel WSC 5?? 20A = WSC 520, 40A = WSC 540, 60A = WSC 560 WSC 5?? Selection of modules The four modules listed below must be defined for each 20A section - WSC 520 has one section, WSC 540 has two sections and WSC 560 has three sections. -
Page 8: Number Of Motor Lines, Inputs And Outputs Depending On The Combination Of The Three Expansion Modules
Number of motor lines, inputs and outputs depending on the combination of the three expansion modules The table shows the number of motor lines and inputs obtained per 20A section depending on the combination of the expansion modules. Number Combination Outputs of expansion Motor lines... -
Page 9: Max Numbers Of Motors Per Motor Line Which Can Be Connected Per Module
Example with WSC 540 18 ±24V standard motor lines 2 x WSA 5IO input/output module WSC 540 0ISS 0ISS E1 4 x WSA 5SM ±24V standard motor modules Example with WSC 560 ® 20 MotorLink motor lines, 3 3 x WSA 5MC overall control module with WSC 560 KM00 KMM0 KMM0 E1 ±24V standard motor lines and KNX/BACnet IP... -
Page 10: Modules, Accessories, Spare Parts
Max. total 20A per section WSA 5PS-module WSA 5SM-module WSA 5ML-module ® 1 x 20A-motor line 4 x 10A-motor lines ±24V 4 x 10A-motor lines MotorLink ±24V Type of motor Motors per Motors per Motors per Motors per motor line module motor line module... -
Page 11: Technical Data
Accessories Back-up battery 18Ah (2 x WSA 017 per 20A-section) WSA 017 FlexiSmoke™ break glass unit, primary, with data communication, plastic housing. Optional WSK 501 000x connection to ventilation keypad and smoke detector (only 1 per line). (x=colour of the housing: 1=red, 2=yellow, 3=grey, 4=blue, 5=orange) FlexiSmoke™... - Page 12 Motor groups max. 13 motor lines (1 x 20A ±24V standard motor line and 12 x ±24V ® Smoke zones standard / MotorLink motor lines) in max 13 motor groups and max 13 smoke zones Via the software more motor lines can be connected in the same group Primary voltage WSC 520: 1 x 230V AC (±10%) / 50Hz WSC 540: 2 x 230V AC (±10%) / 50Hz...
-
Page 13: Mounting
Number of motor lines per module WSA 5PS 1x 20A motor line for ±24V standard motors WSA 5SM 4 x 10A motor lines for ±24V standard motors ® WSA 5ML 4 x 10A motor lines for MotorLink motors Note: A total of max 20A current consumption on each 20A section of the smoke ventilation panel Material Metal housing for surface mounting... -
Page 14: Connection Of Safety Earth Wire And 230V Ac
Connection of safety earth wire and 230V AC See chapter 10 ‘Description of modules’, section 10.1, point X5 for further description. Installation of the break glass unit, ventilation keypad and smoke detector Ensure that the break glass unit and the ventilation buttons are visible and well accessible. Do not install behind protruding walls, door panels or hidden by the building structure. -
Page 15: Max. Cable Length
Actuating current: Sum of all motor power consumption per motor line The motor supply cable must have 3 wires: 2 wires current carrying /1 wire for monitoring. Note: do not use the PE wire / green/yellow wire! ® ML-comm = MotorLink communication. -
Page 16: Max Cable Length - Motors With Motorlink
8.3.2 Max cable length – motors with MotorLink ® Before selecting the cable type, please see X1-X4 in section WSA 5ML Standard motor module. Motors with MotorLink ® Do not use the PE wire / green/yellow wire! cable cross 3 wire * 3 wire * 5 wire * 3 wire *... -
Page 17: Cable Plan For Connection To Wsc 520 / Wsc 540 / Wsc 560
Cable plan for connection to WSC 520 / WSC 540 / WSC 560... -
Page 18: Description Of Modules
Description of modules 10.1 WSA 5PS power supply module 20A Each 20A section has a WSA 5PS power supply module. The module contains: - one motor line (S1 X1) for ±24V standard motors - two free configurable inputs for connection of e.g. wind/rain sensor WLA 330 or keypad for comfort ventilation - one output for additional power... - Page 19 Example 1: Keypad and Fire Alarm System Use of cable monitoring e.g. from Fire Alarm System If cable monitoring is not used, the input has only one threshold (G1). If the input voltage is above this threshold it is inactive. If the input voltage is under this threshold it is active.
-
Page 20: Wsa 5Mc Overall Control Module
Solid state output for transmission of fault signal. Closed contact = OK Open contact = Fault A fault must last a minium of 20 seconds befoe the relay indicate a fault. Data Max voltage: 30 Vp (peak) *depends on the fire alarm system cable surveillance Max output: 150 mA Typical On-resistance: 4.7 Ω... - Page 21 For connection of break glass unit type WSK 50x. Data Break glass unit bus 1 Break glass unit bus 2 1.1 24V 1.4 24V 1.2 LIN1 (communication) 1.5 LIN2 (communication) 1.3 LIN1 GND / 0V 1.6 LIN2 GND / 0V = 64mA when 30 break glass units and 100 smoke detectors.
- Page 22 Example: 3 smoke zones and connected components; 2 break glass units WSK 501/502, 1 break glass unit type WSK 503/504, 3 smoke detectors WSA 300, 2 resistances WSA 501, 1 fireman override switch WSK 601 and 2 ventilation keypads. See chapter 9 "Cable plan for connection to WSC 5xx" for cable types and lengths. Connection of different types of smoke detectors to FlexiSmoke™...
- Page 23 More FlexiSmoke™ smoke ventilation panels can be connected together via X2. It is possible to connect up to 31 20A-sections The smoke panels are coupled via X2 in the last 20A section in panel x to the first 20A section in panel x+1. See Section 9 "Cable plan for connection to WSC 5xx"...
- Page 24 For connection of intelligent weather station (wind direction dependent smoke and heat extraction). The type of weather station is configured on the touch screen and can for example consist of: WOW 201 (wind speed), WOW 202 (wind direction), WOW 204 (junction box), WOW 203 (bracket for junction box) or WLA 340 (wind speed and rain sensor).
-
Page 25: Wsa 5Io Input/Output Module
10.3 WSA 5IO input/output module The WSA 5IO module contains: Inputs - 1 connection for external smoke detector when no break glass unit is connected - 3 free configurable inputs for connection of e.g. keypads for comfort ventilation or inputs from Fire Alarm System - 1 24/48V Fire Alarm System –... - Page 26 24/48V free configurable input from e.g. Fire Alarm Connection example System (used primarily in France). Data Active at voltages between 18 and 50V Passive below 1V Max.50V 3 free configurable solid state outputs Output circuit (simplified) 4.1 Output 1 4.2 Output 1 4.3 Output 2 4.4 Output 2 4.5 Output 3...
-
Page 27: Wsa 5Sm Standard Motor Module
10.4 WSA 5SM standard motor module WSA 5SM motor module provides: - 4 motor lines for ±24V standard motors - 1 x 2 free configurable inputs for connection of e.g. keypad or wind/rain sensor Motor line X1, X2, X3 and X4 The WSA 5SM module has four motor lines (X1, X2, X3 and X4) for connection of ±24V standard motors. - Page 28 Potential free connection for e.g. keypads, wind/rain sensor or rain sensor, if they are not connected on the WSA 5PS module. Connection for power supply for the wind/rain or rain sensors are still at WSA 3PS X3. Data Cable diameter: max 1.5 mm² 5.1 Input 5.2 Input 5.3 GND / 0V...
-
Page 29: Wsa 5Ml Motorlink Motor Module
® 10.5 WSA 5ML MotorLink motor module WSA 5ML motor module provides: ® - 4 motor lines for motors with MotorLink - 1 x 2 free configurable inputs for connection of e.g. keypad or wind/rain sensor. ® ML-comm = MotorLink communication. -
Page 30: Cable Monitoring Of Motors
Potential free connection for e.g. keypads, rain sensor or wind/rain sensor. Data Cable diameter: max 1.5 mm² 5.1 Input 5.2 Input 5.3 GND / 0V See Chapter 10, Section 10.1, point X2 for detailed description about input options, cable monitoring etc. Examples - WSK 100 keypad for comfort ventilation - WLA 330 wind/rain sensor... -
Page 31: Usage Of Non-Windowmaster Motors
11.1 Usage of non-WindowMaster motors When using non-WindowMaster motors the cable monitoring ist set to ”simple”’. Configuration of cable monotoring with non-WindowMaster motors If cable monitoring of non-WindowMaster® motors connected to the FlexiSmoke™ is required the cable monitoring type is set to ”simple”. -
Page 32: Icons
Step 3: Overview of objects which are to Step 4: Configuration of the sub menu be configured Help text The touch screen has a help function with text explaining the menu item. The help text occurs when the menu item is pressed (text on white background). -
Page 33: Motor Lines - Motor Groups - Smoke Zones
To configure a sub menu: → press the light blue number field → enter value / the number of the motor line / change factory settings etc. The setting which can be entered depends of the type of the sub menu. →... -
Page 34: Motor Line
14.2 Motor line Motors are to be connected on the motor lines. ® Depending the type of module either ±24V standard motors or motors with MotorLink can be connected. 14.2.1 Motor line - numbering All motor lines are numbered and they are all to be configured. 14.2.2 Motor line - configuration Press ”Motor line”... -
Page 35: Colour Code - Motor Line
For ±24V motors the full chain length is defined as a runtime of 60 seconds. To ensure the windows are 100% open or closed, the chain length is run twice (120sec). This can have an influence when configuring the a sequence control. Motor lines configuration The ±24V motors are to be configured in: 1. -
Page 36: Motor Group Configuration
14.3.1 Motor group - configuration Press ”Motor group” and the overview of the motor groups in the smoke ventilation panel is shown. Motor group configuration Motor groups are to be configured in: 1. Controlling smoke zones 2. Comfort open position 3. -
Page 37: Colour Code - Break Glass Unit
Break glass units are to be configured in: ‘All’ 1. Bus topology is ring - see text about “Topology” below The appendix contains all the items that can be configured - see appendix for detailed explanation. Configuration of ‘Topology’ The numbered break glass units 1. - Page 38 The smoke zone is to be configured in: 1. High temperature threshold 2. Target smoke zones 3. Target smoke zone function The appendix contains all the items that can be configured - see appendix for detailed explanation. Configuration of ’All’ The numbered smoke zones 1.
-
Page 39: Local Input
14.6 Local input The smoke control unit has always two inputs on the WSA 5PS module (input number S1 X2.1 and S1 X2.2). If further inputs are needed, insert the input/output module WSA 5IO. This module has eight local inputs. There can maximum be 26 inputs in a 20A section: 3 input/output modules each with eight inputs as well as the two inputs on the power supply module WSA 5PS. -
Page 40: Usage Of Wind/Rain Sensors - Wla 33X
Local inputs are to be configured in: Input X1 on WSA 5IO (smoke detector) If a smoke detector is connected in the local input X1 on the WSA 5IO module, it shall be configured in: 1. Input type: informs the type “smoke detector” (not to be configured) 2. -
Page 41: Local Output
Input shall be configured in: 1. In the motor groups configure the input with the function “Safety“. 2. Configure the motor groups when anything else than close (0%) is desired. Configuration of local input Usage of wind/rain sensors WLA 33x with smoke zones (SZ): The used input e.g. -
Page 42: Local Output - Configuration
Order of modules The input/output module is as standard inserted in slot 3 and if further modules (IO and/or motor modules) are added, the IO module is inserted before the motor module. Example Example: Smoke ventilation panel with 3 x IO modules 14.7.2 Local output - configuration If component are installed in one or more outputs, these outputs are to be configured. -
Page 43: Weather Station Type
14.8 Weather station type Here is to be selected which type of weather station – none, WOW or WLA – that is connected. (The menu “Weather station” is only used for input from WSA 5MC input S2X3.2. If WLA 340 is selected a wind speed (pulse) signal is received from the WLA 340. - Page 44 The function for the sequence control is to be configured for each motor line 1. None - This motor line does not use sequence control 2. Open - This motor line must wait for a “result” before opening 3. Close - This motor line must wait for a “result” before closing Sequence control configuration Sequence control configuration –...
-
Page 45: Magnetic Clamp (Magnetic Door Retainer)
14.10 Magnetic clamp (magnetic door retainer) Motor lines can be defined as magnetic clamps. Per section up to max. 6A can be used for magnetic clamps, the remaining 14A are reserved for motors. If a motor line is defined as magnetic clamp there will be power on the output as long as the panel is not triggered in fire condition. -
Page 46: Pyrotechnic Gas Generator
14.11 Pyrotechnic gas generator A pyrotechnic gas generator is a pyrotechnic detonator, which is now supported on the ±24 Volt motor line outputs on the WSA 5PS and WSA 5MS modules. Typical data: Resistor: 1.4 to 1.6 Ohm 100% no ignition: 180 mA / 5 min. DC 100% ignition: 600 mA / 10 ms (DC) Test current: max: 10 mA FlexiSmoke™... -
Page 47: Can Bus
Connection of relay 14.13 CAN bus More FlexiSmoke™ smoke ventilation panels can be connected via CAN bus. FlexiSmoke™ uses a special communication format, so the CAN bus from a FlexiSmoke™ must not be connected to other systems with CAN. IMPORTANT Each section that is connected with CAN shall for correct function be assigned with a unique 5MC ID. -
Page 48: Network
Master/slave connection of smoke zones A smoke zone can be master for up to 4 other smoke zones. Master/slave connections can be established hierarchically. A slave- smoke zone can only be connected to one master. Smoke Smoke MC-ID 1 zone 1 zone 2 Smoke Smoke... -
Page 49: Fieldbus
14.15 Fieldbus ”Module” The WSA 5MC module is available in different versions with different possible connection of a fieldbus for status and comfort operation. Note: Smoke ventilation function has higher priority than comfort commands from the field bus and it is recommended only to use field bus for comfort purposes. -
Page 50: Log In
Command options ® E.g. target position commands with different priority and MotorLink motor speed. See " WSC 5xx Protocol Implementation Conformance Statement (PICS)" on the home pages (www.windowmaster.com) for further information on available BACnet communication objects. Fieldbus link - "Conn. 1-13 " The BACnet has also 13 configurable binary communication objects. -
Page 51: Configuration Files On Sd
The user is at access level 2. To open for access level 3, enter the PIN for access level 3. The user is on access level 2 Enter PIN code. Enter PIN code The user is at access level 3. Access approved to login level 3 Login shall be configured in: The access levels can be locked and access to the level is only... -
Page 52: Configuration Files On Usb
Configuration files on SD Configuration files on SD overview. Configuration files on SD overview. Configuration of configurations file on SD – shown for no.1 Configuration of configurations file on SD – no.1 14.18 Configuration files on USB The panel has a plug in for an USB stick. It is possible to save all the configurations of the panel and this way save the stick as documentation. -
Page 53: System
14.19 System It is possible to change settings on the touch screen e.g. language, clock setting, date display, service timer etc. System can be configured in: 1. Language 2. Backup time stamp (not to be configured) 3. Unsaved changes… (not to be configured) 4. -
Page 54: Status - Main Menu
If you confirm the service timer by touching the touch screen, it will be mute for a week, before the beeping sound starts again. A maintenance icon will appear on the touch screen. Main overview when the service timer has been postponed Status –... -
Page 55: Configuration Missing - Main Menu
Smoke zones They can be operated in ‘Alarm’ or ‘Reset’ Example Manual operation of a motor line If ’All’ is selected all the motors are operated simultaneously. If a motor line number is selected only the selected motor line is operated. Motor line - overview Manual operation on the One motor line is selected... -
Page 56: Blown Fuse - 20A Fast
18.1.1 Blown fuse – 20A fast Additionally, an error on the ”Battery status” can also be triggered if the fuse (20A fast) is blown. The fuse is located behind the modules. To replace the fuse it is therefore necessary to remove the modules, see section 23.2 for replacement of modules. -
Page 57: View All Details - Main Menu
View all details – main menu To make the configuration of the smoke ventilation panel as simple as possible during configuration (see chapter 13), it is only possible to configure the most used functions. Under 'View all details' is displayed all of the above functions together with detailed functions that are not used as often, but are possible to configure. -
Page 58: Commissioning And Test Run
Start the ’WMaFlexiSmokeRemote’ program on the connected PC. Enter the IP-addressen and press ’Connect’. Screen shot from the PC when controlling the FlexiSmoke™ remotely Commissioning and test run In case of hardware error please see chapter 17 “The menu ‘Hardware error’” The break glass unit WSK 50x will only give an acoustic fault signal if the door on the break glass unit is closed or if the door contact on the break glass unit is pressed. -
Page 59: Smoke Detectors
22.6 Smoke detectors a) Spray test aerosol on the smoke detectors (aerosol item no. 9549). b) The actuators move open through to the end position. The red LED in the smoke detector, the red alarm LED (also in the smoke ventilation panel) and the permanent acoustic signal in the break glass unit are ON. c) Press the Reset/Closed button in the break glass unit - the actuators close through to the end position. -
Page 60: Replacement Modules
23.2 Replacement modules 23.2.1 Replacement of 5PS, 5IO, 5ML and 5SM modules 1. Disconnect the 230 V and the batteries. 2. Wait until the display has completely turned off before removing the module. 3. Insert the replacement module. 4. Turn on the 230 V and connect the batteries. 5.
