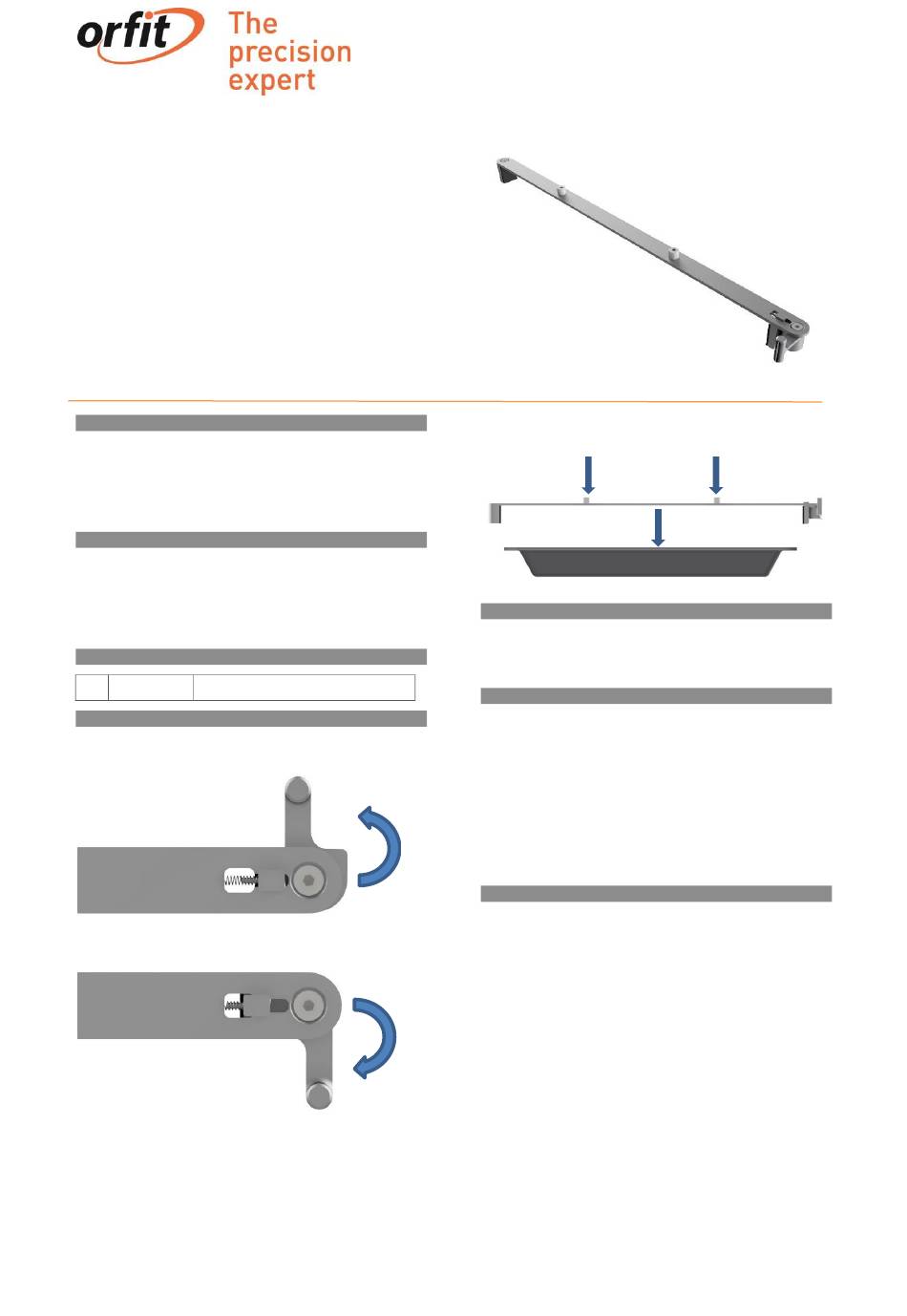

orfit RAYCAST 33109 Instructions For Use

RAYCAST® HIGH PRECISION
BASE PLATE-TO-COUCH
FIXATION DEVICES:
2-PIN BAR FOR 530 MM
WIDE NON-INDEXED
COUCHES
Article No. : 33109
A. GENERAL PRODUCT INFORMATION
This product is a fixation device to attach RAYCAST High
Precision base plates to non-indexed couch tops with a width of
53 cm. It can also be used to attach base plates to any other
couch top which is 53 cm wide although the base plate will not
be fixed in longitudinal direction.
B. PRODUCT DESCRIPTION
This 2-pin bar can be used to index hardware (base plates,
shoulder positioning device, leg indexing system, etc.) directly
or via an adapter plate to the couch. Information regarding
compatible products can be found in the respective

'instructions for use'.

C. PART LIST

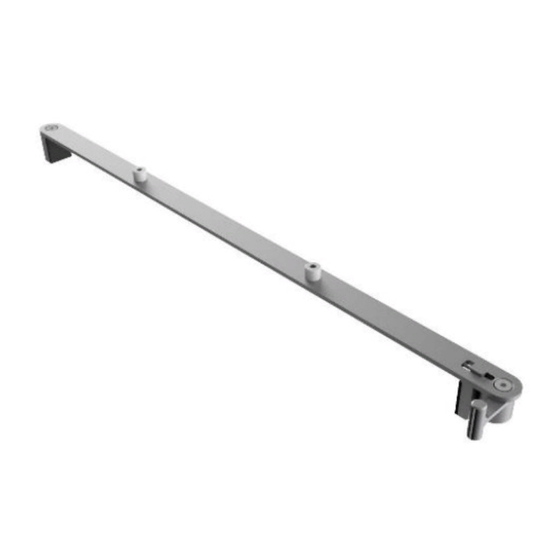

1x 33109 2-pin bar in aluminium
D. POSITIONING HARDWARE
To mount the 2-pin bar on the couch, first position the swivel as
shown on below picture.
Next position the 2 pin bar on the couch and lock by turning the
swivel 180° into locking position.
INSTRUCTIONS FOR USE
Orfit hardware is mounted on the 2-pin bar by simply pushing it
over the 2 middle indexing pins.
E. STORAGE
Always store the product in a safe place to prevent it from
getting damaged.
Store the product between +10°C (50°F) and 40°C (122°F).
F. PROPERTIES
Physical Properties
Dimensions : L 589 mm x W 51,5 mm x H 44,5 mm
Weight: 0.16 kg
Material Properties
Aluminium (blocks/swivel/bar):
Titanium (screws):
Polycarbonate (screws):
unlock
Polyoxymethylene (pins):
Rubber (friction blocks):
G. MAINTENANCE AND WASTE MANAGEMENT
This product can be cleaned and disinfected by means of soapy
water or an isopropanol based disinfectant, applied with a soft
cloth. If unsure about the cleaning fluid, do not use. Never use
aerosol sprays, corrosive cleaning agents, solvents or abrasive
detergents.
Periodic checks of the product should be done to insure the
parts are not worn and require repair or replacement. Do not
attempt to make repairs yourself. Contact your distributor if
lock
there are any questions or concerns.
The product can be disposed of with household waste.
