DYNASYST
TM
GENERAL PRODUCT INFORMATION
A.

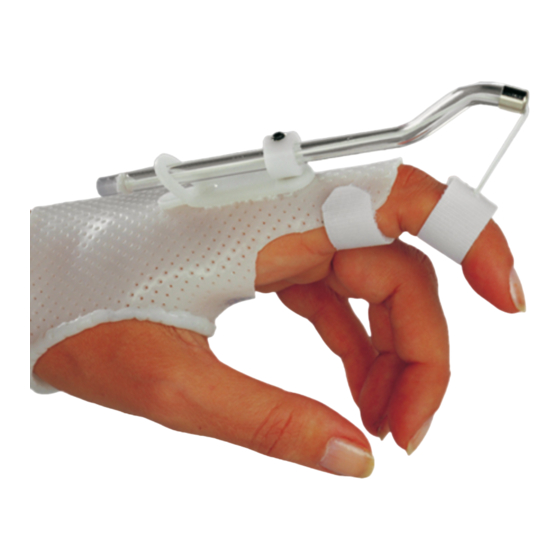

The ORFITUBE ADJUSTER is a structural unit for
placing onto a hand orthosis, in order to give the
orthosis added adjustable and dynamic action. The
dynamic orthosis can be defined as 'outrigger with
rubber band' type.
The outrigger is adjustable, as biomechanical clues
may change over time.
B. PRODUCT SUMMARY
Art. N°
Description
35305
5x
single ORFITUBE ADJUSTER
5x
ORFITUBE
5x
ORFITUBE END
1x
bending rod
1x
ORFITUBE ADJUSTER - SET
INSTRUCTIONS FOR USE
1x
allen wrench
ORFITUBE
ADJUSTER KIT
TM
INSTRUCTIONS FOR USE

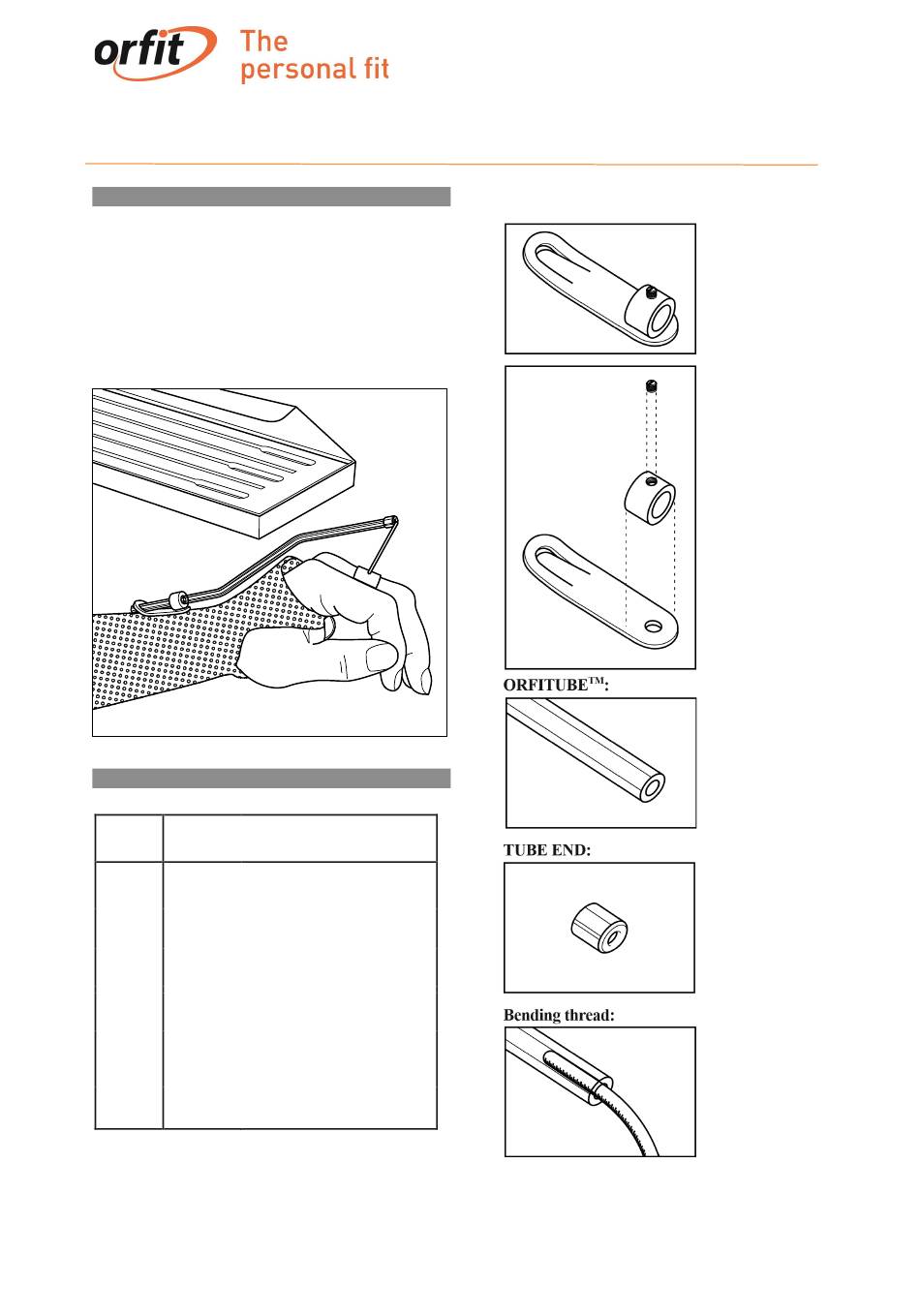

SINGLE ORFITUBE ADJUSTER:
Page 1 of 4
Adjusting screw
(stainless steel):
Secures the position of
the ORFITUBE in the
adjusting ring.
Adjusting ring
(Polyacetal): Holds and
allows alterations of
the ORFITUBE.
Fixation plate (ORFIT):
fastens and stabilises
the ADJUSTER to an
orthosis.
Tube (polycarbonate)
into which a braided
elastic or extension
spring is introduced,
provides a spatial
suspension point for
the finger.
Metal cap (nickel-
coated brass) with
rounded edges, to
reduce friction of the
elastic.
Synthetic thread used
to prevent kinks from
arising when the
ORFITUBE is shaped.
Advertisement
Related Manuals for orfit DYNASYST ORFITUBE
Summary of Contents for orfit DYNASYST ORFITUBE
- Page 1 The outrigger is adjustable, as biomechanical clues adjusting ring. may change over time. Adjusting ring (Polyacetal): Holds and allows alterations of the ORFITUBE. Fixation plate (ORFIT): fastens and stabilises the ADJUSTER to an orthosis. Tube (polycarbonate) into which a braided elastic or extension...
- Page 2 C. APPLICATION TECHNIQUE Put a basic orthosis on the patient. Determine in which plane the suspension point needs to be adjustable (A). Bend the ORFITUBE to the desired angle. Find a location on the orthosis that is ± parallel to this plane (A’). Remove the bending rod from the angle and if necessary make additional bends to end up in the adjusting plane again.
- Page 3 After heating, the ADJUSTER can be adhered to the following orthotic fabrication materials: A:All Orfit splinting material, in case of an NS product scratch the surface with scissors to ensure adhesion B: it is possible to attach the ORFITUBE...
- Page 4 +30°C / + 95°F It is not possible to sterilize an ORFITUBE ADJUSTER in Note: It is prohibited to make alterations to this text without prior approval from Orfit Industries. DYNASYST™ and ORFITUBE™ ADJUSTER KIT are trademarks from ORFIT INDUSTRIES N.V. www.orfit.com Ref.
