Wigersma & Sikkema UNICOM 300 Installation Manual

Installation manual standard/external antenna
UNICOM 300 comes standard with the PulseLARSEN antenna, unless otherwise agreed.
If the signal strength is not sufficient, UNICOM 300 can be equipped with an external antenna.
Wigersma & Sikkema has selected two external omni directional antennas that can be used.
These are available with two lengths of cable: 5 and 10 meters. See the table below.
The antennas are supplied with mounting material and grommet for sealing.
This manual only discusses installation of an external antenna. Read the corresponding UNICOM 300
manual before installing UNICOM 300 and put into use.

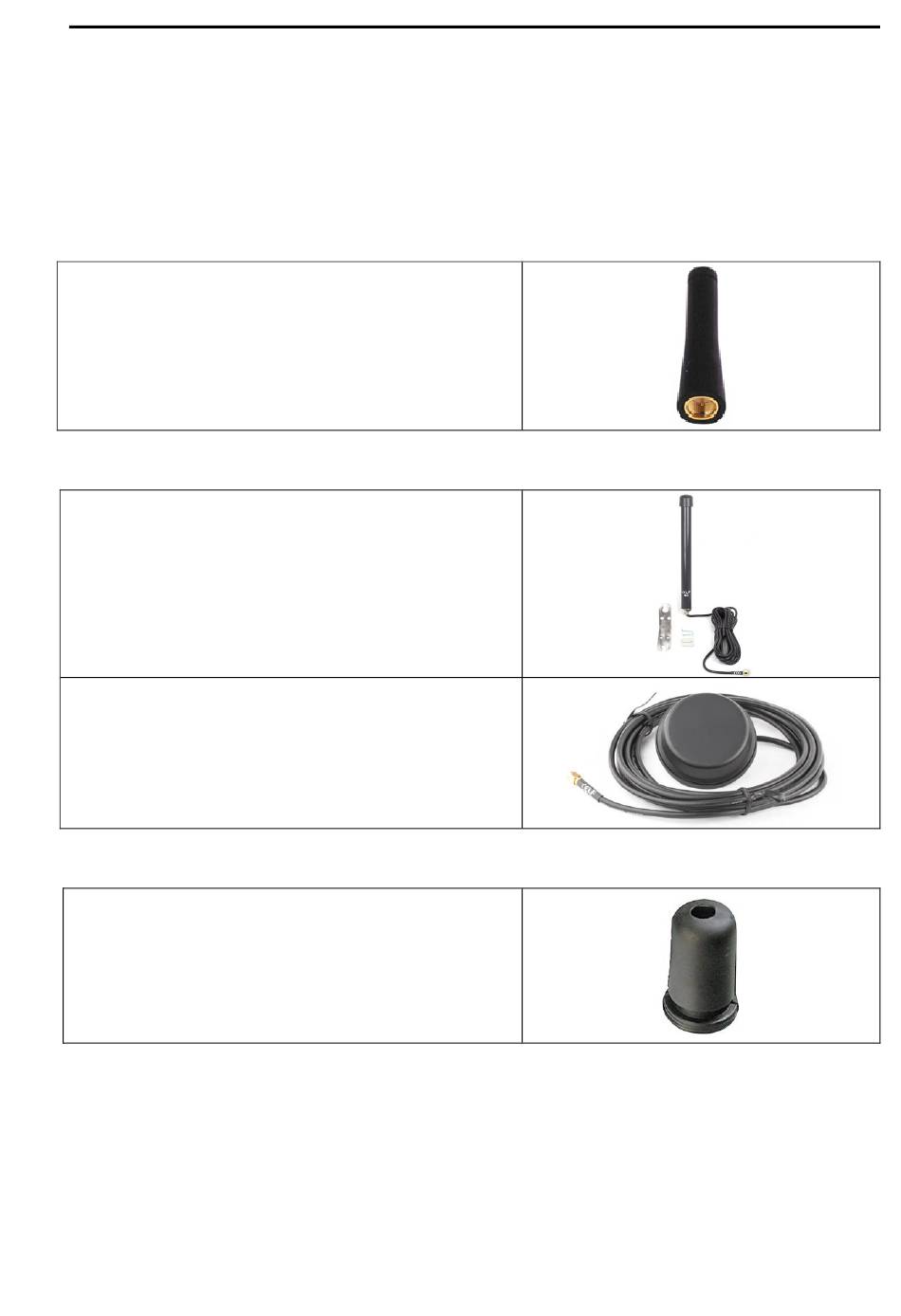

Standard antenne
Order number : NN2753
Cable length : n.v.t.
Frequencies : 850/900/1800/1900/2100 MHz
Gain : 1 dBi @ 824 – 960 MHz
2 dBi @ 1710 – 2170 MHz
Height : 50 mm
Omni directional antennas
Order number 5 m CELF200 cable: N2755
Order number 10 m CELF200 cable: N2756
Frequencies : 800/868/900/1800/2100/2600 MHz
Gain: : 2 dBi @ 700 - 960 MHz
3,32 to 4,64 dBi @ 1700 - 2700 MHz
Height (approx.) : 240 mm
Order number 5 m CELF200 cable: N2750
Order number 10 m CELF200 cable: N2751
Frequencies : 800/868/900/1800/2100/2600 MHz
Gain : 0-3 dBi (frequency dependent)
Dimensions : round 78.8mm, Height 21.3mm
Total height 34.5mm
Grommet
Order number: NN2754
Grommet is supplied mounted on the cable.
DDN003MHEN/10-2018/Rev.A1
