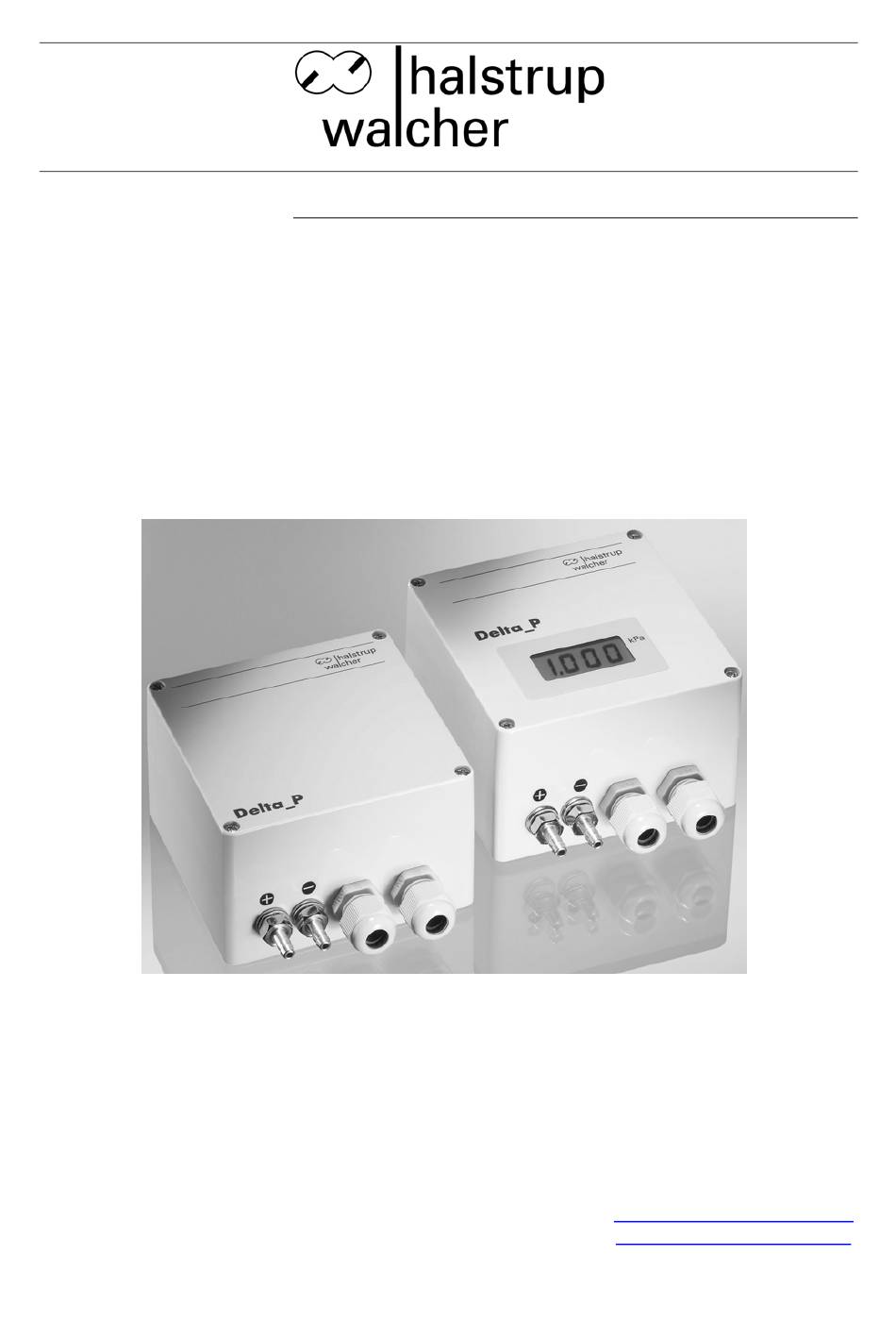

- Page 1 Instruction Manual P82R Differential Pressure Transducer with Root- Extracted Characteristic Curve halstrup-walcher GmbH Stegener Straße 10 D-79199 Kirchzarten Germany Phone: +49 (0) 76 61/39 63–0 Fax: +49 (0) 76 61/39 63–99 E-Mail: info@halstrup-walcher.com Internet: www.halstrup-walcher.com Document 7100.003244 Version 1.0 09/2005...
-
Page 2: Table Of Contents
P82R Instruction Manual Table of Contents Safety precautions ......................4 1.1 Appropriate use........................ 4 1.2 Shipping, assembly, electrical connections and start-up ..........4 1.3 Troubleshooting, maintenance, repairs, disposal ............4 1.4 Symbols ........................... 5 Instrument description ....................... 6 Start-up..........................6 3.1 Features......................... - Page 3 P82R Instruction Manual Purpose of instruction manual This instruction manual describes the features of the P82R differential pressure transducer and provides guidelines for its use. Improper use of this instrument or failure to follow these instructions may cause injury or equipment damage. Every person who uses the device must therefore read the manual and understand the possible risks.
-
Page 4: Safety Precautions
P82R Instruction Manual Safety precautions 1.1 Appropriate use In addition to differential pressure data, the P82R differential pressure transducer also records positive and negative overpressures. Always observe the operating requirements—particularly the permissible supply voltage—indicated on the rating plate and in the "Technical data" section of this manual. -
Page 5: Symbols
P82R Instruction Manual The electronic components of the instrument contain environmentally hazardous materials and materials that can be reused. For this reason the instrument must be recycled in accordance with the environmental guidelines of the jurisdiction in question once it has been taken permanently out of service. -
Page 6: Instrument Description
Start-up Features Although the P82R pressure transducer is highly robust, it is nevertheless a precision instrument and should be handled with care. Avoid mounting the instrument in the direct vicinity of any sources of radiation or heat, such as heaters, as this could result in measurement errors. -
Page 7: Instrument Connections
P82R Instruction Manual Instrument connections Fig. 1 (not all components are shown) Terminal Supply voltage Terminal Analog output 0...10 V 24/115/230 VAC 50/60 Hz ground (GND) 24/115/230 VAC 50/60 Hz ground (GND) 0...20 mA / 4...20 mA +20.5 V...28.5 VDC... -
Page 8: Output Signals
P82R Instruction Manual Observe the required supply voltage (see rating plate) and the connection diagram located on the housing cover. The transducer outputs are protected from short circuits. Instruments supplied with direct current are also protected from reverse polarity. Connecting the supply voltage to the outputs will destroy the transducer. -
Page 9: Calibrating The Zero Point
P82R Instruction Manual Please note: The LCD will not display the correct value when repositioning the S1 switch (from root-extracted to linear). Calibrating the zero point Please remember that it takes roughly 30 to 60 minutes for the pressure transducer to warm up after it is switched on. The output signal may not remain stable during this period. -
Page 10: Troubleshooting
P82R Instruction Manual Troubleshooting Error Description Potential Cause Corrective Action • supply voltage is not • connect correct supply voltage no output signal connected • connect the correct supply voltage • incorrect supply voltage (see rating plate). • defective fuse •... -
Page 11: Technical Data
P82R Instruction Manual Technical data Measurement data measurement ranges 0…100 Pa to 0…20 kPa (others available upon request) overload capacity 5 x the final value of the measurement range hysteresis <0.1 % of the starting range warm-up period approx. 30 min. - Page 12 P82R Instruction Manual orientation is required) dimensions (w x h x d) 120 x 122 x 75 mm protection class IP54 weight 0.8 kg options • 3½-place LCD • 4½-place LCD • linearity protocol • DKD calibration certificate • output signal attenuation up to 5 s •...
-
Page 13: Dimension Drawings
P82R Instruction Manual Dimension drawings Option LCD 7100.0003244_P82R_eng.doc 12.09.2005 ka/Ze...
